Solar Powered 3G Emergency Roadside Call Systems, Cordless Remote Management VoIP Highway SOS Call Box

Supplier: J&R Technology Limited (Shenzhen)
Region: Guangdong, China
Contact: Mr Jrteck DFJK
Price: $799.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Version:	SIP/VoIP, GSM/3G;	Certification:	CE, FCC, RoHS, ISO9001;
Communication Type:	Full duplex;	Weather proof protection:	IP65-IP67;
Packaging Detail:	Unit size: 2400 436 306 (mm) Packaging materials: Pearl cotton, Wooden Box Net weight: 45 KG Gross weight: 50 KG;	Payment Terms:	L/C,T/T,paypal;
Port:	Shenzhen;	Supply Ability:	3000 Unit/Units per Month;
Place of Origin:	Guangdong China;	OEM&ODM:	Support;
Color:	Orange, or optinal;	Material:	Aluminum alloy die-casting Phone body, Cold Rolled Steel for pillar;
Power supply:	Solar Powered or 12V DC Power Supply;	Warranty:	2 Years;
Brand Name:	J&R;	Operating temperature:	-40°C to +70°C;
Model Number:	JR-TP-04;

JR-TP-04

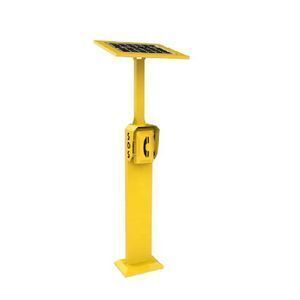

Solar Powered 3G Emergency Roadside Call Systems, Cordless Remote Management GSM Highway SOS Call Box

Product Description

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

Main Features of Solar Powered 3G Emergency Roadside Call Systems, Cordless Remote Management GSM Highway SOS Call Box

l Standard GSM/3G phone or SIP phone

l Aluminum alloy die-casting body for phone, and cold rolled steel for pillar

l Weather resistant: IP65-IP67

l Hands free operation

l Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone

l Vandal resistant metal button programmable for speed dial

l Support message function for low battery, door opening & low signal strength.

l Pole mounting, simple installation

l Standard or Customized units

l External power supply or PoE (SIP-VoIP)

l RJ45 port for SIP phone

l Supplied with 12V DC Power Supply or solar powered

l Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.

l CE, FCC, RoHS, ISO9001 compliant

OPTIONS

• Rechargeable battery

• Solar panel

• Solar charge cotroller

• Customized length of external antenna and cable

Technical Parameters

Solar Powered 3G Emergency Roadside Call Systems, Cordless Remote Management GSM Highway SOS Call Box

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

3G Version
Power Supply		12V DC
Power Consumption		-Idle:0.3W -Active: 1.5W
Communication Type		Full duplex
Ringer volume		90~95dB(A) at a distance of 1 m
Program Method		Remote programming by SMS
Frequency	A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Applications

Solar Powered 3G Emergency Roadside Call Systems, Cordless Remote Management GSM Highway SOS Call Box

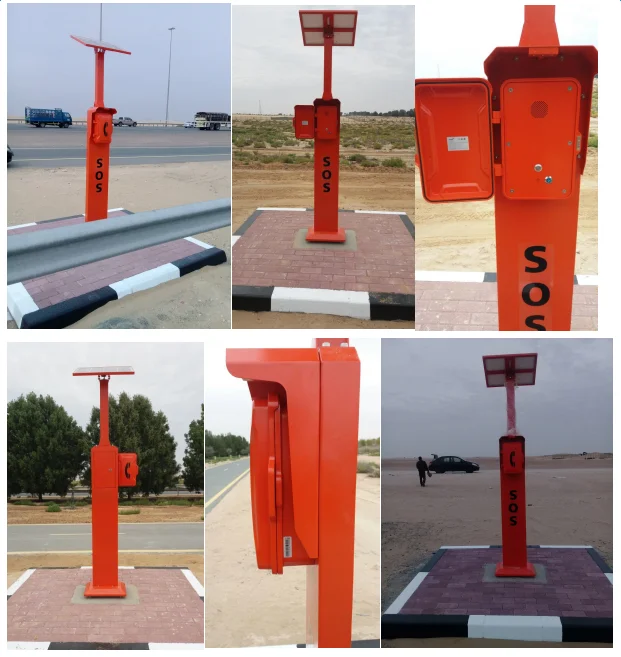

Ideal for roadside, parking lots, campus, school, motorway, highway, railway, outside building, civil construction sites, bus or rail stations, anywhere that laying cable is prohibitive.

Certifications

Our Services

1. ODM & OEM products or solutions

2. Sample order is greatly welcomed.

3. We will reply your inquiry within 12 hours

4. Update the productive process and show the packing details

5. After delivered the goods, we will track the products for you once every two days, until you get the products. When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.

Packaging & Shipping

Solar Powered 3G Emergency Roadside Call Systems, Cordless Remote Management GSM Highway SOS Call Box

PACKAGE

Unit size: 2400 *436 *306 (mm)

Packaging materials: Pearl cotton, Wooden Box

Net weight: 45 KG

Gross weight: 50 KG

Shipping:

Company Information

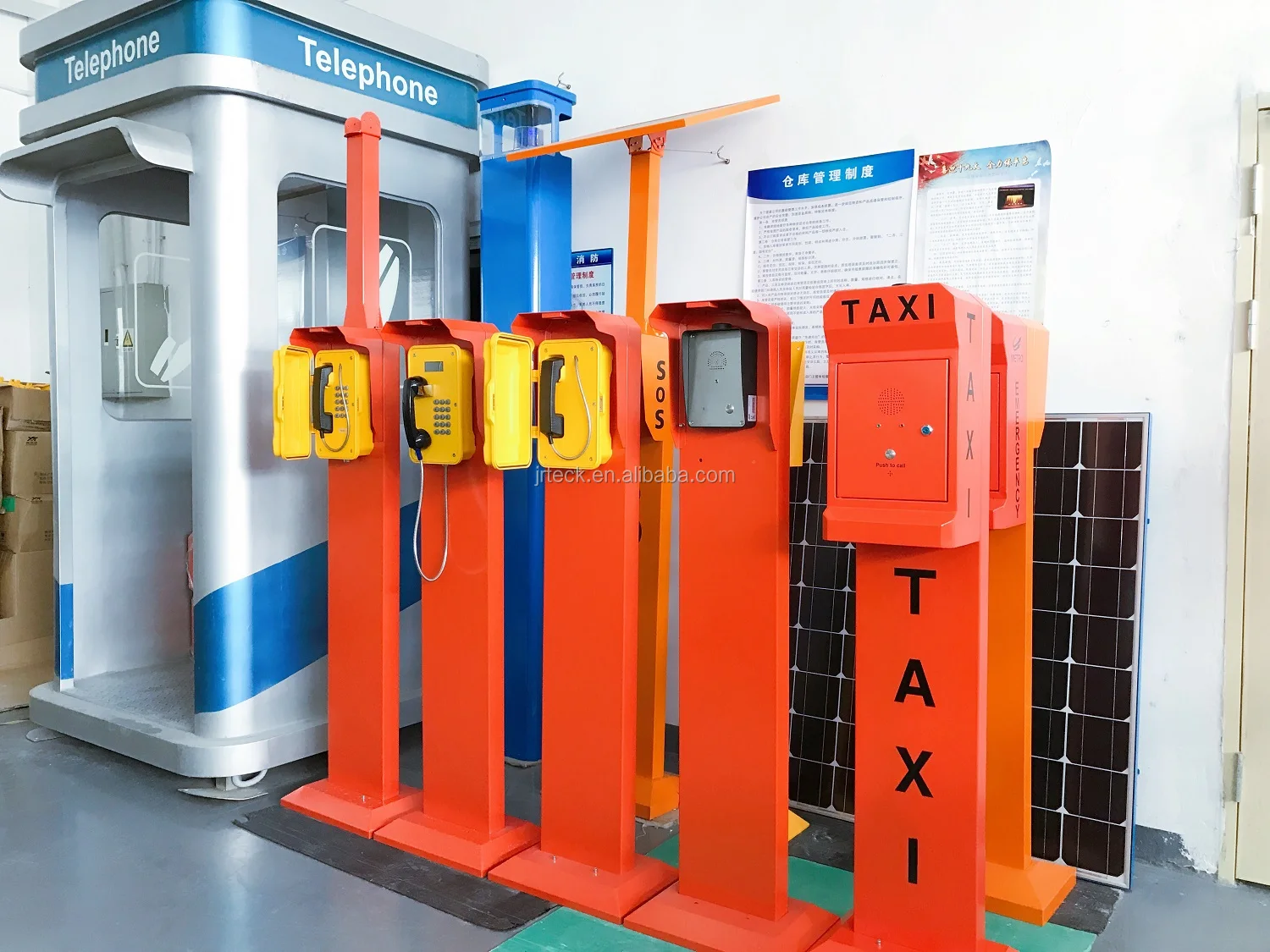

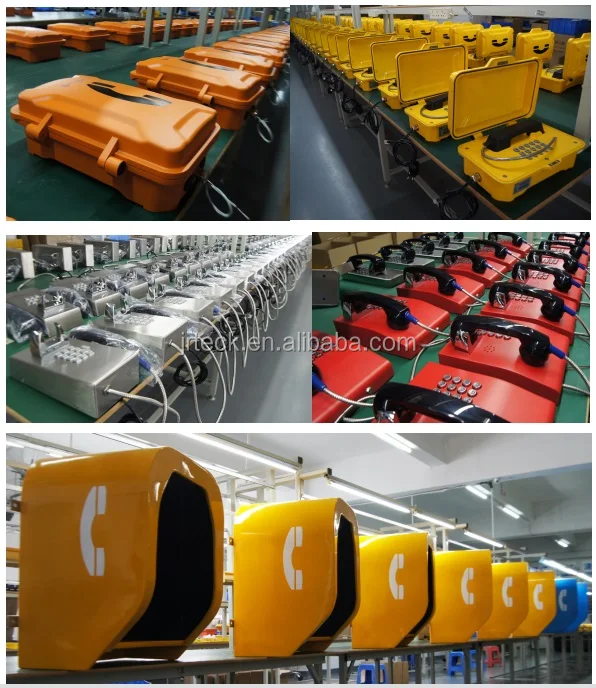

J&R Technology Ltd is a manufacturing and trading combo for industrial telephones in China, with more than 10 years full experience and a professional sales team. Our main products are weatherproof telephones, explosion proof telephones, emergency telephones, prison phone, elevator telephone, vandal resistant telephones, acoustic phone booth and telephone accessories. All of our telephones are available in Analog, SIP/VoIP, GSM/3G versions. We can also tailor our solution to meet your specific business needs.

As a reliable supplier of different kinds of industrial phones, we have been sharing the equipment and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.

Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions and systems.

Choose J&R technology, choose reliable talks.
