High Pressure small Industrial wood fired steam boiler
-
Supplier: Linyi Shengyang Wood-Based Panel Machinery Factory -
Region: Shandong, China -
Contact: Mr Toby Liu -
Price: $3000.00 /set -
Min. Order: 1 set
| Supply Ability: | 20 Set/Sets per Month High Pressure small Industrial wood fired steam boiler; | Type: | Natural Circulation; |
| Weight: | 15T; | Dimension(L*W*H): | Dia.3000; |
| Payment Terms: | L/C,T/T,Western Union; | Thermal efficient: | 90%; |
| Output: | Steam; | Style: | Horizontal; |
| Highest tem: | 350; | Name: | High Pressure small Industrial wood fired steam boiler; |
| Structure: | Fire Tube; | Fuel: | Coal-fired; |
| Pressure: | High Pressure; | Brand Name: | Shengyang; |
| Place of Origin: | Shandong China; | Condition: | New; |
| Usage: | Industrial; | Port: | Qingdao or Lianyungang; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Design pressure: | 1.0; |
| Warranty: | 1 year; | Packaging Detail: | simple packing for High Pressure small Industrial wood fired steam boiler; |
| Certification: | ISO9001; |
High Pressure small Industrial wood fired steam boiler
Boiler for plywood hot press machine
Shengyang oil boiler is equipmented with the whole plywood production line, particle board production line and the osb production line.
Feature:
1. High temperature in a low pressure
2. Stable heat system
3. Easily temperature control.
4. High heat efficient
5. Excellent operation control system
6. Safe monitor device
7. Less water, electricity, production cost
| Application of thermal oil industrial heating boiler: | |
| Chemical: | polymerization, condensation, distillation, concentration, evaporation, fusion |
| Fat: | decomposition, deodorization, distillation of aliphatic acid, heating, hydrogenation,esterification. |
| Petrochemical: | rectification, heating, thermal insulation |
| Plastic&Rubber: | hot-press, calender, extrusion, vulcanization molding, artical leather manufacture |
| Textile staining: | heat setting, dry, curing |
| Fiber: | polymerization, fusion, mould pressing, thermosetting, extension, dry |
| Carbon: | bitumen fusion, dripping, mixing,molding |
| Wood: | veneer, MDPE,HDPE,lamination flooring,birch hot-pressing, drying |
| Metal: | pickling, electroplate, coating, oil bath, heat-treatmen |
| Coating: | basting and drying, vehicle, plane, hot forming, hyperthermia bonding, drying |
| Construction: | highway hitumen, dissolving, thermal insulation |
| Cement: | fuel heating |
| Electric: | resin impregnation, melting&holding |
| Air-condition: | radiant heating |
| Others: | different application of high temperature heat source below 350°C. |
Technique data:
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw (1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the difference of boiler type.
Fuel
Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust,
coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.
Burning system
Coal-fired
Fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal
grate system, travelling grate system.
Oil-fired
Mechanical atomization system, rotary cup atomization system, set cup atomization
system, steam atomization system, air atomization system.
Gas-fired
Fuel gas filter, pressure switch, Gas pressure regulator, leak detection pump,
solenoid valve

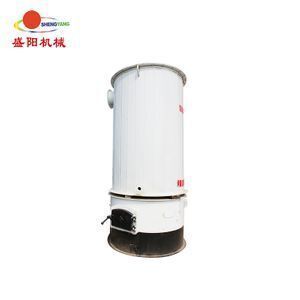

Introduction of this boil machine
Shengyang oil boiler
Introduction of organic heat transfer media heating boiler
Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Process feature: low pressure and high temperature
Product feature:
1. High temperature in a low pressure
2. Stable heat system
3. Easily temperature control.
3. High heat efficient
4. Excellent operation control system
5. Safe monitor device
6. Less water, electricity, production cost
Technique data
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw (1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the difference of boiler type.
Fuel
Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust, coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.
Burning system
Coal-fired
Fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal grate system, travelling grate system.
Oil-fired
Mechanical atomization system, rotary cup atomization system, set cup atomization system, steam atomization system, air atomization system.
Gas-fired
Fuel gas filter, pressure switch, Gas pressure regulator, leak detection pump, solenoid valve.
Application of thermal oil industrial heating boiler:
Chemical: polymerization, condensation, distillation, concentration, evaporation, fusion
Fat: decomposition, deodorization, distillation of aliphatic acid, heating, hydrogenation,
esterification.
Petrochemical: rectification, heating, thermal insulation
Plastic&Rubber: hot-press, calender, extrusion, vulcanization molding, artical leather manufacture
Textile staining: heat setting, dry, curing
Fiber: polymerization, fusion, mould pressing, thermosetting, extension, dry
Carbon: bitumen fusion, dripping, mixing,molding
Wood: veneer, MDPE,HDPE,lamination flooring,birch hot-pressing, drying
Metal: pickling, electroplate, coating, oil bath, heat-treatmen
Coating: basting and drying, vehicle, plane, hot forming, hyperthermia bonding, drying
Construction: highway hitumen, dissolving, thermal insulation
Cement: fuel heating
Electric: resin impregnation, melting&holding
Air-condition: radiant heating
Others: different application of high temperature heat source below 350°C.
1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.
2. How can we trust your factory?
We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.
3.Why does the price often change?
The price depends on the latest prices of the raw materials.
4. What about the contract signing?
If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.
5. How about delivery?
when the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
-
