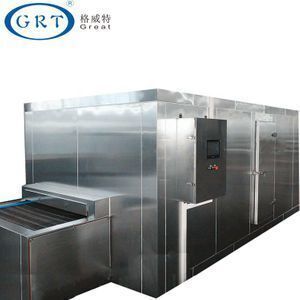

1000 kg iqf tunnel freezer for fruit
-
Supplier: Zhengzhou Great Machinery Equipment Co., Ltd. -
Region: Henan, China -
Contact: Ms Victoria Hoo -
Price: $5000.00 /set -
Min. Order: 1 set
| Material: | Stainless Steel; | Power(W): | according to customization; |
| Voltage: | 380V, can be customized; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Application: | Frozen Food; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Food Shop,Food & Beverage Shops; |
| Capacity: | Clients' Requirements; | Condition: | New; |
| Brand Name: | GRT; | Function: | Individual Quick Freezing; |
| Product name: | IQF Tunnel Quick Freezer; | Place of Origin: | Henan China; |
| Dimension(L*W*H): | according to customization; | Cooling Capacity: | 500~2000kg, can be customized; |
| Port: | Shanghai, Qingdao; | Supply Ability: | 10 Set/Sets per Week; |
| Warranty: | 1 year; | Type: | Tunnel Freezer; |
| Weight: | according to customization; | After-sales Service Provided: | Free spare parts; |

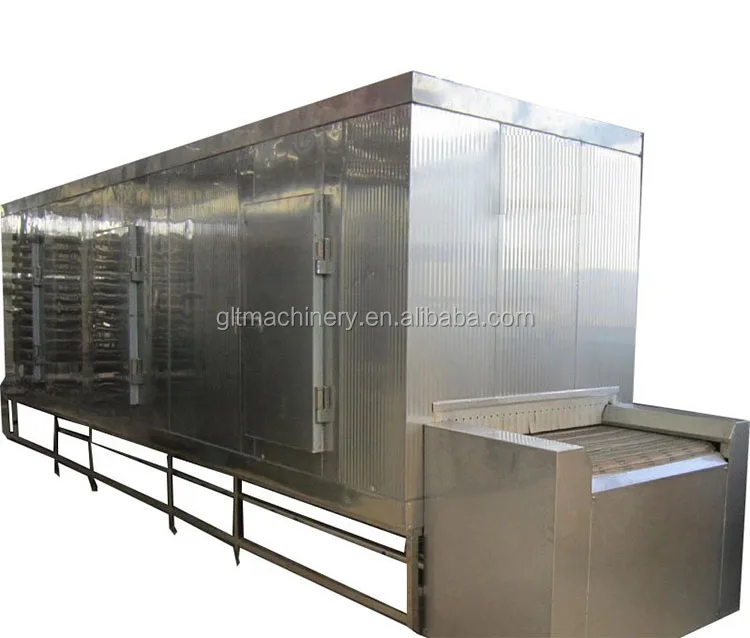

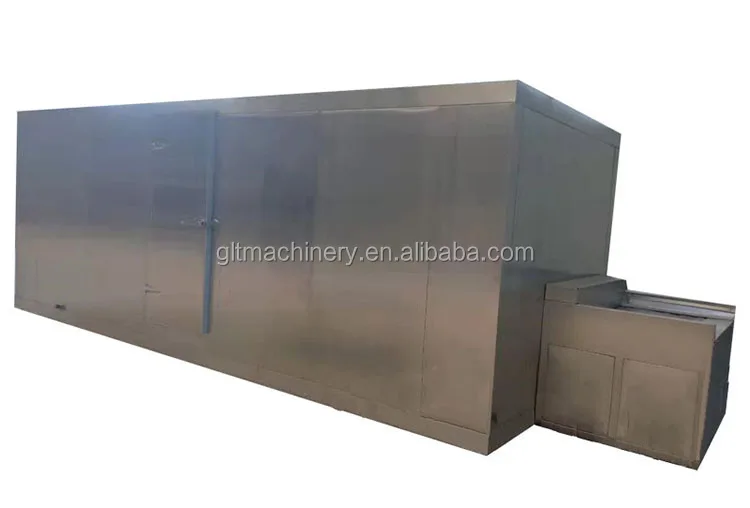

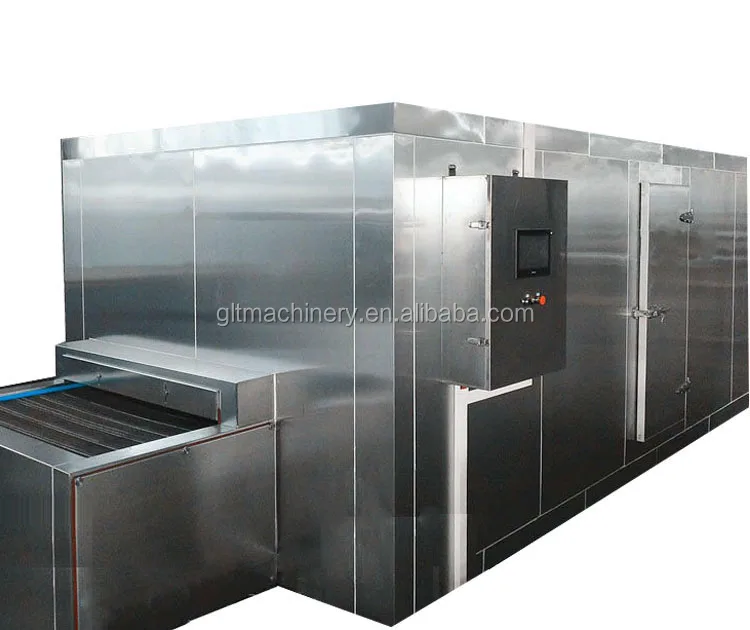

Small mini iqf tunnel freezer
Tunnel freezers have been used in large scale production lines for decades. The base design of the air based tunnel freezer has stayed, for the most part, un-changed. With the main concept of it still being inputting the product in one side and extracting the frozen product at the end. This process allows business to continue freezing for a long period of time with the use of overall less labor in the process compared to regular batch style freezers.
| Model | GRT-SDJ-500 | GRT-SDJ-1000 | GRT-SDJ-1500 | GRT-SDJ-2000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 |
| Freezing time(min) | 9~60 | |||
| Feeding temperature (degrees Celsius) | 15 | |||
| Discharge temperature (degrees Celsius) | -18 | |||
| Freezing temperature (degrees Celsius) | -35~40 | |||
| Refrigerant | R717, R22 | |||
| Cold consumption(kw) | 95 | 185 | 265 | 345 |
| Mesh belt width(mm) | 1000 | 1200 | 1500 | 1500 |
| Dimension(m) | 8.0*3.5*3.0 | 11.0*4.0*3.0 | 15.0*4.0*3.0 | 18.5*4.4*3.0 |
Please note:
This machine is customized according to client's requirements. Above info is just for reference.
Pre-sales Service
-Inquiry and consulting support within 24 hours.
-Sample testing support, testing video guildance.
-View our Factory.
After-sales Service
-Training how to instal the machine, training how to use the machine.
-One year warranty for repairing replaceing and returning.
-Engineers available to service machinery overseas.
-
