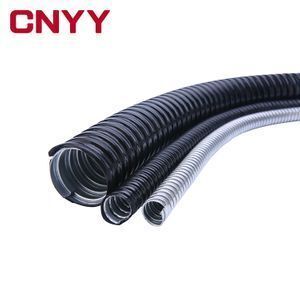

Plastic Coated Metal Flexible Pipe PVC Coated Galvanized Metal Corrugated Conduit

Supplier: Zhejiang Yuanyang Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Cyril Ye
Price: $0.20 /meter
Min. Order: 1 meter

Click here to contact

Product details

Certification:	RoHS,CE,ISO:9001;	Payment Terms:	T/T,Western Union,MoneyGram;

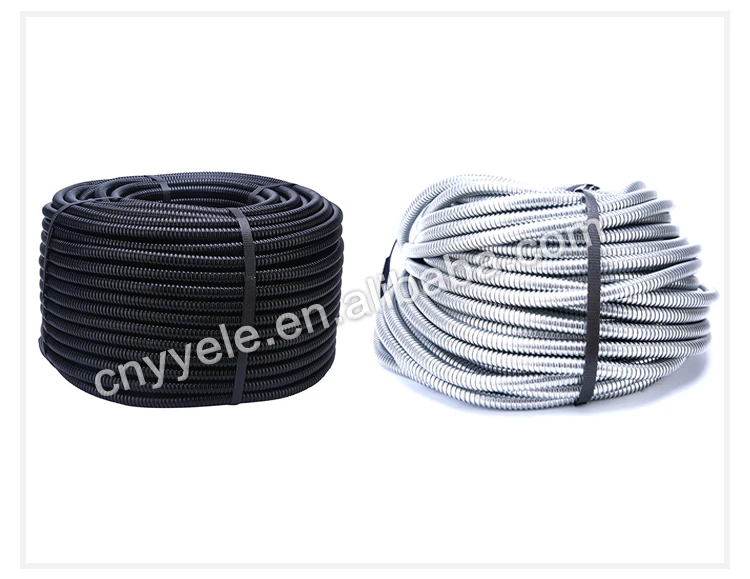

Packaging Detail:	100mts/roll,50mts/roll,20mts/roll;	Outer diameter:	9±0.25mm~109±3.0mm;
Color:	Black,Light grey,other colors can be customized;	Size:	6mm--100mm;
Model Number:	CNYY-JSB;	Usage:	electric wires and cable protection;
Temperature Range:	-10°C~80°C, instantaneously can be 100℃;	Port:	Ningbo, Shanghai;
Material:	PVC+Steel;	Place of Origin:	Zhejiang China (Mainland);
Type:	Flexible;	Meterial:	PVC+Galvanized steel band;
Max axial strain:	335kg~4700kg;	Brand Name:	CNYY;
Natural curve:	40mm~410mm;	Supply Ability:	500000 Meter/Meters per Month;
Thickness:	as required;

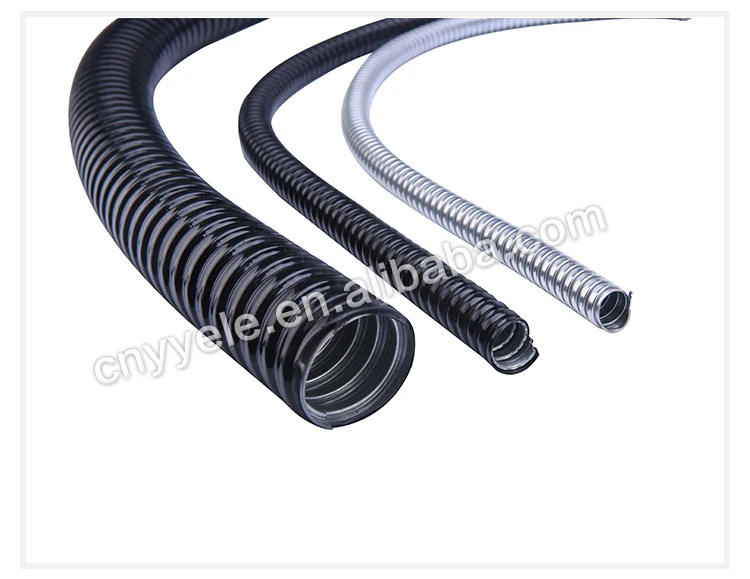

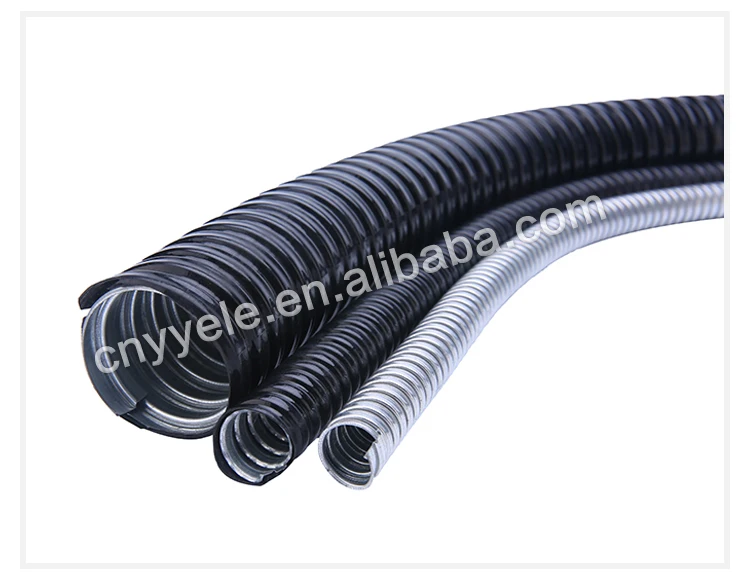

Product Name	Plastic PVC Coated Metal Flexible Corrugated Pipe

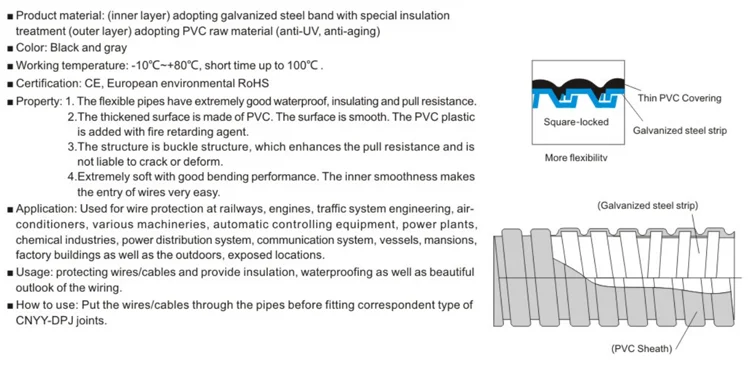

Material	PVC+Galvanized steel band (inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging)
Color	Black,Light Grey,othercolor can be Customized
Standard	ROHS,CE,ISO:9001,
Size	6mm--100mm
Brade	CNYY
Usage	Protecting wires and cables in order to provide insulation, waterproof as well as beautiful outlook of the wires and cables.

Specifications

Items NO.	Size Metric (mm)	G System	Outer Diameter (mm)	Natural Curve (mm)	Max. Axial Pull (kg)	Packaging Unit (Mts)
CNYY-JSB06	Φ6	3/16"	9.00 ± 0.25	40	335	100
CNYY-JSB08	Φ8	1/4	11.8 ± 0.30	45	470	100
CNYY-JSB10	Φ10	5/16"	14.5 ± 0.30	55	590	100
CNYY-JSB12	Φ12	-	16.5 ± 0.35	60	710	100
CNYY-JSB13	Φ13	3/8"	17.5 ± 0.35	65	765	100
CNYY-JSB14	Φ14	-	20.2 ± 0.35	80	885	100
CNYY-JSB16	Φ16	1/2"	21.2 ± 0.35	85	940	100
CNYY-JSB19	Φ19	-	24.5 ± 0.40	95	1120	100
CNYY-JSB20	Φ20	3/4"	25.5 ± 0.40	100	1180	100
CNYY-JSB25	Φ25	1"	31.7 ± 0.45	120	1450	50
CNYY-JSB32	Φ32	1 1/4"	39.6 ± 0.50	150	1825	50
CNYY-JSB38	Φ38	1 1/2"	46.6 ± 0.60	180	2240	50
CNYY-JSB51	Φ51	2	59.5 ± 1.00	220	3000	20
CNYY-JSB64	Φ64	2 1/2"	73.5 ± 1.50	310	3770	20
CNYY-JSB75	Φ75	3"	84.5 ± 2.00	350	4405	20
CNYY-JSB100	Φ100	4"	109.0 ± 3.0	410	4700	20

If you need any specifications, please contact us, we will give you the best offer.

FAQ

How and how long can I get a sample to check your quality? Can I expect to get the sample?
After price confirmation, you can require for samples to check our quality. Then after you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

Can you do the design for us?
Yes. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.

What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 100,000 m within a week. Generally speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country.

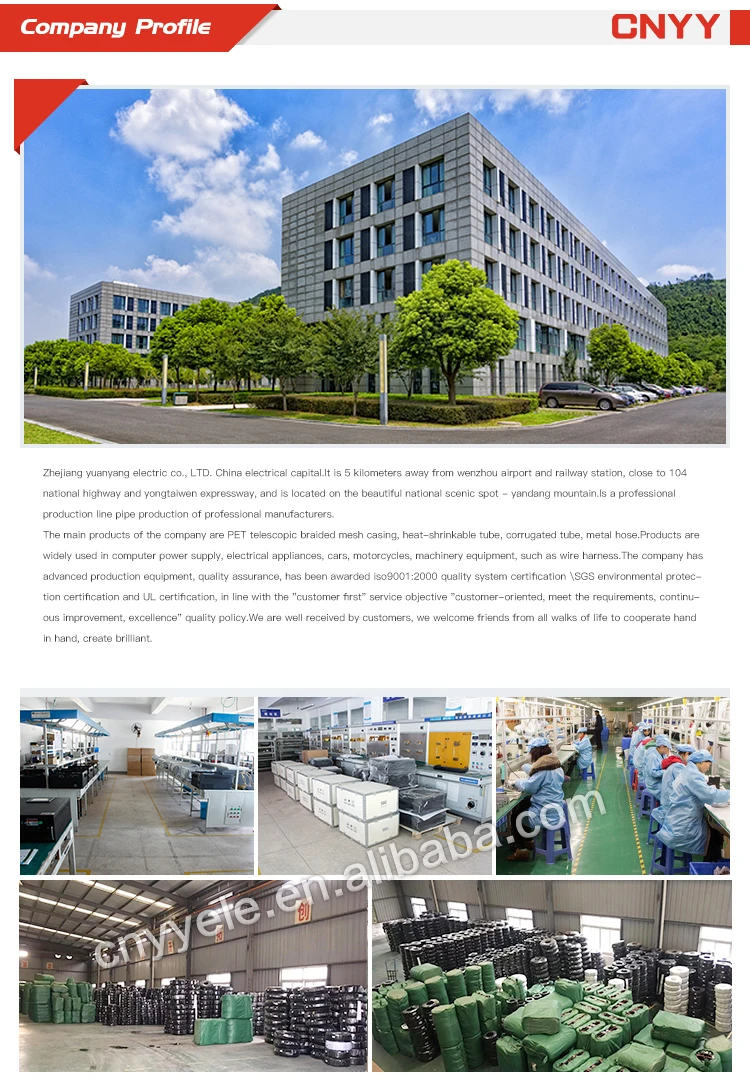

Can I have a visit to your factory before the order?
Welcome! Our factory address: No.89,Feihuang west road,XiRenDang Industrial Zone,LiuShi Town,YueQing city,Zhejiang Province,China (Mainland)

Why choose us?
1. more than 100 companys make OEM,ODM order from us
2. Technical support- We have one group of technical team which can develop and design the product according to the requirements of customers.
3. Certification -We have passed ISO9001:2008 Quality Management System and CCC, CE
