Power: | Electronic; | Color: | grey; |
Standard: | ASTM A370, ISO6892, ISO7500-1, EN 10002-4; | Model Number: | WDW-50 WDW-100 WDW-200 WDW-300; |
Packaging Detail: | Plywood case, Tensile Strength Testing Machine; | Place of Origin: | Shandong China; |
Model: | WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300; | Power supply: | AC220V 10% 50HZ; |
types: | Tensile Test, Compression Test, Bending Test etc.; | material: | Metal, Steel, rubber, plastic,cable; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Product name: | Electromechanical Universal Testing machine; |
Warranty: | 12 Months; | Max Load capacity: | 10kN, 20kN, 50kN, 100kN, 200kN, 300kN; |
Brand Name: | VTS; | Certificate: | CE, ISO; |

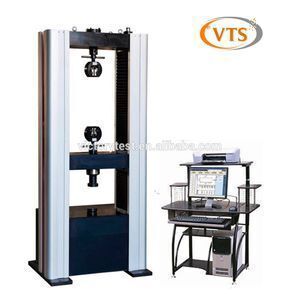

10kN 20kN 50kN 100kN 200kN 300kN Computer Universal Tensile Strength Testing Machine
(2- Column, Floor-standing type, 0.5 class)
1. Applications & functions
WDW series computer control electronic universal testing machine are suitable for tensile, compression, bending test of metal, steel, alloy, rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
2. Main Features
This machine adopts the most advanced and reliable load frame structure of ball screw electric mechanical universal testing machine, which equips alternating servomotor for driving crosshead, photoelectric encoder for displacement measure and high precision load cell to assure the high resolution of test.
Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. Control software can automatically finger out routine data, such as tensile modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc.
They can conform to the requirements of testing standards ASTM A370, ASTM E4, ASTM E9, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002, etc.
3. Main Technical Specifications:
Model | WDW-5/10/20 | WDW-50 | WDW-100 | WDW-200/300 | WDW-500/600 |
Max Load Capacity | 5kN/10kN/20Kn | 50kN | 100kN | 200kN/300kN | 500kN/600kN |
Load amplification | no range | ||||
Class of Machine | 0.5 | ||||
Load Range | 0.4%-100%FS | ||||
Load Accuracy | Within ±0.5% of indicating load | ||||
Load Resolution | 1/300000 | ||||
Range of Deformation | 4%-100%FS | ||||
Resolution of Deformation | 0.01mm | ||||
Accuracy of Displacement | Within ±0.5%of indicating load | ||||
Resolution of Displacement | 0.01mm | ||||
Range of Testing Speed | 0.005 mm/min -500 mm/min, stepless and arbitrary setting | ||||
Effective Tensile Space | 600mm | ||||
Max Compression Space | 600-800mm | ||||
Power supply | 1-phase, 220V-240V, 50Hz/60Hz Or specified by users | 3-phase, 380V-415V, 50Hz/60Hz Or specified by users |
4. Standard Accessories
Description | Remarks |
Control PC | Dell brand |
Control card & software | |
Printer | HP Color Inkjet printer |
Servo motor & servo driver | Imported Japanese Panasonic Brand |
High-precision Load Cell | Imported American Celtron Brand |
High-precision Photoelectric Encoder | |
High-precision Ball Screw Lead | |
Tension Test Accessories | Wedge grips for round and flat specimen |
Compression Test Accessories | Round Compression Plate |
Bending Test Accessories | 3-point bending flexure |
Electronic Extensometer |
5. Photos for Tensile Test
6. Photos for English Testing software
The package is Standard Export package-Plywooden case.
We can ship the machines 7-10 working days after order.
Warranty Period is 13 months.
We can provide life-long after-sale service.
Our Factory photos for Materials Tensile Strength testing equipment
1. Will you provide after-sale service after we buy the machines?
Answer: Yes, we will guide you the installation and operation steps when you receive the machine.
2. What about the Warranty period?
Answer: We can provide you 12 months warranty.
3. Whether you can provide ON-SITE training service if we need?
Answer: Yes, we can provide if it is necessary.
4.Do you have CE or ISO certificate?
Answer: Yes, we have CE and ISO Certificate.
5.What about the payment terms?
Answer: T/T, L/C, etc.
