Tube size: | 58*1800mm; | Use: | swimming pool, space heating,water heating; |
Warranty: | 5 Years; | Port: | Shanghai/Ningbo; |
Warranty: | 5; | Packaging Detail: | Swimming pool heat solar colletor/ solar panel: All good are packed in cartoon, Samples are packed in wooden cases.; |
Certificate: | Solar Keymark; | Color: | Silver; |
Supply Ability: | 10000 Set/Sets per Month; | Material: | Aluminum Alloy; |
Payment Terms: | L/C,T/T,Western Union; | Pipe Material: | Glass; |
Place of Origin: | Zhejiang China; | Model Number: | JXSPC-15; |
Tube material: | three target tube; | Brand Name: | Lucky; |
Certificate: | Solar keymark, SRCC,CE; |

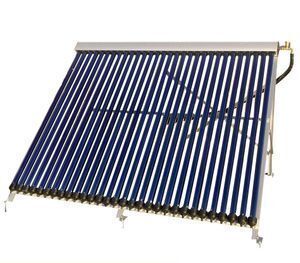

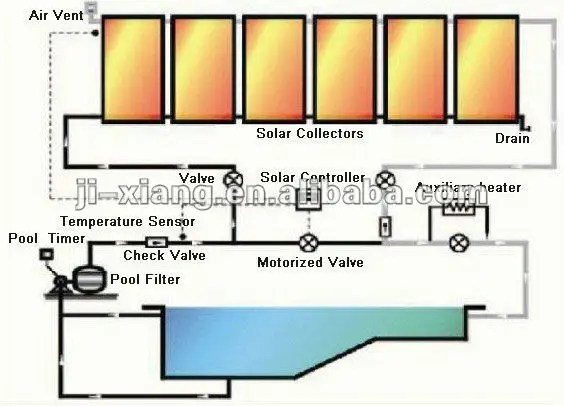

Swimming pool heat solar colletor
HEAT PIPE SOLAR COLLECTOR TECHNICAL DATA | |||||||
MANIFOLD | |||||||
Manifold casing material | Anodized aluminum alloy | ||||||
Manifold header pipe | TU2 copper | ||||||
Insulation layer | Compressed rock wool. | ||||||
VACUUM TUBES | |||||||
Tube structure | All-glass double deck co-axial structure | ||||||
Glass material | High borosilicate 3.3 glass | ||||||
Outer tube dia. & thickness | Ø58±0.7mm; Glass thickness 1.6±0.15mm | ||||||
Inner tube dia.& thickness | Ø47±0.7mm; Glass thickness 1.6±0.15mm | ||||||
Tube size | 58*1800mm | ||||||
Absorptive coating property | Structure | AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN | |||||
Sediment method | Single target or Three targets - magnetron sputtering plating | ||||||
Specific absorption | 0.90-0.93(AM1.5) / 0.93-0.96(AM1.5) | ||||||
Emission ratio | 0.05-0.075(800C±50C) / 0.04-0.06(800C±50C) | ||||||
Solar irradiation for obtaining a preset water temperature | Φ=58 H≤4.7MJ/m² | H=4.1-4.4MJ/m² / H=3.7-4.2MJ/m² | |||||
Vacuum tightness | 5.0×10¯³ Pa | ||||||
Idle sunning property parameters | 220-260 m².C/KW / 260-300 m².C/KW | ||||||
Average heat loss coefficient | ULT=0.6~0.7W/(M2.0C) / ULT=0.4~0.6W/(M2.0C) | ||||||
Resistant Hail | ≤25mm | ||||||
Useful life | 15 years | ||||||
HEAT PIPES: | |||||||
Heat pipe material | Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm) | ||||||
Heat pipe condenser | Top: Dia.14mm/ 20mm/22mm/ 24mm, Body: Dia.8mm | ||||||
Nickel-plated heat pipe (14mm,20mm,22mm, 24mm) optional, will quote per request | |||||||
Max.working temp | -30 ~250C | ||||||
ΔT | 35C(Radiation>=800w/m2.day) | ||||||
Start-up Temperature | <=30C | ||||||
Resistant Hail | ≤25mm | ||||||
Useful life | 15 years | ||||||
BRACKET | |||||||
Bracket: | Stronger galvanized steel / Stainless steel/aluminium alloy | ||||||
Bracket angle: | 0,18,22,38,45 optional, pitched roof, flat roof optional. | ||||||
Fastening pieces: | Made of zinc-coated stainless steel.. | ||||||
MODEL No. | Tube Size | Tube No. | Aperature Area | Gross Area | Volume | Gross Weight | Load Qty 20GP/40HQ |
Dia.*L | ( m2 ) | ( m2 ) | ( m3 ) | ( kg ) | ( sets ) | ||
JXSC-58-10 | 58x1800mm | 10 | 0.94 | 1.6 | 0.15 | 35 | 186/452 |
JXSC-58-12 | 58x1800mm | 12 | 1.22 | 1.852 | 0.18 | 42.8 | 155/372 |
JXSC-58-15 | 58x1800mm | 15 | 1.49 | 2.315 | 0.23 | 52 | 122/292 |
JXSC-58-18 | 58x1800mm | 18 | 1.67 | 2.778 | 0.27 | 62.5 | 103/245 |
JXSC-58-20 | 58x1800mm | 20 | 1.88 | 3.087 | 0.29 | 69.3 | 96/232 |
JXSC-58-24 | 58x1800mm | 24 | 2.23 | 3.704 | 0.34 | 85.3 | 82/198 |
JXSC-58-30 | 58x1800mm | 30 | 2.82 | 4.63 | 0.42 | 104 | 66/160 |
