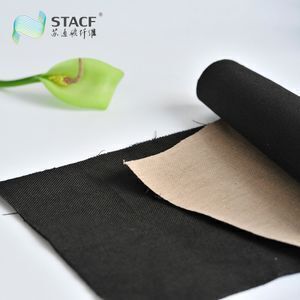

Manufacturing filter media Activated Carbon Fiber filter medium cloth

Supplier: Jiangsu Sutong Carbon Fiber Co., Ltd.
Region: Jiangsu, China
Contact: Ms linli lu
Price: $50.00 / >=10 kilograms
Min. Order: 10 kilograms

Click here to contact

Product details

Port:	ShangHai;	package:	standard export package;
certification:	ISO9000,ROSH;	Usage:	Filter;
size:	customized;	color:	black;
Applicable Industries:	Manufacturing Plant;	Place of Origin:	Jiangsu China;
Payment Terms:	L/C,T/T;	Supply Ability:	100 Ton/Tons per Year;
lead time:	according to the quantity;	Packaging Detail:	plastic bag and carton packing;
Brand Name:	SuTong;	Material:	100% Viscose ACF;
Type:	Filter;	usage:	for air and water purifying;

Product Description

Manufacturing filter media Activated Carbon Fiber filter medium cloth

Low temperature carbonization fiber(felt, cloth)

Carbonization the viscose material with the temperature (320°C) and it is to be a heat-resisting and it is to be a heat- resisting and flame retardant material.The carbon content is ≥50%,its thickness is 0.3mm-12mm.STD weights 50-800g /m2, lgnition temperature is ≤ 300*C.This product is mainly used to insulate heat, retard flame, anticorrosion, conduct electricity and prepare the activated carbon fiber.

High temperature carbonization fiber (felt,cloth)

Carbonization the viscose material with high temperature(~ 1000°C) and it is to be a heat-resisting and flame retardant material.The carbon content is ≥ 90%,its thickness is 0.2mm-12mm, STD weight is 50-600g/m2, ignition temperature is ≥ 500m2 and it has good electric conductivity.This broduct is mainly used to insulate heat, retard flame, anticorrosion, conduct electricity.

The raw material is viscose fiber ( rayon-based fiber), obtained by the pre-oxygen, high-temperature carbonization process. It is an excellent high-temperature insulation material, which not only has the other types of general characteristics of the carbon felt, but also has the low-density, low thermal conductivity, high temperature resistance, corrosion resistance, electrical conductivity and a series of excellent performance. It is suitable as thermal insulation materials, corrosion-resistant materials, and processed into graphite carbon felt.

It can adsorb organic gases. the adsorption is larger than granular and powdered activated carbon.

Product specifications of activated carbon fiber cloth

Model	Specific surface area	Wet weight	Width (meter)
STC-900	BET≥800	70-80	0.92-1.1
STC-1100	BET≥1000	100±10	1.35-1.45
STC-1000	BET≥900	90±10	1.15-1.21
		150±10	1.08-1.14
		120±10	1.07-1.15

Product features

Product features:

1,Higher adsorption capacity and faster adsorption velocity

2,Easy regeneration and faster desorption velocity

3,Best heat regeneratioin and lowest ash content

4,Acid-resisting,alkali-resisting,there is better electric conductivity and chemical stability.

5,Easy to profile of activated carbon fiber can be made into different shape, like felt, silk, cloth and paper etc.

ACF Quality control:

1,Before the order to be confirmed, we should check the raw material & colour of color by sample which should be strictly.

2,We will be tracing the different phase of production from the beginning.

3,Every ACF quantity checked & cleaned before packing.

4,Before mattress delivery clients could send one QC or point the third party to check the quality.

5,We will try our best to help clients when problem occurred.

Application of ACF:

(1)Solvent recovery system

ACF can be used in solvent recovery from air stream such as the vapor of Benzene,ketone,ester,petroleum (particularly for the corrosive chloride,solvents of high reactivity and low boiling-point solvents).

(2)Military defensive projects

It cn be made of anti-chemical clothes and the NBC protective suits,gloves,dressing and bandages etc.

(3)Air cleaning

(4)Wastewater treatment

(5)Drinking water purification

(6)Application in electronic industry and energy

(7)ACF can be made into adiabatic materials,anti-corrosive materials and heat insulating material.

(8)Living goods like refrigerator deodorizer,retain freshness devices for fruits and vegtables,household water-cleaner,antibiotic shoe-pads,anti-poison mask and clothes,cigarette filer,etc.

(9)Medical and health protection like medical bandage,woundplast and sanitary towel etc.
