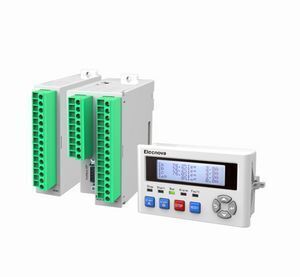

WDH-31-580 motor protector 3UF7 simocode pro siemens replacement

Product details
Certificate:CE, ISO9001;Relative humidity:≤93%RH;
Rated voltage of motor:AC 380V/600V;Place of Origin:China;
Packaging Detail:Each one in cardboard tray, 16pcs in carton box as for WDH-31-580 motor protector 3UF7 simocode pro siemens replacement;Storage temperature:-25~70℃;
Model Number:WDH-31-580;Type:Motor Contoller;
Brand Name:Elecnova;Port:Shanghai;
Frequency:50 Hz;Rated current of motor:0.1 A~800 A;
Product name:WDH-31-580 motor protector 3UF7 simocode pro siemens replacement;Warranty:2 Years;
Supply Ability:30000 Piece/Pieces per Month smart factory Modbus interface 3 phase analog output MCC;Operating temperature:-20~60℃;
Payment Terms:L/C,T/T,Western Union,MoneyGram;
Product Description

WDH-31-580 is a protection device for low-voltage AC motors and is applied to the motor applications with the rated frequency up to 50Hz, rated voltage up to 800A. The product has such functions as monitoring, controlling, protection and communication so as to provide the excellent protection for motors.

Product Name
Smart factory Modbus interface 3 phase analog output MCC control motor protector
Measuring
3 phase voltage
3 phase current
Residual current
Energy
Harmonics
Voltage/current starting protection accuracy
±2% of setting value
Communication
Profibus-DP
Modbus-RTU
Ethernet Modbus/TCP
Areas of Application
Buildings, industrial facilities, utilities


Advantages

*Modbus Interface
*Protection(21 types)
*Analog Output
*Temperature
*Harmonics

Code
Adjustable Range
Configurable Motor Power(380V system)
Measurement Module
Diameter
1
0.2A~5A
0.13kW~2kW
WM1/05
∅18mm
2
5A~25A
2kW~11kW
WM1/25
∅18mm
3
25A~100A
11kW~55kW
WM1/100
∅18mm
4
100A~250A
45kW~115kW
WM1/250
Copper Bar
5
200A~500A
90kW~280kW
(configured with external CT)
WM1/05
∅18mm
6
500A~800A
280kW~400kW
(configured with external CT)
WM1/05
∅18mm
Size
Control circuit
Application

*Low Voltage three phase AC motor
*MCC cabinet or motor independent control cabinet
*Reversing and Reduced Voltage
*Advanced automation or control (such as conveyor system or well recovery pumps)
*Fire pumps and fans


Related Products
Packing & Delivery

Packing Details : Each one in cardboard tray, 16pcs in carton box as for motor intelligent controller
Delivery Details : 7 working days after confirmation

1. cardboard tray

2. Inner box with air bag

3. Variety inner boxes
