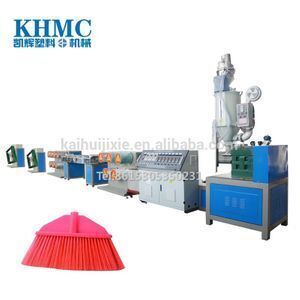

Recycled PP PET Polyester Brush Monofilament Yarn Making Machine
-
Supplier: Laizhou Kaihui Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Ms Cynthia Wu -
Price: $26000.00 / >=2 sets -
Min. Order: 2 sets
| Raw material: | PP PE PET; | Other name: | Baler twine machine; |
| Voltage: | 380VAC/220VAC; | Warranty: | 1 Year; |
| Place of Origin: | Shandong China; | Packaging Detail: | Nude or packaged according to customer requirements. Package including wooden case or plastic film. Film picking free.; |
| Payment Terms: | L/C,T/T; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Condition: | New; | Warranty: | 12 months since B/L date; |
| Supply Ability: | 7 Set/Sets per Month brush making machine; | Product type: | Monofilament; |
| Automatic Grade: | Automatic; | Certification: | ISO 9001 CE; |
| Screw Rotate Speed: | 30-70 r/min; | Power(W): | 45KW; |
| Brand Name: | KAIHUI; | Frequency converter type: | Energy-saving; |
| Usage: | Rope and net; | Port: | Qingdao port; |
| Process Type: | Extruding; | Application: | Makng Brush; |
| Dimension(L*W*H): | 2.5M*2.3M*2.6M; | Production Capacity: | 2ton/day; |
| Color: | Customizable; | Weight: | 6.8T; |
| Payment Terms: | 30%TT as production; |
Application
The machine can produce different size of PP, HDPE, PET virgin or recycled monofilament, fishing yarn which is widely used in brush and broom. The machine has the characteristics of high capacity, long life span, easy operation, easy maintenance.
Advantage
Easy operation High output and Low power consumption Easy to maintain
Inspection and testing machine before delivery,assemble and produce at customer's workshop
Technical service forever
Flow Chart
Raw material (PP/PE/PET)-------Extruder--------water cooling------1STstretching-------heating tank(hot water)-------2nd stretching ----- winder(Combined spindles )-----Heating stove----- Yarn cutting machine
Machine Specifications
Type | SY-65 | SY-80 | SY-90 | SY-125 | SY-160 |
Screw Diameter(mm) | 65 | 80 | 90 | 125 | 160 |
Screw speed range(r/min) | 30-70 | 30-70 | 30-70 | 30-70 | 30-70 |
Extension ratio | 1:5 | 1:5 | 1:5.5 | 1:5.5 | 1:5.5 |
Total power ( kw) | 40 | 60 | 78 | ||
Output ( kg/h) | 20-40 | 40-60 | 60-80 | 80-120 | 100-140 |
Installation Dimensions ( m) | 16×2.1×2 | 20×2.1×2 | 25×2.2×2 | ||
Total weight(t) | 4 | 5 | 6 | 7 | 8 |
High value-added
The extruder can also make PP/HDPE/PET monofilament rope yarn, mowing yarn and , net yarn, etc.
Service
Term of Payment: 30% TT down payment, 70% TT balance
Warranty Period: 1 year
Installation and Testing The seller will send technician to the buyer’s factory install and test the machines.
Friendly Reminder
The product recommended is for your reference. We will recommend you the most suitable one according to your detailed requirements.
-
