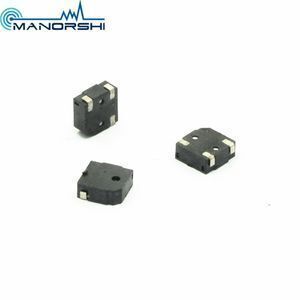

Electromagnetic Transducer 5mm 3V SMD Magnetic Buzzer For watch

Supplier: Changzhou Manorshi Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms Amy Shi
Price: $0.03 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Storage Temperature:	-30 ℃~+85 ℃;	Port:	SHANGHAI for Magnetic Buzzer For watch;
Brand Name:	MANORSHI;	Supply Ability:	10000 Piece/Pieces per Day for Magnetic Buzzer For watch;
Packaging Detail:	Export standard packing for Magnetic Buzzer For watch;	Operating Temperature:	-20 ℃~+80 ℃;
Name:	Magnetic Buzzer For watch;	Frequency:	4khz;
Voltage:	3v;	SPL:	75db;
Current:	100ma;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,for Magnetic Buzzer For watch;
Place of Origin:	Jiangsu China;	Model Number:	SM05ET03A;
RoHS:	yes;	Coil Resistance:	12±3Ω;
Product Name:	Electromagnetic Transducer 5mm 3V SMD Magnetic Buzzer For watch;

Product Description

Magnetic Buzzer For watch

Specification

No.	Item	Unit	Specification	Condition
1	Oscillation Frequency	Hz	4000	Vo-p=1/2duty , square wave
2	Operating Voltage	Vo-p	2 ~ 4
3	Rated Voltage	Vo-p	3
4	Current Consumption	mA	MAX.110	at Rated Voltage
5	Sound Pressure Level	dB	MIN. 80	at 10cm at Rated Voltage
6	Coil Resistance	Ω	12±3
7	Operating Temperature	℃	-20 ~ +60
8	Storage Temperature	℃	-30 ~ +80
9	Dimension	mm	5.0 x 5.0 x H3.0	See appearance drawing
10	Weight (MAX)	gram	0.6
11	Housing Material		LCP( Black )
12	Leading Pin		Tin Plated Brass(Sn)	See appearance drawing
13	Environmental Protection Regulation		RoHS

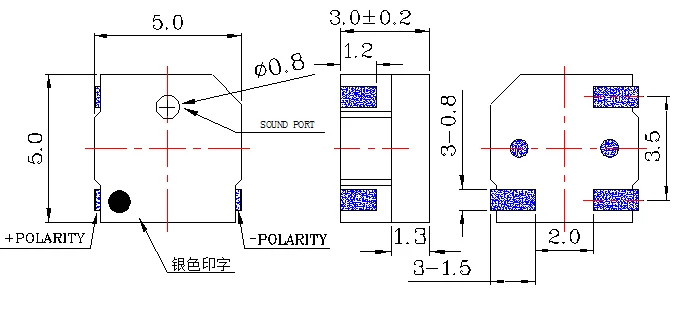

Dimension

Application

Packaging & Shipping

Packaging Details: Export standard packing for Electromagnetic Transducer 5mm 3V SMD Magnetic Buzzer For watch
