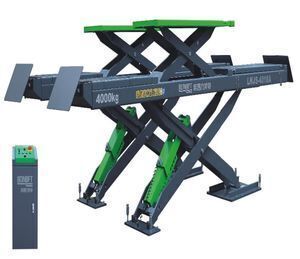

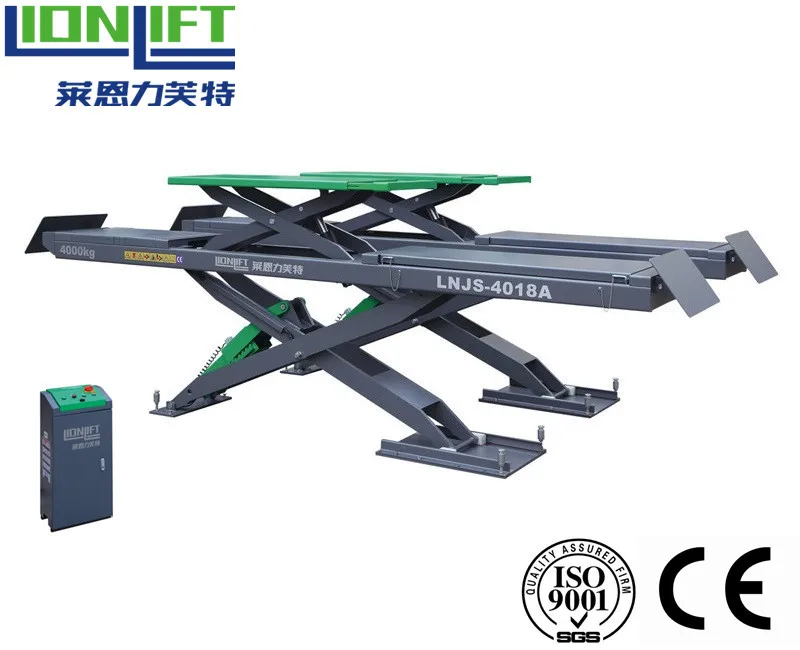

car lifts LNJS-4018A lifting capacity 4Tons (CE approved)

Product details
Model Number:LNJS-4018A;Brand Name:LIONLIFT;
lifting capacity:4000KG;Supply Ability:1000 Set/Sets per Year;
power:2.2KW;Place of Origin:Shandong China;
voltage:380/220V;system pressure:25Mpa;
Platform Length:4300/4500mm;Design:Scissor;
lifting time:50s-60s;Certification:CE;
Packaging Detail:standard wooden cases;Port:Qingdao/Yantai;
Warranty:1 Months;minimun height:330mm;
maximun height:1850mm;second lift height:450mm;
Type:Double Cylinder Hydraulic Lift;Payment Terms:L/C,T/T;
Lifting Capacity:4000kg;Color:gray;
Product Description

Product Application

Double layers scissor lift

       With the development of auto repair market and more specified and professional requirements, scissor lift gets more and more popular for auto inspection and fast repair.Wheel alignment with secondary lifts made of full plate material.Max height cut-off function, rollover avoidance control, platforms synchronous lifting

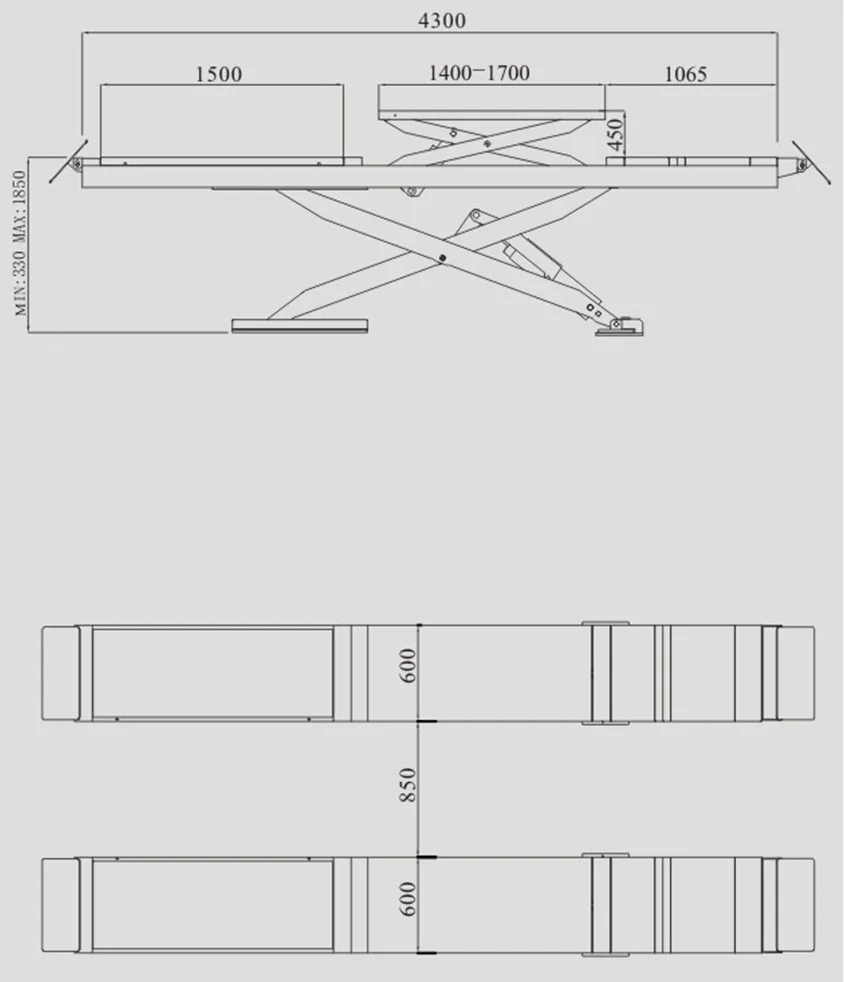

SPECIFICATIONS
Model
LNJS-4018A
Lifting weight(KG)
4000
Lifting height (MM)
330----1850
Platform length (MM)
4300/4500
Platform width (MM)
600
Operation pressure (Mpa)
0.6-0.8Mpa
Rated voltage (Mpa)
25
Power voltage (V)
380V/220V
Lifting time(S)
50-60
Equipment weight(KG)
2278
Motor power (KW)
2.2KW
Note:
Wheel aligment scissor lift with secondary lift

Main Features

1  Recess mounted installation occupies less space. A lift capacity of 4T can meet requirements of various vehicles.
2   6mm whole board bending benches adapt to various vehicles and there are also platforms of 4500mm as an alternative. Shearing arms of mother scissor and sub scissor are made of Q345B manganese plates.
3   Movable sub-machine platform may extend its length to 1800mm, with extended side slide, adapting to vehicles of various wheelbases. The lift can be used for SUV and business vehicles.

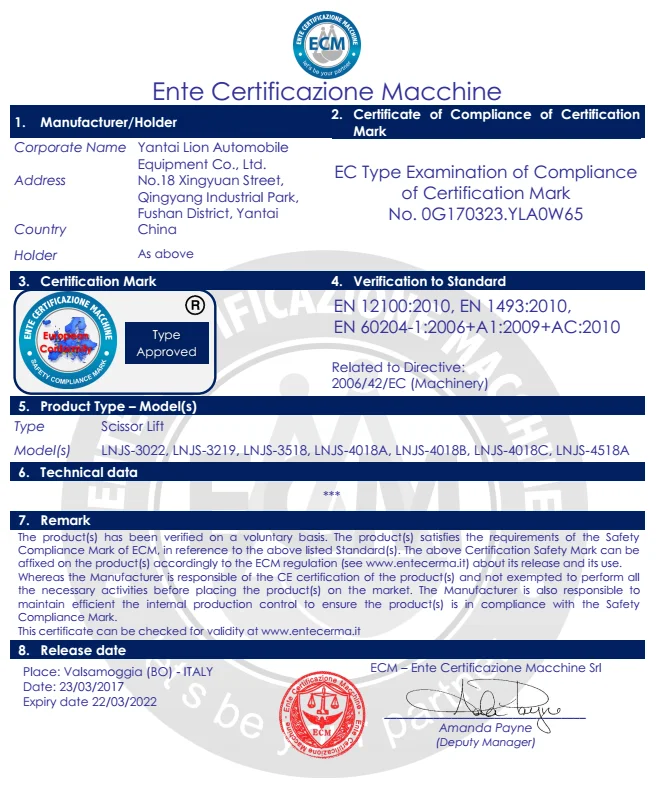

Certifications
Detailed Images

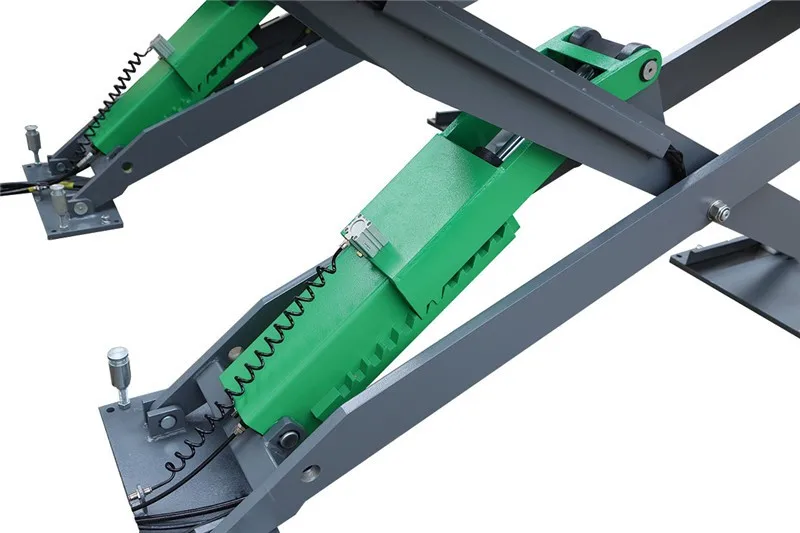

Mechanical hydraulic double locking device

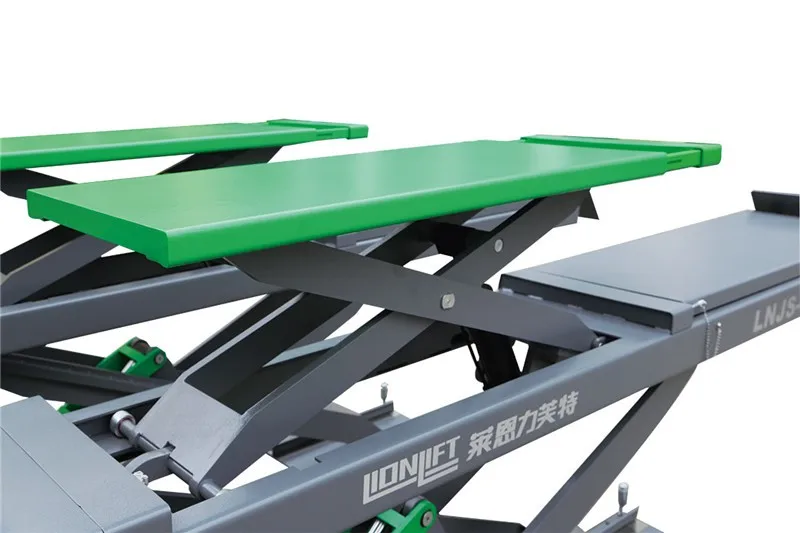

Second lifting extendable platform
drawer-type surface, suitable for different types of cars


Second lifting safe lock

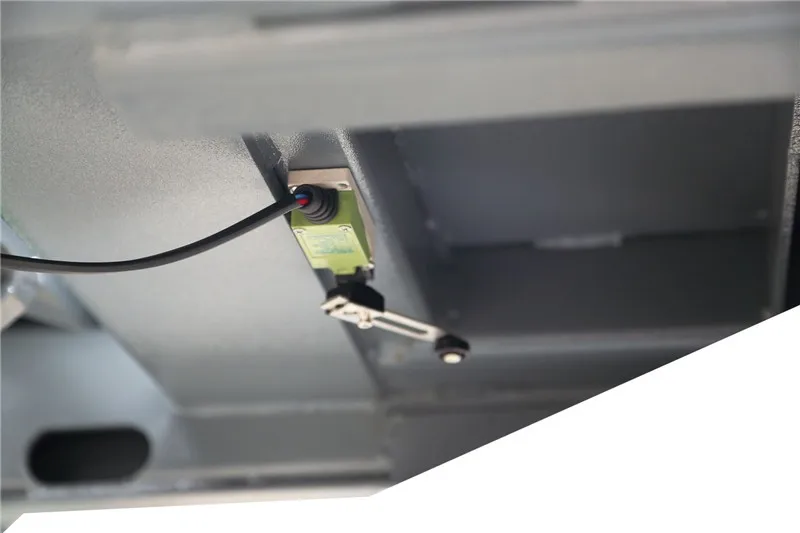

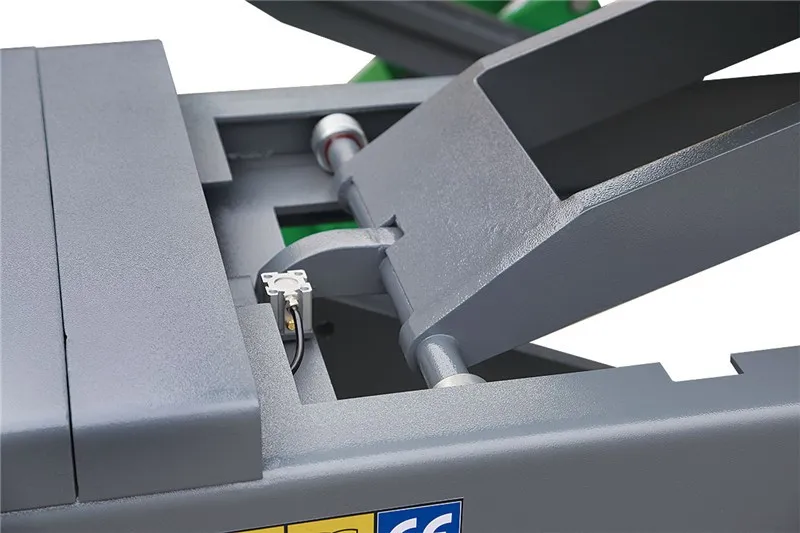

Max height limitation


Our Service





Packing & Delivery
                                                    packing&delivery
1
Air bubble film
2
Corrugated board
3
Stretch film
4
wooden case
Related Products

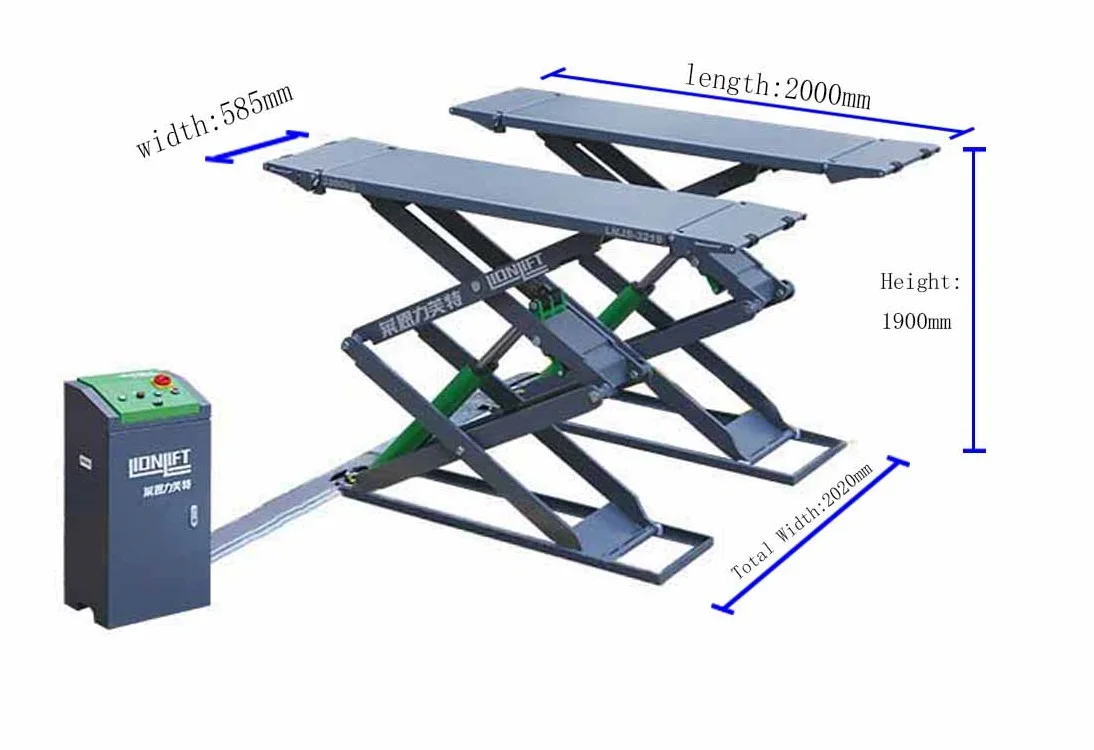

LNJS-3219
