Dimension(L*W*H): | 2000*1300*200mm; | Automatic Grade: | Automatic; |
name: | automatic honey jar filling machine; | Production Capacity: | 800-6000bottles /hour; |
Place of Origin: | Shanghai China; | engineers and technicians: | with over 15 years experience; |
Weight: | 450kg; | PLC control parts: | Mitsubishi; |
Warranty: | 1 year; | Brand Name: | brightwin; |
Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Home Use,Food Shop,Food & Beverage Shops; | Packaging Detail: | strong wooden box for honey jar filling machine; |
Voltage: | 380V 50HZ; | Supply Ability: | 21 Set/Sets per Month honey jar filling machine; |
Power(W): | 3.5kw; | Port: | shanghai port; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | CE ISO 9001; |
usage: | filling jam/sauce/kechup/honey etc into bottles; | warranty: | two years warranty, life long service; |
type: | BW-FJ; | Type: | filler; |
measuring system: | piston pump; | Payment Terms: | L/C,T/T,Western Union; |
material: | 304stainless steel &316SUS; | After-sales Service Provided: | Online support; |
standard: | food standard; | Condition: | New; |
https://youtu.be/OFIlTqBvRno

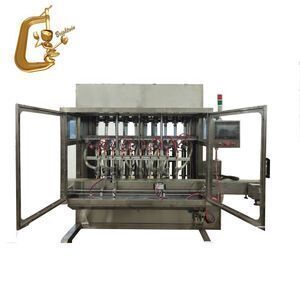

Description
Machine is suitable for filling semi-liquid products without or with small particles: such as honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream, shampoo, body wash, liquid detergent, dishwashing liquid etc.
Details
1.Specially designed thick sealing ring(Food grade Teflon material from Dupont USD), which is no need to replace within 3 years.As following picture:
2.Equipped with SUS316l long sepcial designed no-drip filling nozzles which can protect the cylinder on the top being damaged by material.As following pictures:
3.304 rame,5mm thick SUS 316L, piston pump, manufactured by Taiwan producer
4.With sensor in each SUS316L rotary value and filling nozzle, if there is any problem in any nozzle, it shows in touch screen, its easy to be found.
5.Japan Fuji Serve motor control, easy to adjust the volume, just need input the volume needed in touch screen.
Elements brands list
Item | Brands and material |
sensor | transparent bottle sensor from Leuze Germany |
PLC | SIEMENS |
Touch screen | SIEMENS |
Piston cylinder | 5MM thick SUS316L |
Rotary valve | SUS316L |
Rotary valve connection | quick coupler designed from Germany |
Filling nozzles | SUS316L stainless steel anti-drip quick-coupler design |
Cylinder | Airtac Taiwan |
Connecting pipe | fast loading pipe from Italy |
Sealing ring | food grade PTFE from Dupont USA(no need replaced for three years) |
electrical parts | Schneider |
Rack | SUS304 |
bearings | Japan NSK, original imported |
Level control in hopper | with |
capping machine labeling machine
