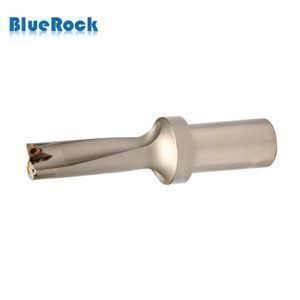

High quality Carbide Indexable U Drill for WCMX inserts

Supplier: Solid carbide end mills
Region: Jiangsu, China
Contact: Ms. Shine Zhu
Price: $24.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Keywords:	High Speed Indexable Carbide U Drill for WCMX inserts;	Diameter:	14-70;
Overall Length:	100-500;	Delivery Detail:	5-15 days;
Stock:	rich;	Supply Ability:	30000 Piece/Pieces per Month High quality Carbide Indexable U Drill for WCMX inserts;
Place of Origin:	Jiangsu China (Mainland);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Controlling made:	CNC;	Coordinated Insert:	WCMX/WCMT inserts;
Application:	Hole making;	Packaging Detail:	High quality Carbide Indexable U Drill for WCMX inserts 1> White parts for protect the flute of cutters 2> Laser brand and demensions on the body of cutters, print labels. 3> 2pcs or 10pcs each group, packed in small paper box. 4> Sealed with air bubble wrap, pack into bigger carton.;

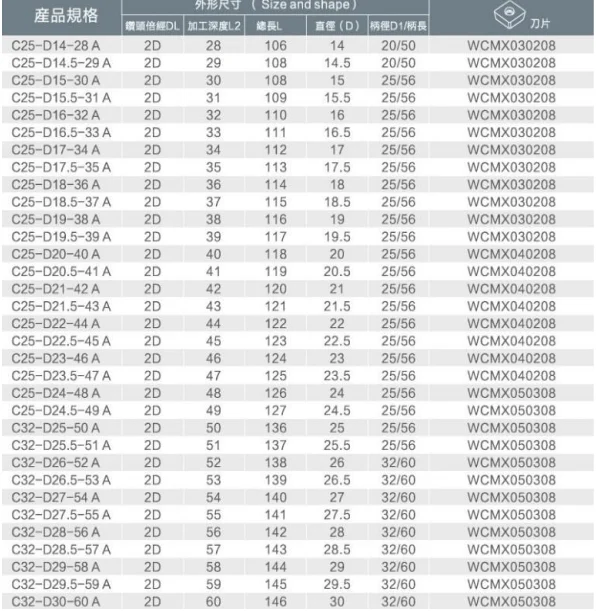

Product name:	High quality Carbide Indexable U Drill for WCMX inserts;	Model Number:	WC2D/3D/4D/5D(SD14-80);
Brand Name:	High quality Carbide Indexable U Drill for WCMX inserts;	Port:	Shanghai,Beijing,Tianjin,Ningbo,Shenzhen ect;
Model Number:	U drill;	Customized:	Accept;

Product Description

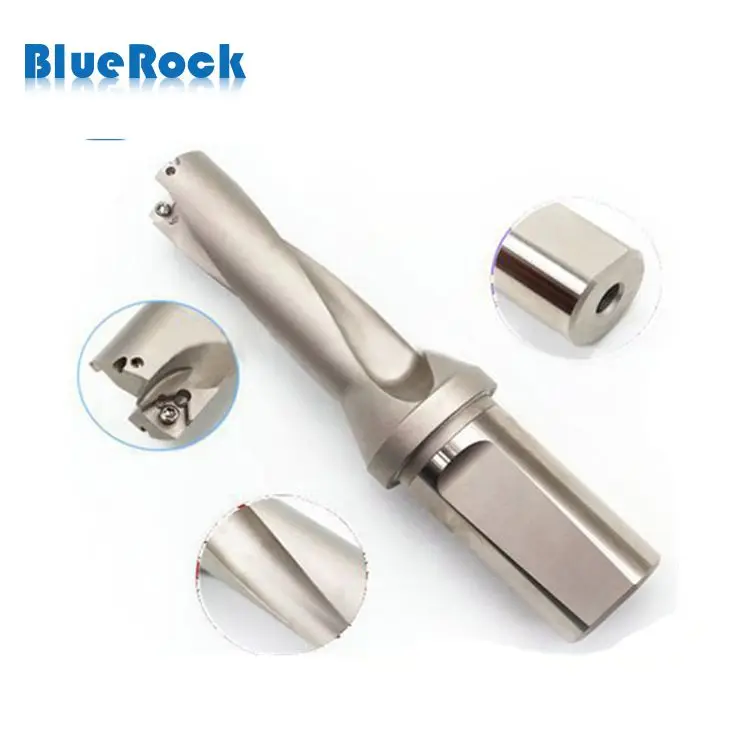

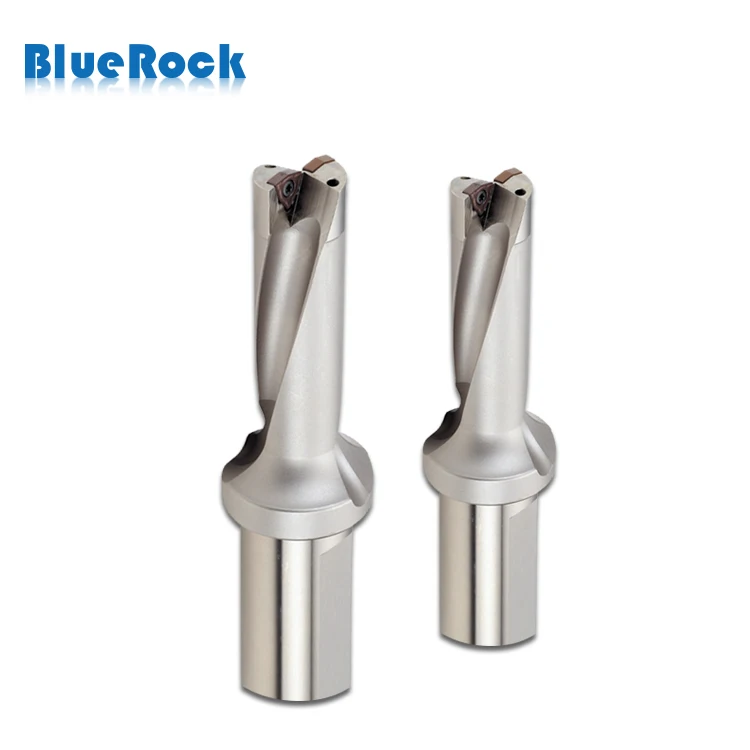

High quality Carbide Indexable U Drill for WCMX inserts

1,100% virgin material

2,Long used tool-life and perfect cutting effect

3,Drilling Depth: 2D/3D/4D/5D

4,Cutting Type:High Speed Drilling

5,Color:Silver Steel Color

6,Coating:Nickel

Indexable insert drill cutting confition

Material of Parts	Vc(m/min)	Feed rate f(mm/rev)
		?13.0~?18.0	?18.5~?20.0	?20.5~?30.0	?37.0~?55.0	?56.0~?68.0
45# Steel	85-130-190	0.07-0.12-0.22	0.07-0.12-0.22	0.07-0.13-0.24	0.08-0.15-0.27	0.09-0.16-0.30
Stainless steel	85-120-155	0.05-0.10-0.17	0.05-0.10-0.17	0.05-0.11-0.18	0.06-0.12-0.20	0.08-0.13-0.22
Cast iron	105-140-170	0.08-0.19-0.30	0.09-0.20-0.34	0.10-0.22-0.37	0.11-0.24-0.41	0.12-0.27-0.45
ductile cast iron	80-105-130	0.08-0.19-0.30	0.09-0.20-0.34	0.10-0.22-0.37	0.11-0.24-0.41	0.12-0.27-0.45
Titanium Alloy	25-45-60	0.05-0.10-0.17	0.05-0.10-0.17	0.05-0.11-0.18	0.06-0.12-0.20	0.07-0.13-0.22
Aluminum Alloy	155-200-240	0.05-0.10-0.16	0.05-0.10-0.16	0.05-0.11-0.17	0.06-0.12-0.19	0.07-0.13-0.20

Tolerance table

Drilling Depth	Tolerance	Drilling Depth	Tolerance
2D	0.05~+0.15	4D	0~+0.25
3D	0~+0.20	5D	0~+0.25

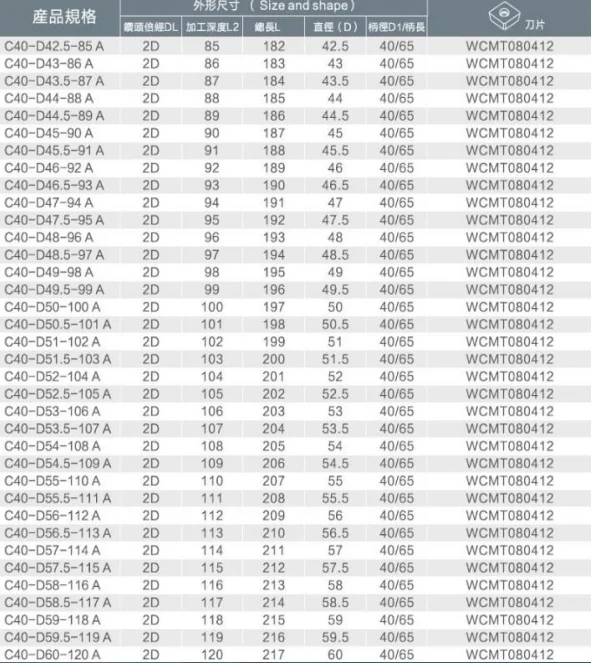

(For more cataloge about U drill 3D 4D 5D , please no doubt to contact us,thanks.)

Product overview

Packaging & Shipping

High quality Carbide Indexable U Drill for WCMX inserts

1> White parts for protect the flute of cutters
2> Laser brand and demensions on the body of cutters, print labels.
3> 2pcs or 10pcs each group, packed in small paper box.
4> Sealed with air bubble wrap, pack into bigger carton.
