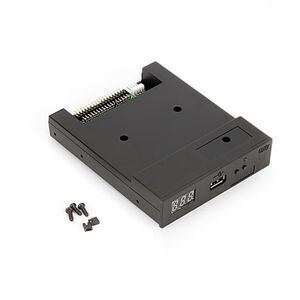

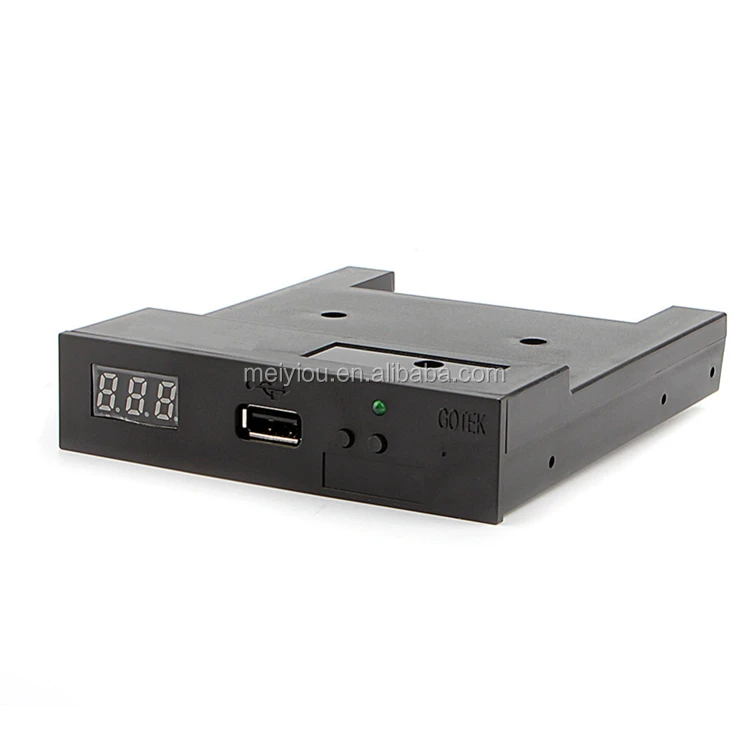

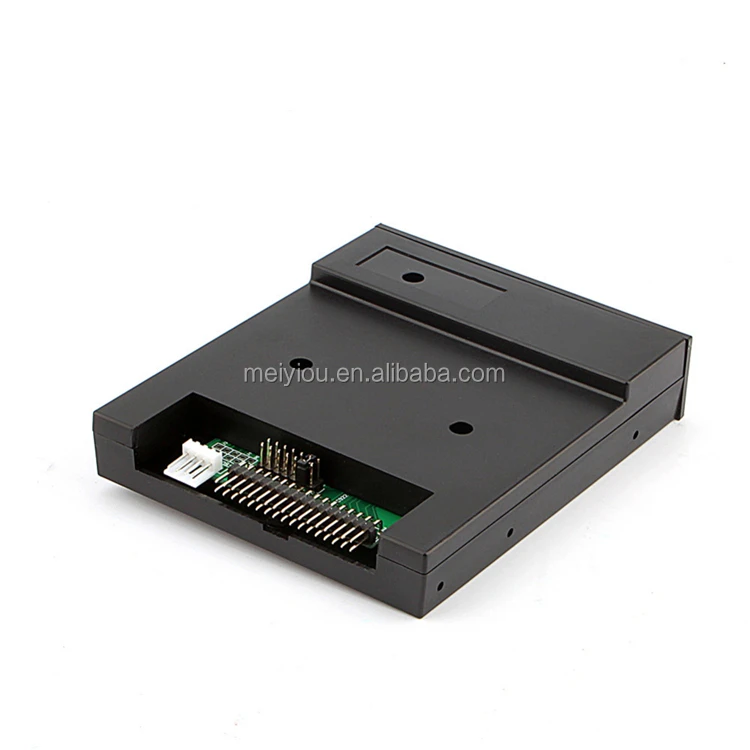

Black SFR1M44-U100K 3.5" 1000 floppy disk drive to USB emulator analog music keyboard

Product details
Coding method:MFM;Housing material:ABS;
Selling Units:Single item;Single gross weight:0.12 KG;
Model Number:M-144-U100K;Transmission rate:500 kbps;
Colour:Black;Interface Type:USB;
Disk format:cylinder: 80;Single package size:16X12X3.4 cm;
Package Preview:https://sc01.alicdn.com/kf/H7959826d98af416ba70a4d1a6bd908191.jpg_640x640.jpg;18 bytes/sector:512 data;
Products Status:Stock;Package Type:1pc/pp bag, carton for outsdie packing;
Tracks:160 departments / tracking;Place of Origin:China;

Black SFR1M44-U100K 3.5" 1000 floppy disk drive to USB emulator analog music keyboard

Product Description



Housing MaterialABS
ColorBlack
Transfer rate500 kbps
Encoding methodMFM





Product Features:
100% Brand New
Item's color might be different from the picture because of the aberration.
This floppy drive emulator is great for electronic organ
Housing Material:ABS
Color:Black
Floppy driver with below function needed:
Floppy driver with 34pin interface,and 5V DC power plug
Use 2HD flpppy disk with 1.44MB capacity


Features:
Use normal usb flash drive as the medium for transfer design.

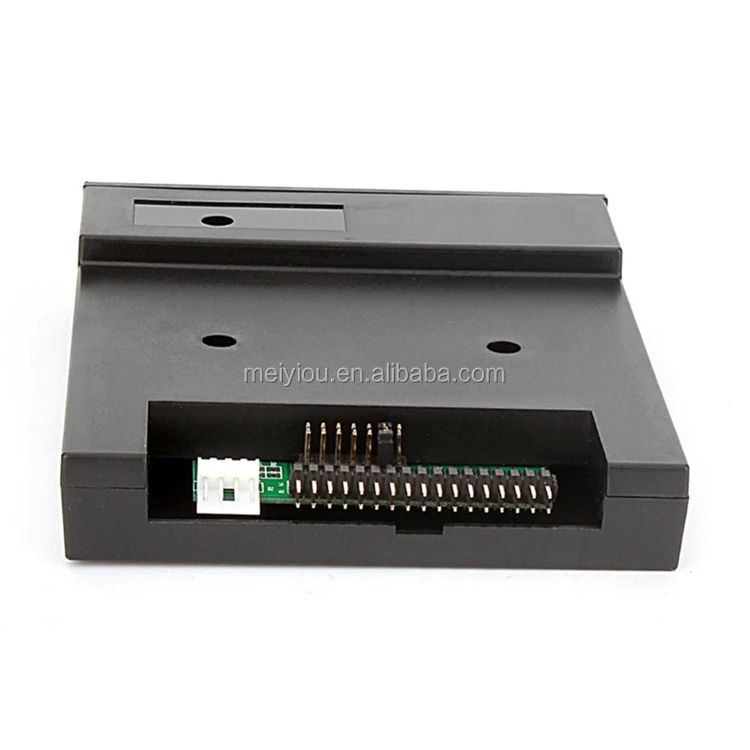

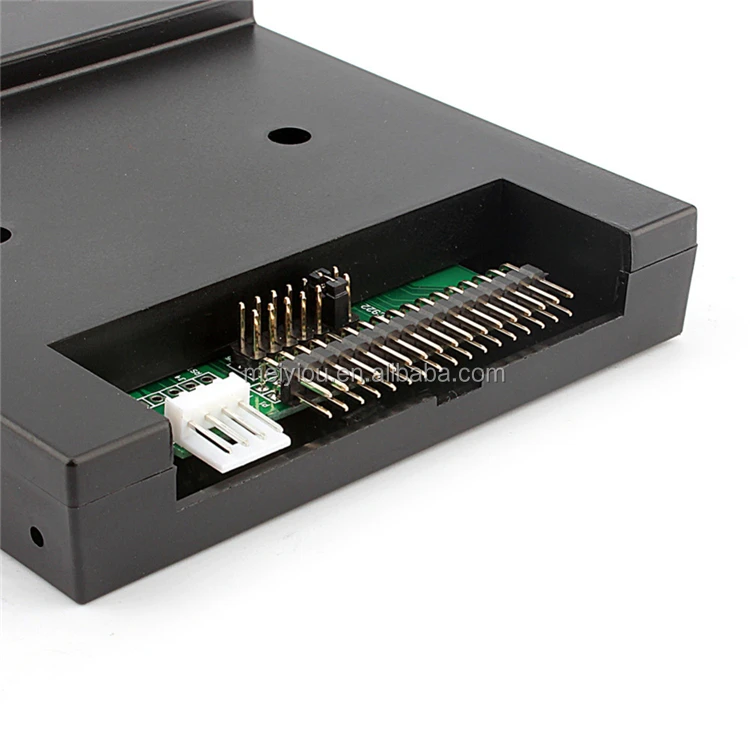

34pin floppy driver interface,5V DC power supply,easy to install.
Capacity:1.44MB 2HD Cylinders:80 Tracks:160 Sectors/Track: 18 Bytes/Sector:512 Data
Transfer rate:500 kbps
Encoding method:MFM.
1000pcs partitions in usb flash drive can be used.
Built-in self-format function.(read relevant documents to use this function)
Jumpers with function for different machines(SFR1M44-U100K not support jumpers).

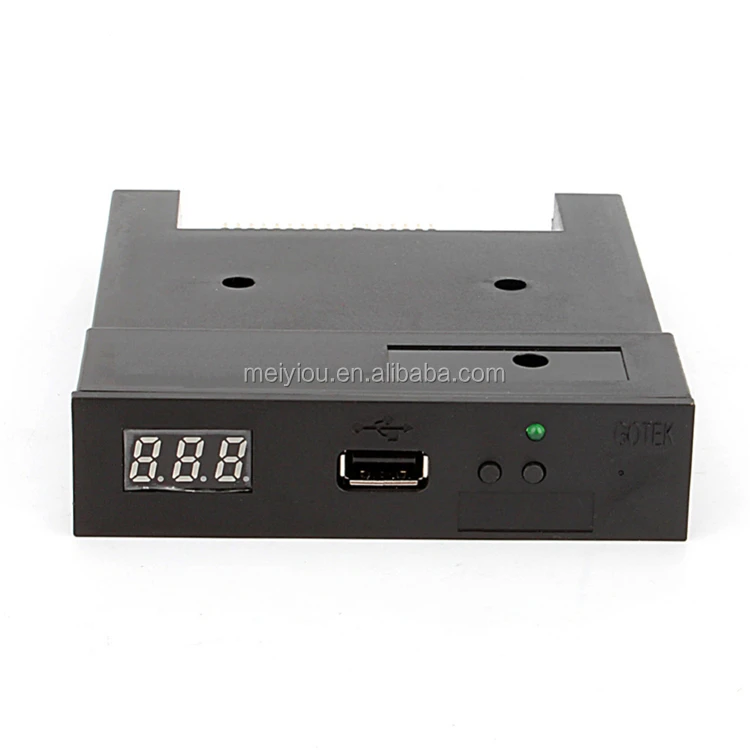

Panel:
8segment numbers:represent partitions number
Green led:status of read and write operation
USB port:connect usb flash drive



Button:
Left button used to rise ten-digit,right botton used to rise single-digit,press 2 button together to
rise hundred-digit



Operation :
Format usb flash drive.
1.use built-in self-format function to format usb flash drive into 1000pcs partitions
2.install an emulator on computer,and format every partitions by operate driver A.
3.use emulator UFA1M44-100,plug usb flash drive on it,
connect to computer,it will recognized as removabe driver A or B under WINDOWS XP/2000/7,format every partitions.
UFA1M44-100 also built in self-format function.



Read and write data:
1.install emulator on machine
2.install emulator on computer
3.connect usb flash drive on computer,read and write data directory by software, under WINDOWS XP/2000
4.use emulator UFA1M44-100,plug usb flash drive on it, connect to computer,read and write data under WINDOWS XP/2000/7.

Package Include:
1x USB Emulator
