Tunnel IQF freezer for sale

Supplier: OnlyKem (Jinan) Technology Co., Ltd.
Region: Shandong, China
Contact: Ms. Sally Zhang
Price: $11500.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Online support;	Cooling system:	Water Cooling, evaporate cooling;
Showroom Location:	Thailand,Kenya,Chile,Colombia,Algeria,Sri Lanka,Romania;	Product name:	Tunnel IQF freezer for sale;
Freezing time:	30~90min;	Cooling Capacity:	1000 kg/ h;
Power(W):	100kw;	Weight:	12000;
Temperature:	Reach -45C;	Payment Terms:	L/C,T/T;
Certification:	CE;	Key Selling Points:	High-accuracy;
Place of Origin:	Shandong China;	Voltage:	220v, 380v, 440v;
Type:	Tunnel Freezer;	Compressor:	Germany Bitzer;
Brand Name:	OnlyKem;	Supply Ability:	100 Set/Sets per Month;
Spiral:	Customized;	Conveyor belt:	S.S 304;
Port:	Shanghai;	Local Service Location:	Philippines,Malaysia,Australia,Kenya,Sri Lanka,Bangladesh;
Applicable Industries:	Hotels,Food & Beverage Factory,Farms,Food & Beverage Shops;	Material:	Steel SUS304;
Condition:	New;	Dimension(LWH):	Cuatomized;
Warranty:	3 years;	Freezeing Capacity:	500kg-5000kg/h;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;

OnlyKem Brand Spiral Freezer

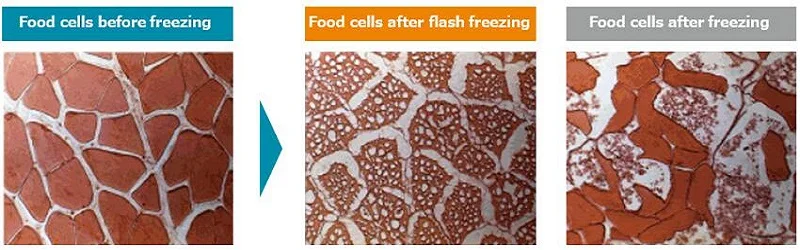

Spiral freezer also call air blast freezer, IQF or tunnel freezer, it is mainly used to freeze a large number of content at short time. It can maintaining high quality of the product, keep product’s texture, moisture and flavor throughout the entire freezing process. There are typically 3 main blast freezer models: batch style freezer, tunnel freezer and Spiral freezer models are the most used in the food industry.

Tunnel freezers have been used in large scale production lines for decades. The base design of the air based tunnel freezer has stayed, for the most part, un-changed. With the main concept of it still being inputting the product in one side and extracting the frozen product at the end. This process allows business to continue freezing for a long period of time with the use of overall less labor in the process compared to regular batch style freezers.

Features of our OnlyKem Brand Spiral freezer

• 360 Degree freezing which secures content’s entire surface will be frozen in a faster and more efficient way.

• Frozen content’s will maintain original freshness, texture, and flavor of products that are frozen within the spiral freezer every time

• No ice build up for continuous use and easy clean up process

• Continuous freezing!

• Our Spiral freezers are allow customize!

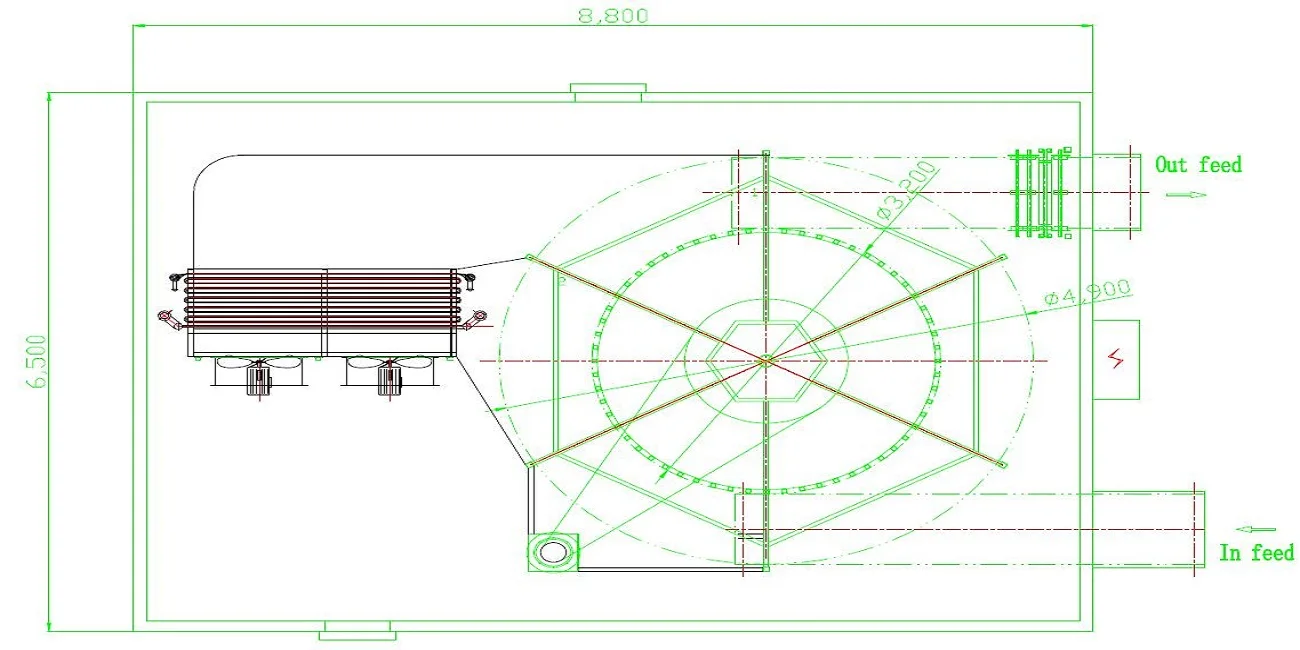

Following is the specification of a 1000kg/h spiral freezer for baking products (either fresh or par baked products).

Specification of the spiral freezer:

1. Belt width: 850mm,effective width: 780mm,

2. Layer: 17,Height of each layer: 200mm.

3. Spiral diameter: 3200mm.

4. Freezer room temperature:-35°C.

5. In feed temperature: +15°C.

6. Core temperature of out feed: -18°C.

7. Frozen time:30-90 Min.

8. Cooling capacity:130Kw(-42°C/+35°C).

9. Refrigerant:R404A.

Conveyor belt width	850mm	Effective width	780mm
Material	SUS304 spring hard wire 1.5mm	Wear rod	Plunger 5mm, cap bead hot press forming, fixed by welding method
Conveyor belt link	The thickness of the links on both sides is 3mm, and the left and right baffles are 15mm high. SUS304	Conveyor belt mesh	The center distance of the mesh is 9mm. Can be placed directly on the mesh belt to freeze
Spiral layers	17 layers	Height between layers	200mm (net height 160mm)
Conveyor total length	296m	Diameter	Φ3200
Feed rack	In feed 1.5m Out feed 0.5m	In feed way	In feed and out feed at same side.
In feed height	880mm	Out feed height	4048mm
In feed and out feed time	30-90min	Conveyor belt moving	Chain drive, frequency control

Now, with new freezing technology, you are able to store seasonal items year round, giving you the opportunity to expand sections of your business to new markets and increase production without having to worry about an increase in inventory waste. The products that are frozen will maintain their original flavor and texture throughout the entire storage period, whether that’ll be 1 month or 1 year.

With Spiral Freezing technology, you will be able to freeze products while still maintaining most of the original freshness of it. Well, with our Spiral and Tunnel freezer lines, you will be able to do new product lines to store for a longer period of time to reduce stock shortage and reduce waste.

We would love to give you more details regarding our spiral freezers, tunnel freezers, or compact batch style freezers, that is why we encourage you to contact us at any time.
