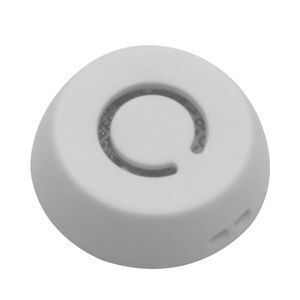

BLE 5.0 humudity bluetooth temperature sensor beacon

Product details
bluetooth protocol:BLE;Relative humidity&tem measure range:0-100%; -10℃ to +65℃;
Application:Transportation, food morniter;Usage:measure the Temperature&humudity;
Antenna Type:PCB;Payment Terms:T/T;
Port:FOB shanghai;Battery:CR2032;
Theory:Temperature humudity Sensor;Output:BLE signal;
Model Number:dusun-beacon;chipset:TI CC2640;
Place of Origin:Zhejiang China;Battery life:365;
Supply Ability:100000 Piece/Pieces per Month;Brand:dusun;
size:32.5mm, H:11mm;sensor:Temperature and humidity;
Brand Name:DUSUN;
Product Description



Temperature & humidity sensor beacon is a new generation sensor technology based on iBeacon/eddystone/Altbeacon. This product can send collected data to phone or gateway via Beacon broadcasting.


High quality integrated digital temperature and humidity sensor module  which make sure the temperature deviation is±0.1℃, humidity deviation is 1.5%. The sampling rate for temperature and humidity readings is 100K Hz, with the collected data transmitted via Bluetooth low energy connectivity provided by TI CC2640 to iOS 7.0+ or Android 4.3+ smartphones. Provide temperature and humidity detection solution for food, crop planting, trucks and containers transportation,etc.
Beacon name
HumiTemp Sensor
Bluetooth version
BLE 5.0
Chipset
TI CC2640R2F
Function
Detect temperature and humidity and broadcast the data
Temperature measure range
-10℃ to +65℃
Relative humidity measure range
0% to 100%
Temperature deviation
±0.1℃
Humidity deviation
1.5%
Battery
CR2032
Battery life
360 days(Broadcast interval:1280ms, transmit power:0dBm)
Broadcast range
Up to 100m in open area
Size
Φ32.5mm, H:11mm
Material
ABS plastic
Transmit power
-23dBm to +5dBm adjustable
System
IOS 7.0+, Android 4.3+


How to work






Application
Detect RV Temp & Humidity Monitor Room & Garage   Tell Pet’s Condition   Attention to Care Health
