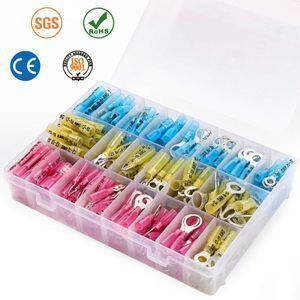

Hampool Factory Supply 270pcs Butt Splice Kit Marine Shrinkable Terminal Crimp Set
-
Supplier: Shanghai Hampool Industrial Group Co., LTD -
Region: Shanghai, China -
Contact: Ms Group Hampool -
Price: $0.03 / >=270 pieces -
Min. Order: 270 pieces
Product details
| Single gross weight: | 0.02 KG; | Certificate: | SGS ISO UL; |
| Model Number: | HP-ABox(DS)-270BCB; | Application: | wire connector; |
| Selling Units: | Single item; | Color: | Red/Blue/Yellow; |
| Size: | 22-18AWG 16-14AWG 12-10AWG; | Model Number: | HP-ABox(DS)-270BCB; |
| Package Preview: | https://sc01.alicdn.com/kf/H9b3a1a74d92d4410bb18e81587b2b411a.jpg_640x640.jpg; | Place of Origin: | China; |
| MOQ: | 1box; | Packing: | 270pcs/box; |
| Lead Section: | 0.5-1.5 1.5-2.5 4-6; | Brand Name: | Hampool; |
| Package Type: | 270pcs/box; | Type: | Splice; |
| Material: | HDPE; Copper; | Product Name: | Terminal Crimp; |
| Single package size: | 5X2X2 cm; |
Product Exhibition
Click here to send inquiry!
Technical Data
| Property | Specification Requirements | Test Methods | Typical Value |
| Tensile strength (Room temp.) | Min.16Mpa | UL224 | 17.2Mp |
| Elongation at break (Room temp.) | Min. 200% | UL224 | 280% |
| Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 200% |
| Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass |
| Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | Pass |
| Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass |
| Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass |

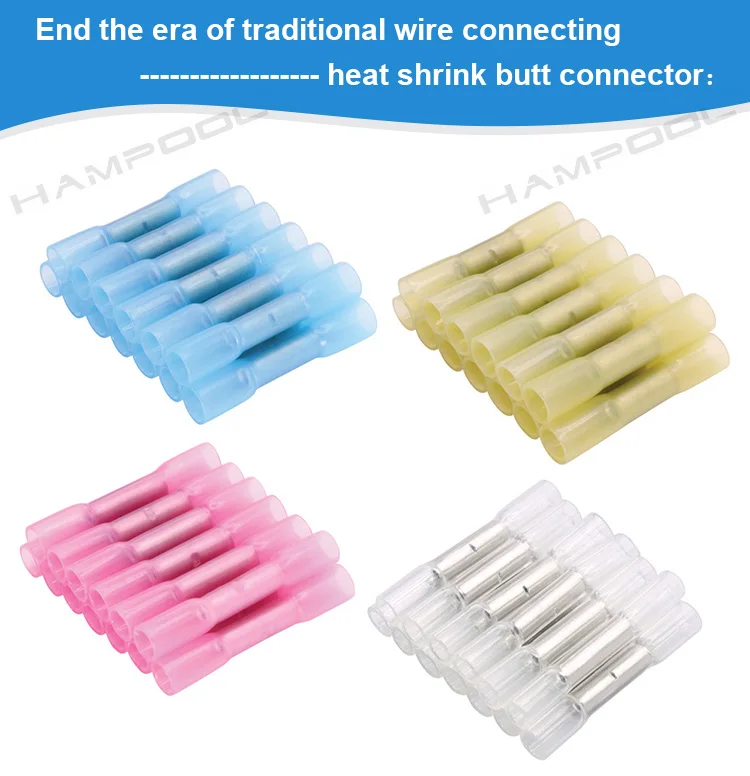

Product Details
Click here to send inquiry!
Packing and Shipping

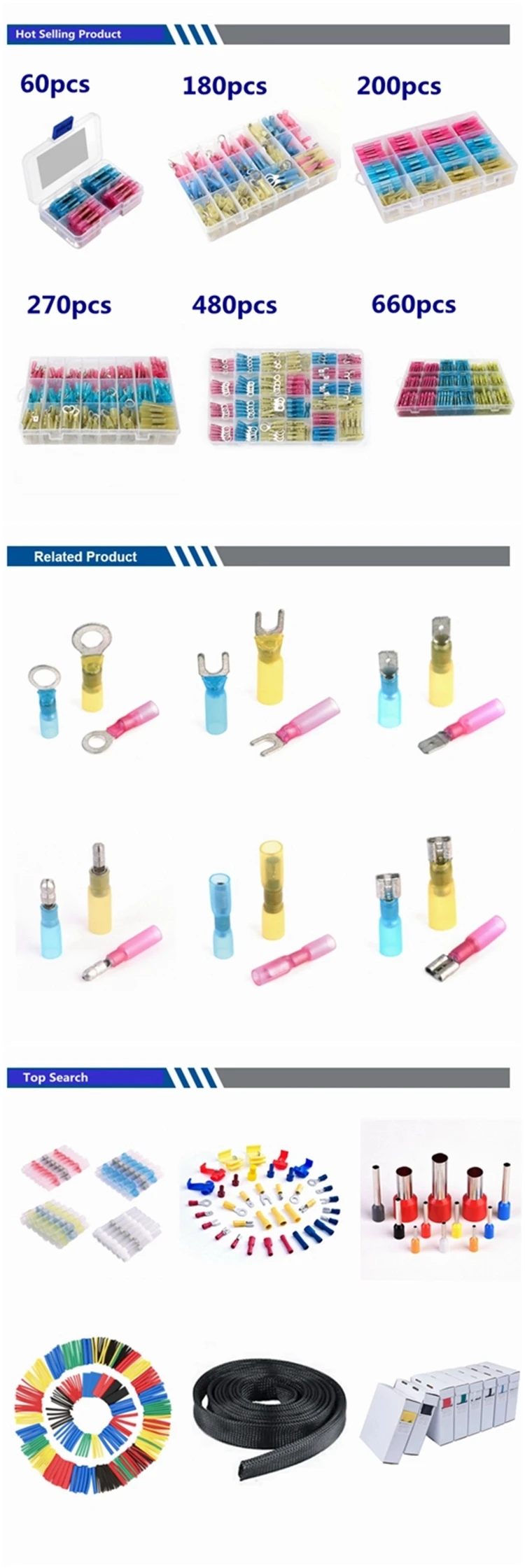

Related Product
