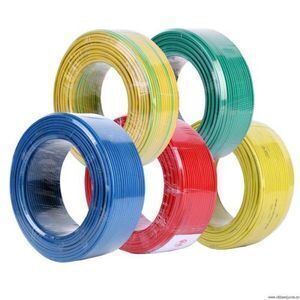

single core PVC insulated solid copper H07V-U 1.5mm2 2.5mm2 electrical wire cable

Supplier: Henan Hongda Cable Co., Limited
Region: Henan, China
Contact: Mr Frank Hu
Price: $0.18 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Conductor Type:	Solid copper (Class 1);	Conductor Material:	Copper;
Working Temperature:	70℃;	Insulation Color(s):	Natural / Red / Yellow / Blue / Green etc.;
Single gross weight:	0.05 KG;	Certificate:	ISO 14001 / ISO 9001 / OHASA 18001 / CCC;
Insulation Material:	PVC;	Brand Name:	HONGDA;
Nominal Cross Section:	1.5mm2 2.5mm2;	Place of Origin:	Henan China;
Product Keywords:	H07V-U 1.5mm2 2.5mm2 cable;	Rated Voltage:	450/750V;

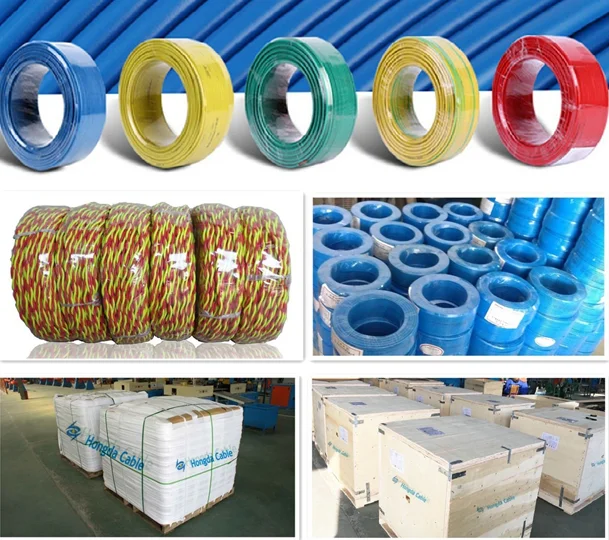

Application:	Housing wire;	Package Type:	100 meters per roll, rolls on Wooden Pallet, in Wooden Box, or in Wooden Drum;
Model Number:	H07V-U 1.5mm2 2.5mm2 electrical wire cable;	Conductor Type:	Solid;
Selling Units:	Single item;	Warranty:	One Year;
Single package size:	10X5X5 cm;	Type:	Insulated;
Design Standard:	IEC 60227, IEC 60228;	No. of Cores:	Single core;
Package Preview:	https://sc01.alicdn.com/kf/HTB1mFbrai_1gK0jSZFqq6ApaXXaK.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1ke2qaeH2gK0jSZJnq6yT1FXaa.jpg_640x640.jpg;

single core PVC insulated solid copper H07V-U 1.5mm2 2.5mm2 electrical wire cable

Product Description

1. High Quality-International Standard; 2. Reasonal Price; 3. 30-60 Years Lifetime and even longer ; 4. Short Delivery Time; 5. One Year Warranty

Application

Wiring for electrical appliances, smaller size electric tools, instruments of various meters, and motorized lighting system and etc.

Cable Construction

1. Conductor: Solid annealed copper wire (Class 1)

2. Insulation: 70℃ PVC (flame retardant)

Permitted temperature on core:

a) Long-term working temperature: 70℃

b) Max. temperature in short circuit: 160℃

H07V-U 1.5mm2 electrical wire cable:

Item	DESCRIPTION	UNIT	SPECIFICATION
1	TYPE:		H07V-U 1.5mm2
	a) Manufacturer’s name	Name	HENAN KAIQI POWER INDUSTRY CO., LTD
	b) Country of origin	Name	China
	c) Rated voltage	V	450/750
2	Standards	-	BS6004
3 .	Conductor:
	a) Material	-	Plain annealed copper
	b) Normal section area	mm²	1.5
	c) Core shape	-	Solid (class 1)
	d) Number of cores	each	1
	e) Number and diameter of individual wire	No./mm	1/.38
	f) Diameter	mm	1.38
4	Insulation:
	a) Material	-	PVC(flame retardant)
	b) Coloring for identification insulation	-	Colors available upon request
	c) Thickness	mm	0.7
5	Approx. Overall/Outer diameter of cable	.mm	2.9
6	Approx. weight of cable	kg/km	20.3
7	Permitted temperature on core:
	a) Long-term working temperature	℃	-15~70
	b) Max. temperature in short circuit	℃	160
8	Max. DC.conductor resistance at 20℃	Ω/km	12.1
9	Min. insulation resistance at 70℃	MΩ•km	0.011

H07V-U 2.5mm2 electrical wire cable:

Item	DESCRIPTION	UNIT	SPECIFICATION
1	TYPE:		H07V-U 2.5mm2
	a) Manufacturer’s name	Name	HENAN KAIQI POWER INDUSTRY CO., LTD
	b) Country of origin	Name	China
	c) Rated voltage	V	450/750
2	Standards	-	BS6004
3 .	Conductor:
	a) Material	-	Plain annealed copper
	b) Normal section area	mm²	2.5
	c) Core shape	-	Solid (class 1)
	d) Number of cores	each	1
	e) Number and diameter of individual wire	No./mm	1/1.78
	f) Diameter	mm	1.78
4	Insulation:
	a) Material	-	PVC(flame retardant)
	b) Coloring for identification insulation	-	Colors available upon request
	c) Thickness	mm	0.8
5	Approx. Overall/Outer diameter of cable	.mm	3.5
6	Approx. weight of cable	kg/km	32.1
7	Permitted temperature on core:
	a) Long-term working temperature	℃	-15~70
	b) Max. temperature in short circuit	℃	160
8	Max. DC.conductor resistance at 20℃	Ω/km	7.41
9	Min. insulation resistance at 70℃	MΩ•km	0.010

More H07V-U electrical wire cable size as below:

No. of Cores x Nominal Cross Section of Conductor	Conductor		Insulation Thickness	Approx. Overall Diameter	D.C Conductor Resistance(20℃)	Approx.Weight
	Construction	Diameter	Insulation Thickness	Approx. Overall Diameter	D.C Conductor Resistance(20℃)	Approx.Weight
	(No./mm)	(mm)	(mm)	(mm)	(Ω/km)	(kg/km)
1.5 mm²	1/1.38	1.4	0.7	2.8	12.2	20
2.5 mm²	1/1.78	1.8	0.8	3.4	7.56	32
4mm²	1/2.24	2.2	0.8	3.8	4.70	47
6mm²	1/2.76	2.8	0.8	4.4	3.11	67
10mm²	7/1.35	4.1	1.0	6.1	1.83	115
16mm²	7/1.7	5.1	1.0	7.1	1.15	174
25mm²	7/2.12	6.4	1.2	8.8	0.727	268
35mm²	7/2.5	7.5	1.2	9.9	0.524	362
50mm²	19/1.82	9.1	1.4	11.9	0.387	521
70mm²	19/2.14	10.7	1.4	13.5	0.268	704
95mm²	19/2.45	12.3	1.6	15.5	0.193	923
120 mm²	37/1.98	13.9	1.6	17.1	0.153	1158
150 mm²	37/2.21	15.5	1.8	19.1	0.124	1444
185 mm²	37/2.45	17.2	2.0	21.2	0.0991	1775
240 mm²	61/2.19	19.7	2.2	24.1	0.0754	2326
300 mm²	61/2.45	22.1	2.4	26.9	0.0601	2904
400 mm²	61/2.83	25.47	2.6	30.67	0.0470	3848

Recommendation

Electric Wire Muti-core Low voltage Power Cable 600/1000V Low voltage Cable

Overhead ABC Cable Control Cable 1KV~35KV Medium Voltage Cable

Certificates

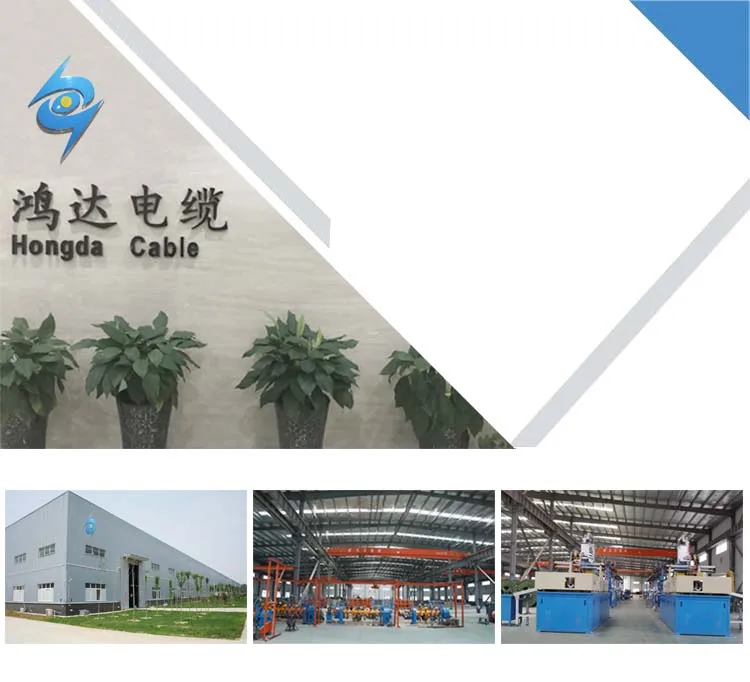

ABOUT US
