Car SUV Reversing Rear View Wireless Camera LCD Screen Display Kit Car Alarm with Camera

Supplier: Shenzhen Betoptek Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Scott Xia
Price: $29.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Wireless:	transmitter & receiver;	Port:	Shenzhen;
Product name:	Car Alarm Security System;	Control Distance:	10m;
Certificate:	CE/E/e Mark/FCC;	Voltage:	DC 12V;
Item:	Digital wireless rearivew system;	Screen size:	4.3 inch;
Payment Terms:	T/T,Western Union,Paypal;	Packaging Detail:	Color box : 20578138mm CTN : 435418298mm 20 kits/CTN;
Place of Origin:	Guangdong China;	Warranty:	12 Months;
Function:	Remote Starter;	Sensor:	CMOS/CCD;
Features:	Car Security Systerms;	Supply Ability:	1 Piece/Pieces per Week;
Brand Name:	BETOPTEK OR OEM;	Frequency (MHz):	2.4GHze;
Type:	One Way;

Car SUV Reversing Rear View Wireless Camera LCD Screen Display Kit Car Alarm with Camera

Main features:

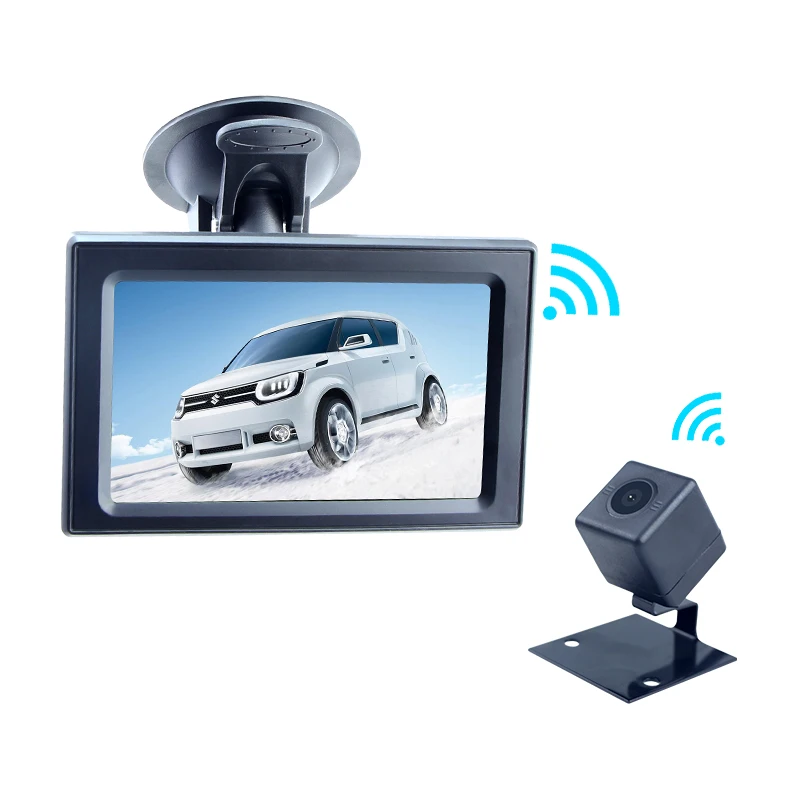

1, Universal Rearview Backup Camera + 4.3inch LCD Screen.
2, Display image on the screen.
3, A simple solution for car reverse system.
4, Small and compact design
5, Simple installation for installers
6, Low light sensitivity fo 0.5 Lux
7, Size-Monitor:120mm x 75mm x 15mm/4.7" x 3" x 0.6";camera:18.5mm x 21mm/0.7" x 0.8".

Technical Specifications:

Camera:

Barrier-free transmission signal 100 meters, 420TV lines high resolution image sensor
Imaging chip: 1/4 color cmos

Waterproof design for outdoor use

Visual angel lens: Diagonal angle of 170 degrees. Horizontal angle of 90 degrees

6.8G shockproof, IP67 waterproof level product quality is more stable

Video Input: 1.0Vp-p . 1.0Vp-p75 ohm.

Power: DC12V±6V <200mA

Firing frequency: 2.370GHZ

Operating temperature: -20oC-+60oC

Installation fro a variety of cars

Operating voltage: DC5V

Current: <150Ma

Receiver sensitivity: -90DB

Video bandwidth: 8.0M

Frequency tuning mode: Built-in PLL

Signal Demodulation: Broadband frequency demodulation

Transfer impedance of the RF: 750Ohm

IF frequency: 480Mhz

IF bandwidth: 18Mhz

Video output: Composite sync signal

Monitor Display:
- Voltage:DC 9V-28V (12V in car)
- Working Temperature (Deg. C) -20℃~ +50℃
- Power Cost:Max 2.5W.
- Display Resolution:480RGB*272.
- Video Input:2 Way Video.

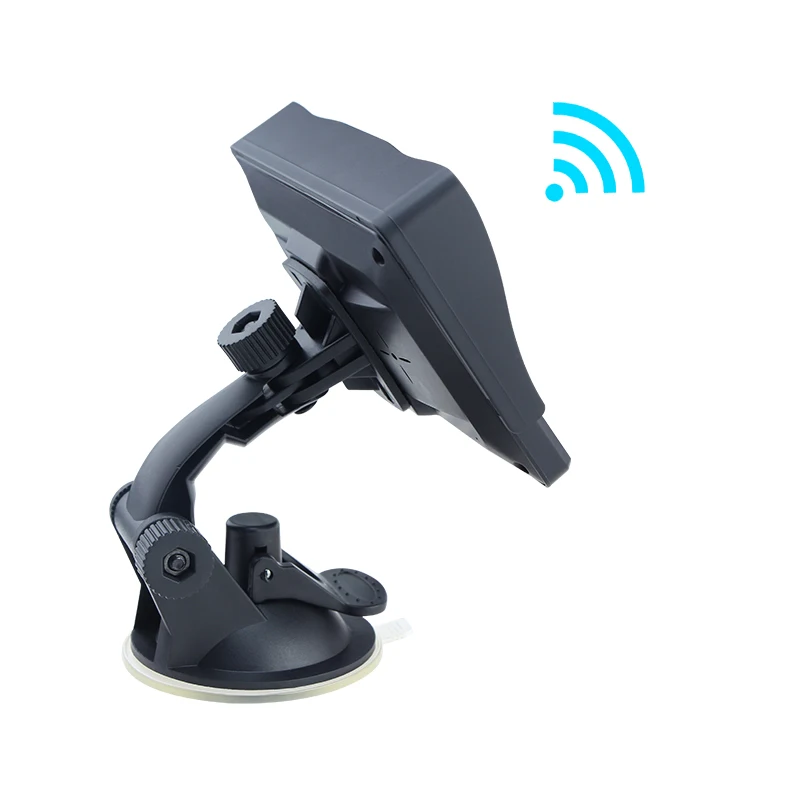

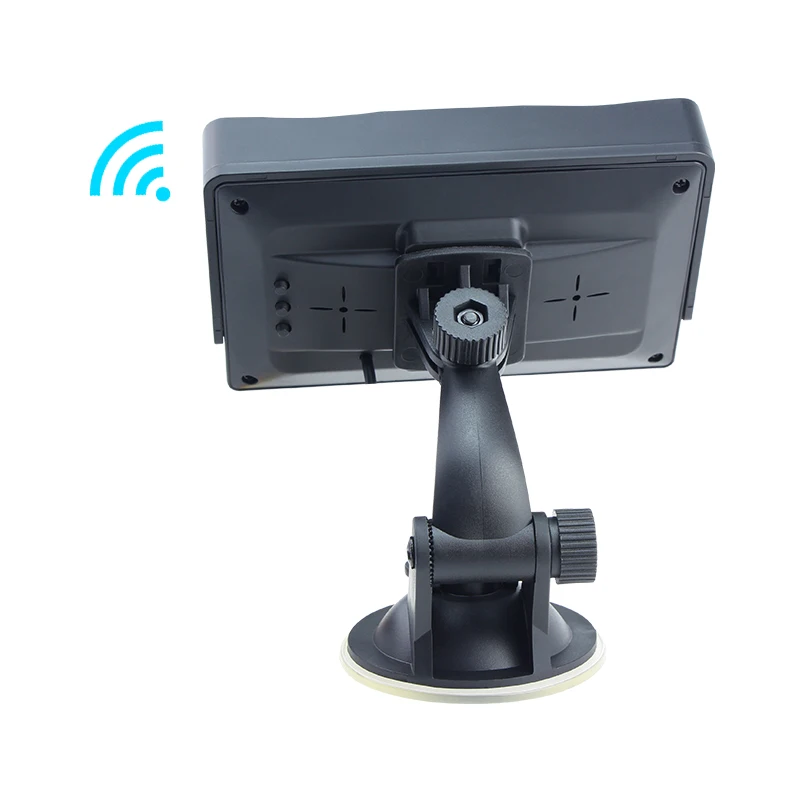

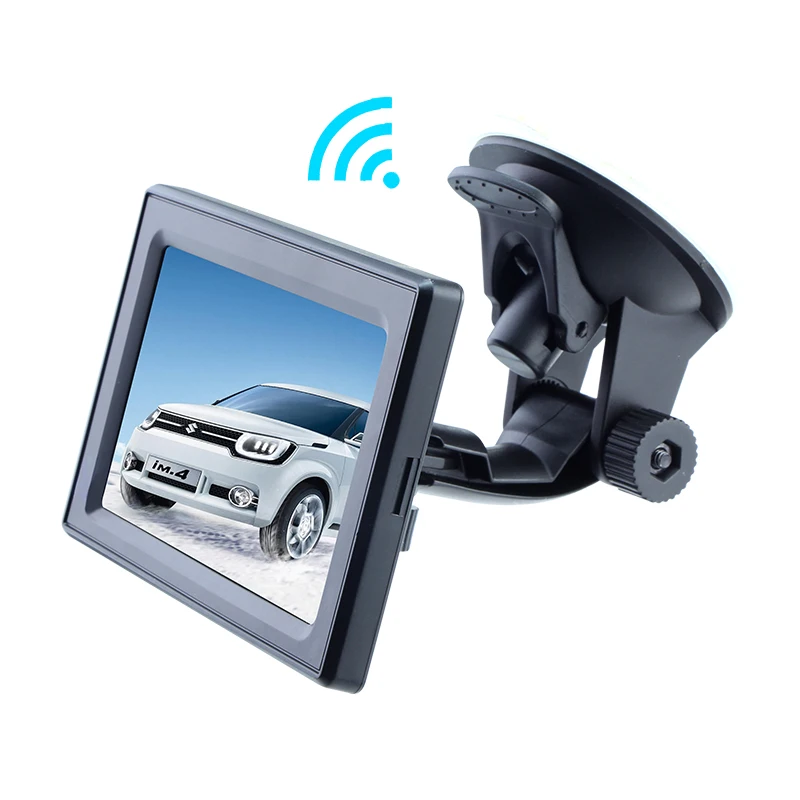

- Display Mode:4.3" LCD TFT.

Package included:

1 x Car License Plate Fame Camera
1 x Car LCD Monitor
1 x 6M Video Cable.
2 x Power Cable
1 x 2.4Ghz wireless transmitter & receiver
