High frequency ac to dc 100A 500A 1000A IGBT plating rectifier

Product details
Warranty:12 months;Power supply:50/60Hz;
Payment Terms:T/T,Western Union,Paypal or Ali secure pay;Brand Name:HN;
Dimensions:Customized;Certificate:ISO9001 CE;
Type:high frequency switch rectifier;Current:0-30000amp dc adjustable;
Product Name:High frequency ac to dc 100A 500A 1000A IGBT plating rectifier;Packaging Detail:wooden case;
D/C:HN-12-500;Application:Generator;
Supply Ability:1000 Piece/Pieces per Month;Model Number:HN-15-500;
Place of Origin:Guangdong China;Mean On-State Current:100A~2000A;
Shipping:sea,air or express;G.W.:38(Kg);
Package Type:Surface Mount;Voltage:0-300V Adjustable;
Port:Shenzhen;Packing:wooden box;

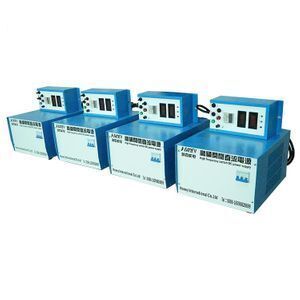

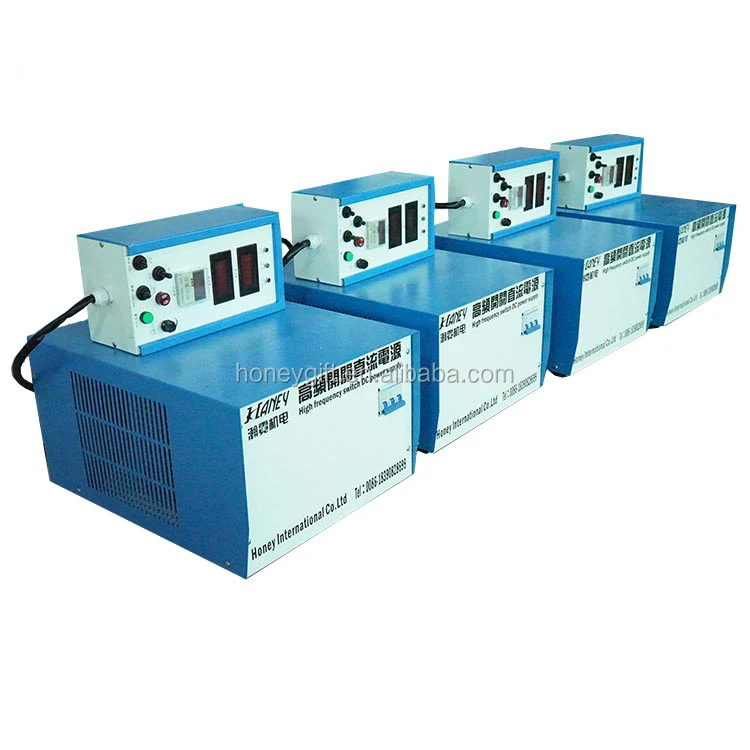

High frequency 100A 500A 1000A plating rectifier picture:

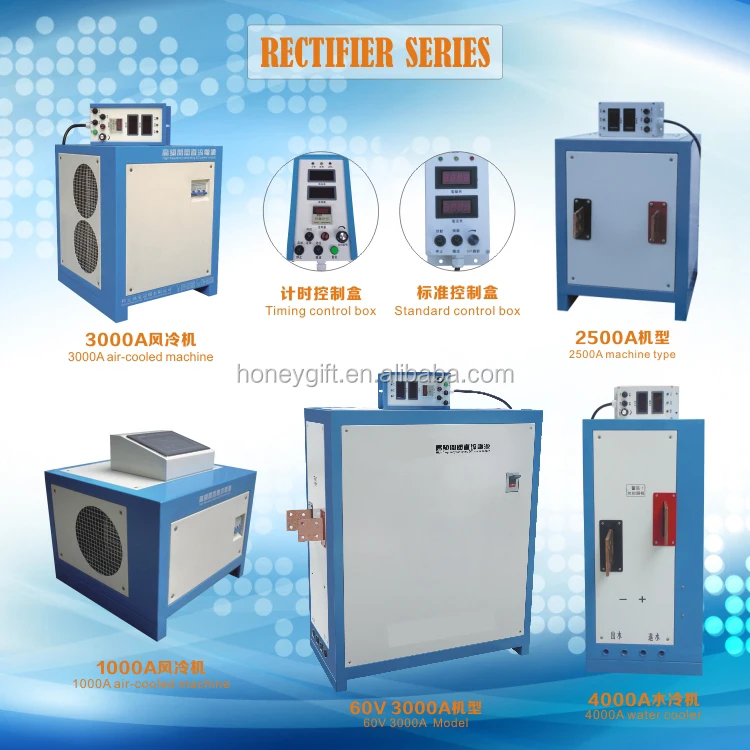

related products:



High frequency ac  to dc 100A 500A 1000A IGBT plating rectifier related products:





High frequency ac to dc 100A 500A 1000A IGBT plating rectifier

Product Description:
Index parameter
s:



Input voltage

220V/380V/440V AC± 20% (single phase)  50Hz



Output Voltage

dc 6V,8V,12V,15V,18V,24V,36V

Output Current

dc 0~1000A(adjustable)

Output current stability

≤2%

Output voltage stability

≤1%

Efficiency

≥95%

Power factor

≥0.9

Start-up postponing time

≤10s

Inverting frequency

18kHz ± 2kHz

Current limiting value

Io + 10A - 50A (Io is the rated current)

Voltage limiting value

1.01 - 1.03Vo (Vo is the rated voltage)



Product features:

1. Small size, light weight, high efficiency, high control precision.

2. High –frequency pulse current output, Suitable for plating small sized no-ferrous metal and alloy work pieces, it has high enetration ability, strong adhesive

 force, and can effectively enhance the brightness of the plated surface.

3. Output voltage and current can be adjusted, limiting voltage and current can be

adjusted,greatly enhance application flexibility of the product for users.

4. With complete protection functions, over current, over heat rotection functions.

 High power factor, less pollution to the electric network, no interference

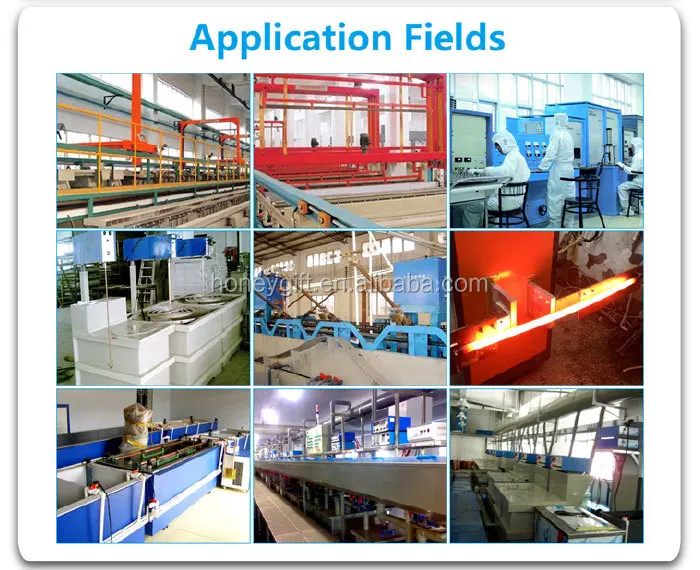

Scope of application

It is suitable for acidic copper, alkaline copper, multi-layer

nickel, Chrome ,zinc , gold ,silver , indium,rhodium, electrolysis degreasing ,

and single or double-clad plated printing process.



High frequency ac  to dc 100A 500A 1000A IGBT plating rectifier









1. All units guaranteed 12 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions.

2. Strong technical ability ensures reasonable, professional and safe design.

3. Good quality components are used.

4. Full load testing before shipment.

5. Complete protections.

6. Meet CE requirement.

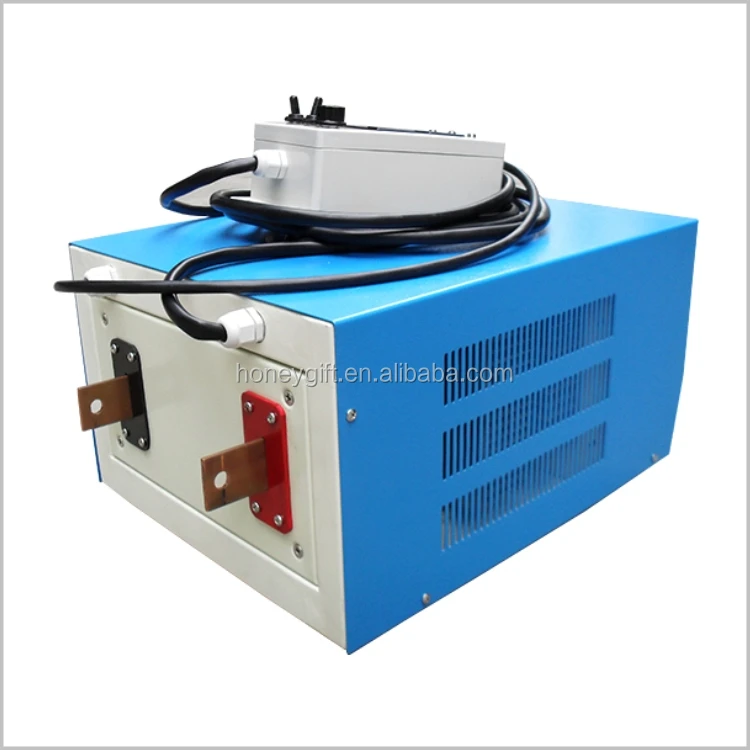

100A high frequency  plating rectifier for chrome,copper,zinc,nickel,gold,silver anti-corrosion

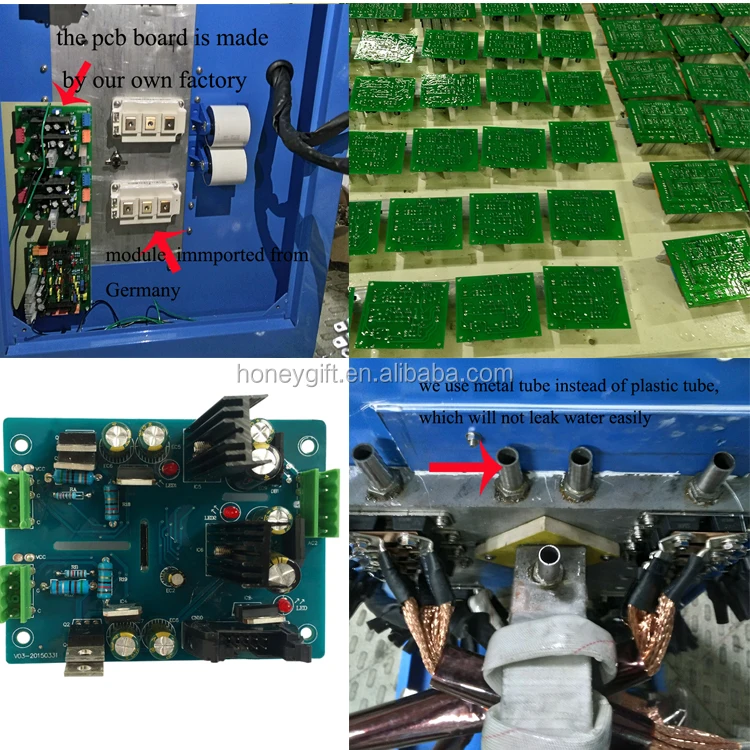

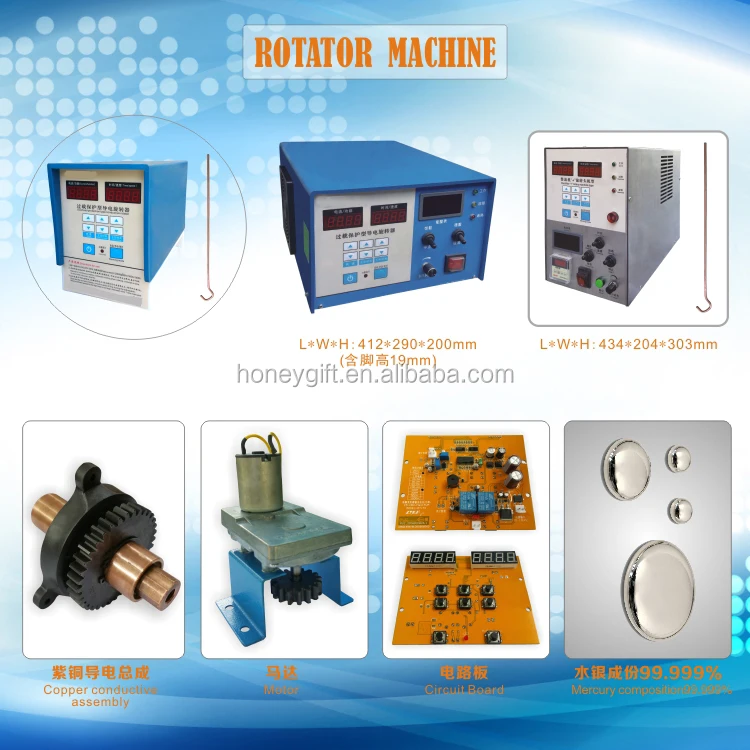

Inner details:







High frequency ac to dc 100A 500A 1000A IGBT plating rectifier Patent certification:
