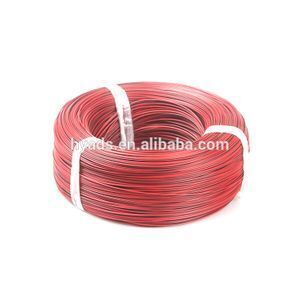

AVSS low voltage automotive wiring cable
-
Supplier: Haiyan ADS Special Cable Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Lansing Dai -
Price: $0.10 / >=1000 meters -
Min. Order: 1000 meters
| Brand Name: | ADS; | Car Make: | Car; |
| Product Name: | automotive wiring cable; | Place of Origin: | Zhejiang China; |
| Guage: | 0.3-5.0; | Usage: | Automotive; |
| Cable color: | green, yellow,blue etc.; | OE NO.: | Customers Drawing; |
| Shape: | single round; | Insulation Material: | pvc; |
| Packaging Detail: | wooden drum, transparent film,plastic reel or according to client's require; | Size: | Customized; |
| Supply Ability: | 100000 Kilometer/Kilometers per Day; | Delivery Detail: | Shipped in 20 days after payment; |
| Port: | Shanghai/Ningbo; | Conductor Type: | stranded; |
| cores: | 1; | Model Number: | AVSS; |
| Conductor Material: | BC,TC; | Warranty: | 2 Years; |
| Payment Terms: | L/C,T/T,Western Union,Paypal; |
| automotive wiring cable |
1.Rated temperature: 80℃
2.Rate value: 60V
3.Stranded tinned copper or bare
copper conductor 0.22mm-2mm
4.PVC insulation
5.Environmental testing pass ROHS
6.Use for general auto wire and cabel
CABLE CONSTRUCTION
Type | Guage | No./diameter(mm) | Insulation thiskness | OD.(MM) | Max Cond Resistance at 20℃Ω/kft |
AVSS | 0.3 | 7/0.25 | 0.4 | 1.6 | 57.50 |
0.3f | 19/0.16 | 1.5 | 48.80 | ||
0.5 | 7/0.32 | 1.8 | 34.50 | ||
0.5f | 20/0.18 | 1.8 | 38.60 | ||
0.75 | 21/0.2 | 2.0 | 25.70 | ||
0.75f | 30/0.18 | 2.0 | 25.70 | ||
0.85 | 11/0.32 | 2.1 | 20.80 | ||
0.85f | 35/0.18 | 2.1 | 20.53 | ||
1 | 32/0.2 | 2.2 | 19.50 | ||
1.25 | 16/0.32 | 2.3 | 14.30 | ||
1.25f | 50/0.18 | 2.3 | 14.70 | ||
1.5 | 30/0.25 | 2.4 | 13.30 | ||
2 | 26/0.32 | 2.9 | 8.81 | ||
2.0f | 41/0.25 | 2.9 | 8.81 | ||
2.5 | 49/0.25 | 3.1 | 7.98 | ||
3 | 41/0.32 | 3.4 | 5.59 | ||
3.0f | 61/0.25 | 3.4 | 5.59 | ||
5 | 65/0.32 | 0.5 | 4.4 | 3.52 | |
5.0f | 98/0.25 | 4.4 | 3.52 |
Packaging Details: | coil,plastic reel or wooden drum |
Delivery Detail: | according to total quantity |
Delivery Port: | Shanghai or Ningbo Port |
A: We are factory has more than 10 years manufacturing experiences.
2.Q: What certifications do you have?
A: We have UL1330,UL1332,UL1007,UL1015,UL1571,UL1569,UL1672,UL2464 and ROHS
3.Q: Where is your factory located ?
A: Building1-2(No.88 Huxi Street), Shiquan Town, Haiyan County, Zhejiang, China
4 : Q: How can I get some samples?
A: If we have in stock, within 10 meters, it is free. Or we will charge sample fee.
5 : Q: Are samples free shipping?
A: Sorry, it should be on customer side.
6: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
7: Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity.
-
