Aluminum Foil Shield LSZH Insulation Fire Alarm Cable Form China
-
Supplier: Jiaxing Dingxin Electron Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms lilian duan -
Price: $123.00 / >=10 kilometers -
Min. Order: 10 kilometers
| color: | orange; | Insulation Material: | Other; |
| Place of Origin: | Zhejiang China; | Model Number: | 1.0mm2; |
| Supply Ability: | 5000 Kilometer/Kilometers per Month; | Packaging Detail: | Plastic reel, coils, wooden drum, carton; |
| Port: | Shanghai or Ningbo; | Brand Name: | dx; |
| cable: | securiy cable; | Jacket: | PVC; |
| Payment Terms: | L/C,T/T; | Conductor Material: | Copper; |
| Application: | Other; |

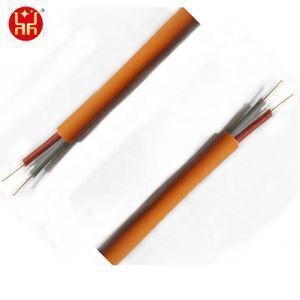

LSZH Insulation Fire Alarm Cable
1. 1x2x1/1.13mmBC
2. ID:2.2mm LSZH PVC
3. OD:6.2mm FRPVC
1) Application:Used in security systerm
2 ) Standard: AWG or according to customer’
3 )Conductor: OFC/TCU/CCA/TCCA/CCS
4) Rated Voltage: Low
5) Jacket: A variety of colors transparent PVC & Colored PVC
6) Color:Red and Black, Clear, Yellow, Blue, etc or according to customer’s request
7) Minimum order quantity: 10 kilometers
8) Price: FOB shanghai or Ningbo /C&F destination port
9) Payment: 30% advanced payment paid by T/T with 7 days after come to terms 70% payment will paid by T/T before shipment
10) Lead Time: According to the detail quantity
11) Packing: plastic reel, Coils, wooden drum, carton
12) Sample: Free sample is available for you
13) Individual Service: can print your logo or brand name on cable
Specification
S/No. | Specification |
Structure |
Outside Diameter |
SP-AL-1019 | 1*2*0.2Square | 1*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire+ Aluminum foil twist | O.D:4.9mm fire resistance PVC |
SP-AL-1020 | 1*2*0.5Square | 1*2*1/0.8mmBC+2.0mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:5.6mm fire resistance PVC |
SP-AL-1021 | 1*2*0.75Square | 1*2*1/0.97mmBC+2.2mm antiflaming PVC + 0.4TCU drain wire + Aluminum foil twist | O.D:6.5mm fire resistance PVC |
SP-AL-1022 | 1*2*1.0Square | 1*2*1/1.15mmBC+2.4mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:6.8mm fire resistance PVC |
SP-AL-1023 | 1*2*1.5Square | 1*2*1/1.38mmBC+2.8mm silicon+0.4TCU drain wire + Aluminum foil twist | O.D:7.0mm fire resistance PVC |
SP-AL-1024 | 2*2*0.2Square | 2*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:4.8*8mm fire resistance PVC (Flat Sheath) |
SP-AL-1025 | 2*2*0.5Square | 2*2*1/0.8mmBC+2.0mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:5.6*9.6mm fire resistance PVC (Flat Sheath) |
SP-AL-1026 | 2*2*0.75Square | 2*2*1/0.97mmBC+2.2mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:6*10.4mm fire resistance PVC (Flat Sheath) |
SP-AL-1027 | 2*2*1.0Square | 2*2*1/1.15mmBC+2.4mm antiflaming PVC +0.4TCU drain wire e+ Aluminum foil twist | O.D:6.4*11.2mm fire resistance PVC (Flat Sheath) |
SP-AL-1028 | 2*2*1.5Square | 2*2*1/1.38mmBC+2.8mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:7.4*13mm fire resistance PVC (Flat Sheath) |
SP-AL-1029 | 2*2*0.2Square | 2*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:5.6mm fire resistance PVC |
SP-AL-1030 | 2*2*0.5Square | 2*2*1/0.8mmBC+2.0mm antiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:6.6 mm fire resistance PVC |
SP-AL-1031 | 2*2*0.75Square | 2*2*1/0.97mmBC+2.2mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:7.1mm fire resistance PVC |
SP-AL-1032
| 2*2*1.0Square | 2*2*1/1.15mmBC+2.4mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:7.6mm fire resistance PVC |
SP-AL-1033 | 2*2*1.5Square | 2*2*1/1.38mmBC+2.8mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:8.5mm fire resistance PVC |
Our Advantage
All the cables are for export,so we familiar with the foreign customer's request of quality,there is no customer's complaint during 11 years
Our factory is small but good, compared with large companies have better price advantage and more flexible payment terms
We value every customer, pay attention to every order, better service to customers is our goal
