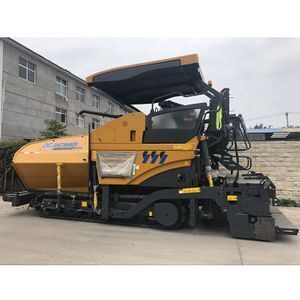

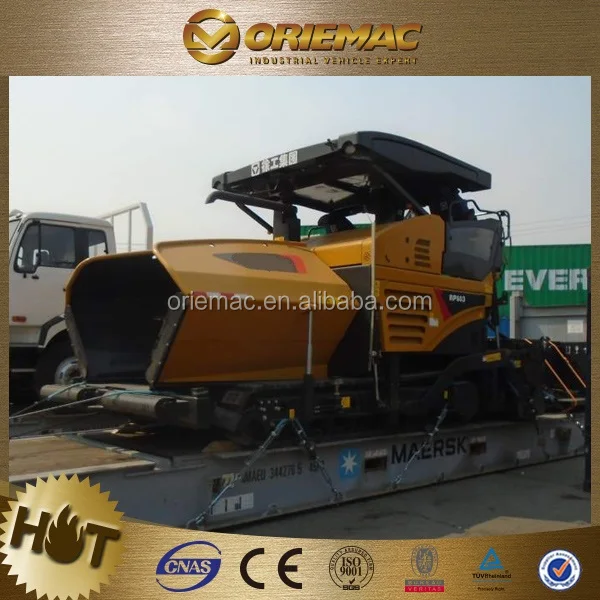

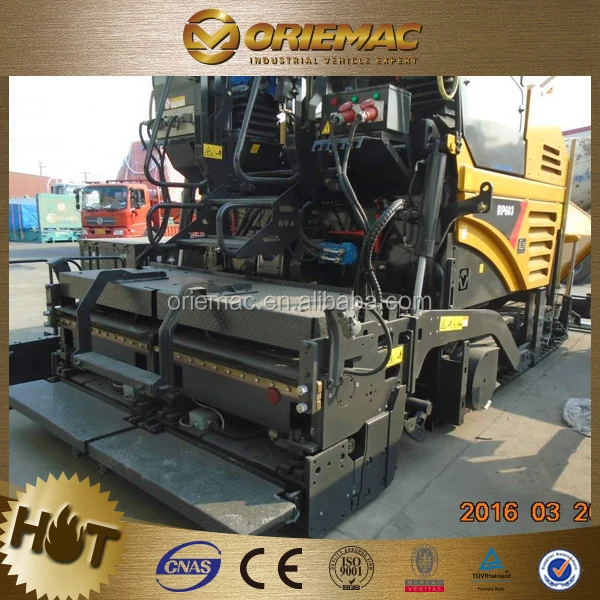

mini asphalt finisher RP603 6m asphalt paver

Supplier: Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Allan Zhao
Price: $146500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	RP603;	Weight:	18500kg;
Condition:	New;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training;
Max. paving thickness:	400mm;	Single gross weight:	18,500 KG;
Hydraulic Pump Brand:	Imported;	Brand Name:	XCM;
Power(W):	128kw;	Dimension(LWH):	668025004000mm;
Selling Units:	Single item;	Certification:	SGS . ISO9001:2008 CE;
Applicable Industries:	Manufacturing Plant,Construction works ;	Package Type:	Nude package;
Engine Brand:	SHANGCHAI;	UNIQUE SELLING POINT:	Fully hydraulic system;
Production Capacity:	400t/h;	Max. Paving Thickness:	300mm;
Place of Origin:	Jiangsu China;	Single package size:	6680X2500X4000 cm;
Engine:	SC7H175.1G3;	Paving pavement evenness:	1.2mm;
Paving speed:	0~20m/min;	Hydraulic Valve Brand:	Imported;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	1 year;

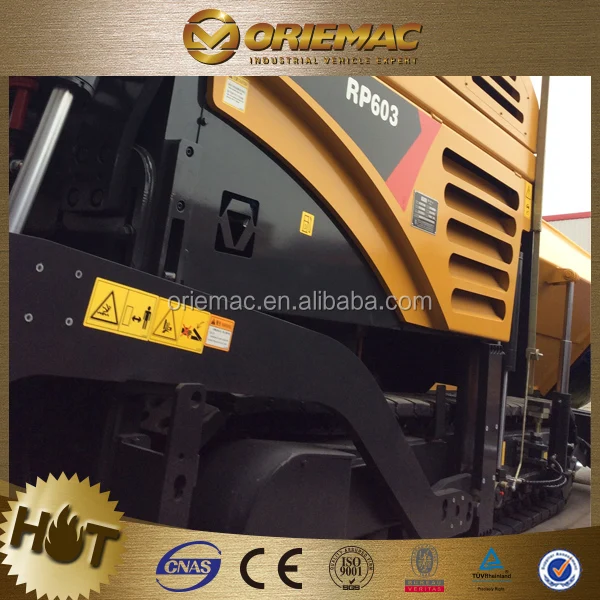

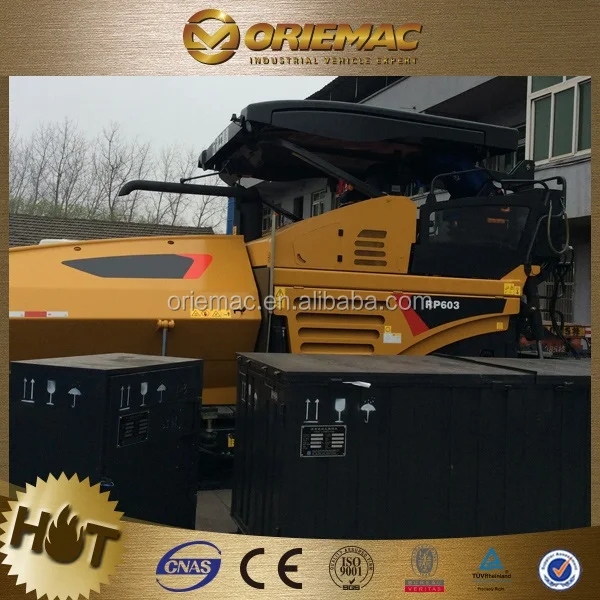

mini asphalt finisher RP603 6m asphalt paver

Features

RP603 multifunctional paver adopts multiple advanced technologies like micro-electronic control, ultrasonic sensor, automatic electronic leveling, single vibrator and gas heating, etc. And the key matching components adopt imported products, so it achieves the technical level of similar imported products in product quality and reliability. The paving width ranges from 2.5m to 6m, which can be steplessly adjusted. The ergonomical design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio, and it is applicable to the asphalt concrete paving for municipal construction and highways of various grades.

Parameters

Items	Unit	Parameters
Basic paving width	m	2.5
Max. paving width	m	6
Max. paving thickness	mm	400
Paving speed	m/min	0~20
Travel speed	km/h	0~3.0
Theoretical Productivity	t/h	400
Hopper Capacity	t	14
Gradeability	%	20
Pavement evenness	mm/3m	3
Transverse levelling accuracy	%	±0.03
Centre crown ratio	%	0~+3
Engine model		SC7H175.1G3
Engine power	kW	128
Engine speed	r/min	2200
Machine weight	t	18.5
Dimension	mm	6680X2500X4000
Vibrator speed	r/min	0~1470
Screed heating		Electric heating
Auger and conveyor control		Automatic Control by Ultrasonic Sensors
Automatic levelling control		Simulation control of electronic automatic leveler
