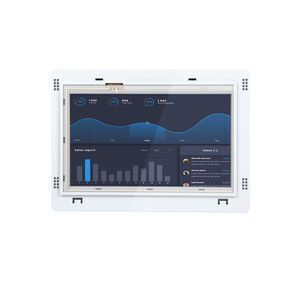

High Performance Industrial Touch Panel Master Hmi Display

Product details
Software:PIStudio(free);Panel Type:TFT;
Packaging Detail:plastic bagged per piece of hmi touch screen, packed with carton;Port:Fuzhou;
Payment Terms:T/T,Western Union;Type:7 inch TFT;
Supply Ability:3000 Piece/Pieces per Month;Resolution:800*480;
Stock:in stock;CPU:Cortex A7 528MHz;
Protection:IP65 (front panel);Model Number:PI3070i-SL;
Brand Name:WECON;Serial port:2 serial ports, RS232/RS485/RS422;
USB:host and device;Place of Origin:Fujian China;
Touch panel:Resistive Touch;

Product Description

industrial lcd


ModelPI3070i
General Screen Size7 Inch
Resolution800*480
Colors16000K colors
Brightness250cd/m2
Backlight TypeLED
Touch ScreenHigh procision four-wire resistive

Backlight Life

Time

50000 hours
CPUCortex A7 528MHz
Storage128M FLASH + 128M DDRAM
USB PortUSB host + USB Client
COMCOM1RS422/RS485
COM2RS232
PowerPower<8w
Power SupplyDC 24V ( 12~28V DC )
DimensionShellPC+ABS
Dimension (mm)201.2W*147.2H*39.0D
Mounting size (mm)192.0W*138.0H
Net/Gross (KG)0.51/0.74
Operate EnvironmentTemperatureWorking Temperature : -10~60℃ ; Storage Temperature : -20~70℃
Humidity 10-85%RH (Non-condensing)
Seismic Resistance

IEC61131-2 standard

Continuous vibration occasion: 10Hz~57Hz 0.075mm, 57Hz~150Hz 9.8m/s2

Discontinuous vibration: 10Hz~57Hz 0.035mm, 57Hz~150Hz 4.9m/s2

X, Y, Z in 10 directions each (80 minutes)

CoolingAir cooling
ProtectionIP65 ( Front panel )

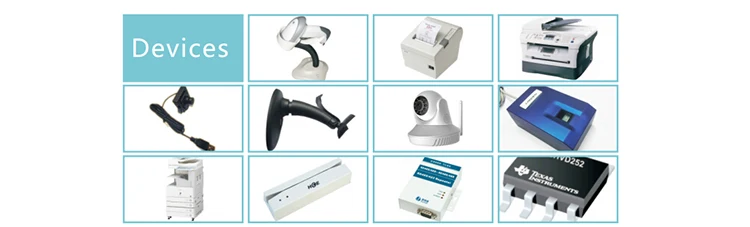

Device supported



                                        • USB Camera                                                                              • Laser printer (developing)

                                        • WEB camera                                                                               • Network printer (developing)

                                        • WiFi                                                                                                • USB fingerprint scanner (developing)

                                        • CAN DEVICE                                                                               • Micro printer(developing)

                                        • RS232/RS485/RS422                                                                • USB scanner(developing)

                                        • IC card/stripe reader (developing)                                        • Serial scanner(developing)







PROGRAMMING SOFTWARE

PIStudioU- Programming Software,it is totally free for its user.

Download link:http://www.we-con.com.cn/en/download/softwares/pi-series-hmi/



Multi-protocols

Multi-protocols

Wecon PIStudioU- Human Machine Interface (HMI) Programming Software
It has been designed as a programming tool for the Wecon HMI. PIStudioU allows displaying or editing multi language for HMI screen. And it is totally free for all its user.



PLC SUPPORT
+



Brand

Supported Model / Protocol

Wecon

LX Series PLC / User-Defined Protocol

Allen-Bradley

MicroLogix 1000/1200/1400/1500  SLC 5/03 5/04 5/05 PLC-5

DF1 CompactLogix 1769 series

ABB

PM 571/581/591

Yudian

BoTa AIBus Protocol

CANBus

Open CAN / CAN J1939

Crouzet

M3 FBD

Danfoss

FC Series / GLP-NV

Delta

DVP EH/ES/SS/EX/EH2/SV/SA/SC/SX Series

Emerson

DKG2 / EC20 series 984 RTU Slave Modbus

Fuji

SPB NB

FB

FB RS484 Protocol

Fatek

FBs-xx-MA / MC / MN FBe-xx-MC / MA FBn-xx-MCT

Facon

FB Series RS232 (RS232-RTS) / RS485 Modbus

IDEC

FC4A-C10R2

ICPDCS

I-7000 Series

Koyo

K / Direct Series

Keyence

KV Series

LG

K120S / K300S / KCNet / XGB / LG-Bus ASCII

Omron

HostLink / CPM1A / CQM1H / C / CP1E / CP1H / CS1 / CV / CJ1M / CS1H / E5 Z

Panasonic

FP NEWTOCOL

Mitsubishi

FX1N / FX2N / FX3U / Q02H / QJ71 / MELSEC Q / L02 /

Shinko

CxT series / DCL / PC-900

Schneider

Electric Twido Modbus / Modicon Modbus RTU

IMD H00

IMD H00 ModBus RTU Slave

TECO

TP01 / TP02 / TP03 Series

Hollysys

LK / LM Modbus Tcp

Yaskawa

NS600 Modbus / Sepvopack Sgdm Modbus / Memobus / MP Series

Yokogawa

FA-M3 Series Modbus

Regin

Regin PLC

LG

K120S / K300S

Inovance

Whole Series

Modbus RTU

Slave / Master

Modbus ASCII

Slave / Master

Modbus TCP / IP

Slave / Master

Vigor

Vigor PLC
