100n 120n 150n Furniture Lift Gas Spring For Bed

Supplier: Changzhou Double Spring Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Anny Zhang
Price: $0.50 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Certifications:	ISO9001:2008;	Brand Name:	Dspring;
Supply Ability:	100000 Piece/Pieces per Month;	Place of Origin:	Jiangsu China (Mainland);
Load Type:	Gas;	Cylinder:	22mm;
Packaging Detail:	1pcs/bubble pack or poly bag, 50pcs/carton or according to your requirements 100n 120n 150n Furniture Lift Gas Spring For Bed;	Model Number:	YQL;
Length:	200mm;	Style:	Cylinder;
PISTON ROD:	10mm;	Surface treatment:	Paint Spraying;
Color:	Black or Silver;	Product name:	bed lift gas spring;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Application:	Home Appliance;
Material:	Steel;	Packing:	Inner Plastic Bags;
Stroke:	40mm;	Port:	Shanghai or Ningbo;
Usage:	Furniture;

100n 120n 150n Furniture Lift Gas Spring For Bed

Gas spring Specifications

1. Gas: Nitrogen(99.999%).

2. Material: finishing rolling seamless steel tube for cylinder, steel for piston rod.

3. Surface: spray painting for cylinder, chrome plating for piston rod.

4. Color : black, white, silver or as your requirement.

5. Quality: 100,000 cycles; ISO/TS16949; ISO9001:2008.

6. Operating Temperature Range: -15~+80ºC(5~176ºF)as standard; -50~+80ºC(-58~+176ºF) or -15~200ºC(5~392ºF) available.

Model No.	Extended length/mm	Stroke/mm	Cylinder Dia/mm	Piston rod Dia./mm	Min Froce/N
YQL001	113	30	12	4	35
YQL002	160	50	12	4	50
YQL003	219	80	12	4	40
YQL004	160	40	15	6	50
YQL005	200	60	15	6	60
YQL006	220	65	15	6	75
YQL007	245	70	15	6	190
YQL008	250	90	15	6	50
YQL009	250	90	15	6	70
YQL010	250	90	15	6	80
YQL011	250	85	15	6	100
YQL012	280	100	15	6	90
YQL013	330	120	15	6	40
YQL014	380	140	15	6	100
YQL015	247	80	18	8	250
YQL016	280	100	18	8	250
YQL017	300	100	18	8	200
YQL018	350	130	18	8	150
YQL019	380	140	18	8	70
YQL020	400	150	18	8	150
YQL021	435	170	18	8	130
YQL022	450	180	18	8	340
YQL023	510	210	18	8	200
YQL024	550	220	18	8	300
YQL025	700	290	18	8	350
YQL026	200	40	22	10	500
YQL027	310	110	22	10	400
YQL028	350	130	22	10	200
YQL029	380	140	22	10	180
YQL030	450	170	22	10	700
YQL031	500	200	22	10	300
YQL032	600	240	22	10	400
YQL033	730	300	22	10	430
YQL034	280	100	25	12	900
YQL035	280	100	25	12	1350
YQL036	820	260	25	12	850
YQL037	640	260	28	14	1100
YQL038	1000	305	28	14	1500

Extended length/mm	Stroke/mm	Cylinder/mm	Piston rod Dia./mm	Min Froce/N
110-220	30-80	12	4	10-100N
160-380	40-140	15	6	10-300N
247-700	80-290	18	8	50-700N
200-730	40-300	22	10	100-1500N
280-820	100-260	25	12	100-1400N
1000-2000	300-900	28	14	100-3000N

Note: As above are parts of specifications. We also produce based on your needs so that choose the suitable connector, size and force which suit your own needs please

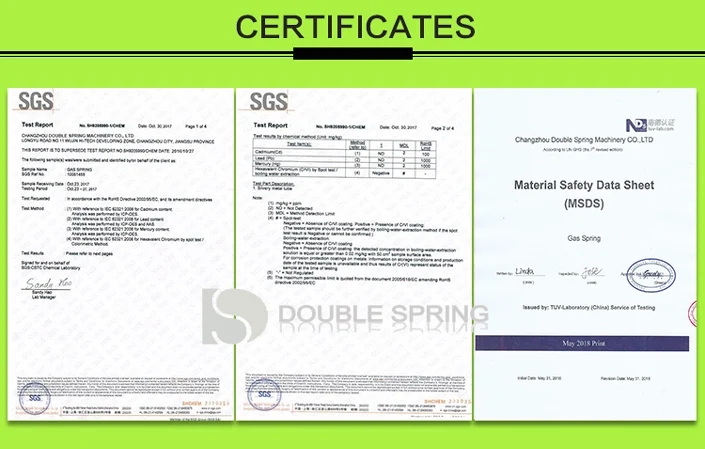

Gas spring Certifications

Packing

Company

Why choose us?

1.Competitive price Advantage

2.Full REFUND in case of Bad quality OR Late Delivery

3.Payment By Paypal, Western Union, TT etc we all can accept.

4.Confidentiality Agreement " Business Secret CONTRACT "

5.Quality Assurance CONTRACT

6.Sample Offer & Small Order Welcomed

FAQ

Q: What is your factory product range?

A: Lift Gas Spring, Lockable Gas Spring, Stainless Steel Gas Spring, Cabinet Gas Spring ,Liner actuator,Damper and End Fittings etc.

Q: What’s your MOQ of this gas spring?

A: 100pcs.Small quantity is is also ok.

Q: Can i make my own brand name?

A: Yes, of courser. OEM service is available for you.

Q: What is the lead time?

A: Normally 5-10 days, the lead time is according to the quantity.

Q: How do i know the products' quality and the packing ways are the ones we required?
A: Each product will be tested before sending out. We will send you photos for the goods to confirm again.

Q:How to assure the quality ?
A:Firstly, all of our materials and components pass the serious China Quality Standard and Control

Secondly, all of our finished products should pass quality Check System before export.

Thirdly, our products can be provided to test and cetify by Authories according to customer's special needs.
