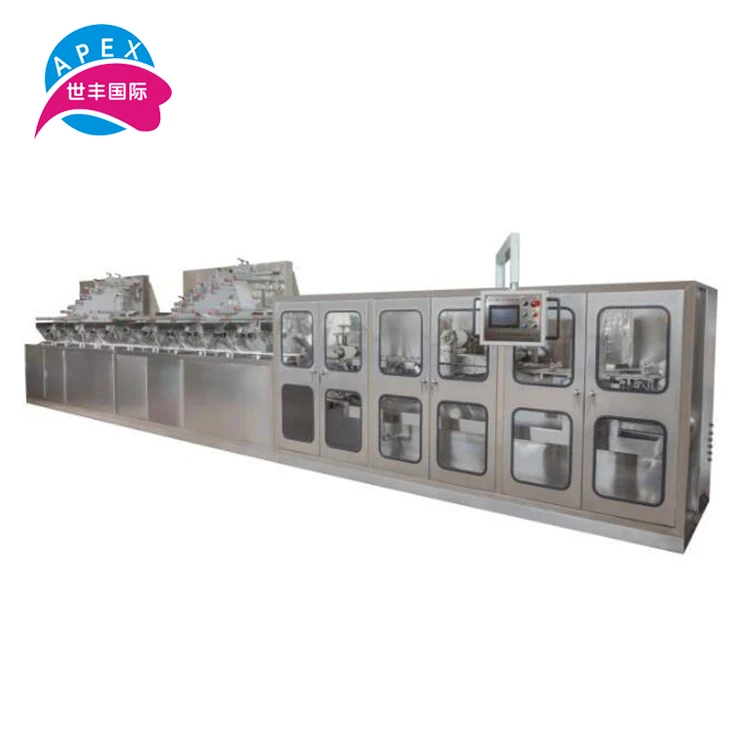

High speed wet tissue production line cheap price baby wet wipes folding machine HY-2800

Product details
Delivery Detail:45 days after confirmed order;Packaging Detail:Wooden packing as customer's requirement;
Brand Name:Huayang;Payment Terms:L/C,T/T,Western Union;
Certification:CE Certificate;After-sales Service Provided:Engineers available to service machinery overseas;
Port:Xiamen or as customer's required;Piling system:Servo motor;
Warranty:One Year;Suitable raw material:Air laid paper,spunlace/hot-rolling nonwoven fabric;
Folding way:"Z" shape(pop up and non-pop up);Size of raw material:(1000-1250)x1000 (mm,WxDia);
Power(W):8KW;Model Number:HY-2800;
Wet tissue unfolded size:(140-260)x(150-250) (mm,LxW);Supply Ability:5 Set/Sets per Month;
Material supply system:Servo motor;Wet tissue folded size:(140-260)x(90-110) (mm,LxW);
Weight:4500KG;Production speed:250-350 cuts/min (3000-4000 pcs/min );
Dimension(L*W*H):9600x3300x2000(mm,LxWxH);Voltage:380V 50HZ;
Condition:New;Cutting system:Converter motor;
Product name:Wet tissue production line baby wet wipes folding machine HY-2800;Place of Origin:Fujian China;

Product Description

High speed wet tissue production line cheap price baby wet wipes folding machine HY-2800

Product speed250-350 cuts/min (3000-4000 pcs/min )
Suitable materialSpun-lace non-woven fabrics, Hot-rolling non-woven fabrics.
Quality of material35g/~80g/
Wipes size(ufold)(140-250mm)*(150-250mm)(L*W)
Wipes size(folded)( 140-250mm)*(90-110mm)(L*W)
Folding wayZshape folding ( Non pop up and pop up)
Machine size(mm)9600*3200*2000(L*W*H)
Water tank size(mm)800*800*1800MM(400L) , 2 sets
Weight of machine(kg)4500KG
Packing partPacking film punching label small label product begin forming at formet center seal and cutting product output



Production flow:unrolling → slitting fabric into lanes → folding → wetting → cutting → pile & counting →delivering

Main technical parameter:(suitable to wet tissue for large size packing)
Product type:baby wipes(non cross folding)
Product speed: 250-350 cuts/min (set on PLC)
Suitable raw material:air laid paper, spunlace/hot-rolling nonwoven fabric
Weight of raw material:40-80 gsm
Folding way:"Z" shape (pop up and non-pop up)
Cutting unite:A.double paper shelves;B.10 lanes or 12 lanes,2 rolls;C.raw material roll width:900~1000mm
Length of wet tissue:140-260mm (setting via touchscreen)
Size of raw material:(1000-1250)×Ø1000 (mm,W×Dia)
Wet tissue unfolded size:(140-260)×(150-250) (mm,L×W)
Wet tissue folded size:(140-260)×(90-110) (mm,L×W)
Material supply system:Servo motor
Cutting system:Converter motor
Piling system:Servo Motor
Power supply:380V 50HZ
Power:8KW
Size of machine:9600×3300×2000(mm,L×W×H)
Weight of machine:5000 kg
Water Tank:400L 2pcs
Optional making:HY-360 wet wipes packing machine





Company Information

Packaging & Shipping



FAQ

1. I want to launch a factory manufacturing baby diapers, what should I do in the first start?

A. do the market research for the baby diaper you want to produce

B.We will offer you the cost report in details according to your sample, thanks to which you can easier calculate the profitability metrics.

2.Is it possible to see your machine running when we inspect your factory?

You are warmly to welcome to visit our factory. We will show you how the machine is running on the site. And we can also show you how our machine is running at one of our local customers'factory if you are interested.

3. Will you help us train our workers?

you can send technicians to our factory to train them how to operate the machine before the delivery at your production site. You are offered full accommodation by our company.

When the baby diaper machine arrives at your workshop, we send technician to your workshop to install and test the machine and train your workers.

If you need one technician to work for you for a long span of time, we can assist you in hiring experienced staff.

4. We did not know raw materials and will you help us?

Yes, we have professional person in raw materials business for many years.
We can do some help to check your samples and give suitable solution for your different demands.

We also have good relationship with materials suppliers and we can introduce them to you

5. What warranty do your machines have?

Our machines carry a 12 month conditional warranty, excluding quick-wear parts

6.Why should I choose your factory?

1.We have many years experience in manufacturing hygienic product machine

2.We managed to achieve high technological advancement of our production lines.

3.Technicians have been to numerous countries worldwide to offer after-sales services in our customers'factories. So they are very experienced and skillful.

4.You can compare our technical paremeters of our machines versus other suppliers'equipment- you will discover that the technological advancement and price are very attractive.

5.Spare parts to our machines are produced using CNC(computerized numerical control) with high precision, it makes machines servo longer and they are more stable under high-speed running.
