Electric Forklift 1ton, 2ton,3ton, 3.5ton Capacity Fork Lift Truck Hydraulic Stacker Trucks

Supplier: Taixing Jichuan Hydraulic Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lily Chen
Price: $4950.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	Electric Forklift 1ton, 2ton,3ton, 3.5ton capacity;	Overall Dimensions:	338011502000;
Pump motor power:	Direct current;	Supply Ability:	100 Piece/Pieces per Month Electric Forklift;
Loading Capacity:	500-3500kg;	Weight:	820-5600kg;
Drive motor power:	Direct current;	Showroom Location:	None;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty:	1 year;
Brand Name:	YILI;	Certification:	CE/ISO9001;
Color:	All accept;	Packaging Detail:	Electric Forklift 1ton,2ton,3ton,3.5ton capacity packed in woden box or as your request.;
Parking brake:	Machinery-manual type;	Model:	CPD;
Port:	Shanghai port;	After-sales Service Provided:	Online support;
Power Souce:	AC Motor;	After Warranty Service:	Video technical support;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Min. Lifting Height:	135mm;
Fork Width:	180mm;	Key word:	Electric Forklift;
Place of Origin:	Jiangsu China;	Power type:	All electric;
Fork Length:	3380;	Local Service Location:	None;
Max. Lifting Height:	3995;	Condition:	New;

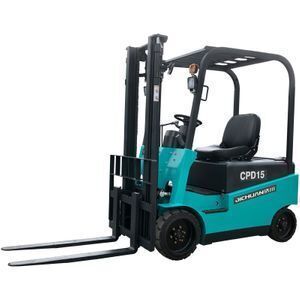

Electric Forklift 1ton, 2ton,3ton, 3.5ton Capacity Fork Lift Truck Hydraulic Stacker Trucks

Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

Model		CPD10	CPD15A	CPD20A	CPD25B	CPD30A	CPD50
Power type		Storage battery	Storage battery	Storage battery	Storage battery	Storage battery	Storage battery
Rated load	kg	1000	1500	2000	2500	3000	5000
Load center distance	mm	480	500	500	500	500	600
Lifting height	mm	3000	3000	3000	3000	3000	3000
Free lifting height	mm	150	150	150	150	150	150
Fork size	mm	920×100×30	1070×100×35	1070×100×40	1070×120×40	1070×120×45	1220×150×55
Door frame dip angle		43628	43628	43628	43628	43628	43628
Min.turning radius	mm	1300	2000	2300	2300	2500	2750
Minimum right channel width	mm	2000	2300	2500	2500	2800	4290
Min .height off the ground	mm	90	90	90	90	90	150
Height of retaining feame	mm	1950	2000	2170	2170	2170	2350
Distance from seat surface to top shieid	mm	970	1000	1005	1005	1005	1400
Maximum travel speed	km/h	43813	43813	43813	43809	43813	14/13
Max.lifting speed	mm/s	340/280	340/280	340/280	340/280	390/360	410/250
Maximum climbing ability	%	12	12	12	15	12	15
overall no fork	mm	1700	2080	2380	2380	2600	2950
overall width	mm	1000	1050	1150	1200	1250	1510
Maximum lifting height of forklift	mm	4000	4000	4000	4000	4000	4180
Gantry height	mm	2020	1990	2080	2080	2080	2180
Front tyre		18×6×121/8	18*6	6.50-10	23×9-10	23×9-15	8.25-5
Rear tyre		15×5×111/4	15*5	5.00-8	18×7-8	18×7-8	7.00-12
Wheelbase	mm	1020	1080	1380	1380	1680	1940
Wheel distance front / back	mm	740/800	890/920	900/960	900/960	1000/980	1250/1200
Self-weight without load, battery	kg	1410	2050	2610	2800	2980	5800
Storage Battey VOltage /Capacity	V/Ah	48	48	48	48	72	80
Motor walking	KW	4	5.5	5.5	10	10	17
Motor lift	KW	3	5.5	5.5	12	7.5	20
Controller		Curtis	TF	TF	FJ	TF	SZ
control method		AC+DC	AC+DC	DC	AC	DC	AC
battery		160AH	6V×8	6V×8	2V×24	6V×8	2V×40
			240AH	240AH	500AH	240AH	500AH

FAQ

Any questions, welcome to contact us, we ill be always help you and support you.
May I know how soon I can get the machine after I transfer the deposit?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
How long the product warranty period?
The product warranty period is 12 months.
How long have you engaged in this industry?
We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
Processing equipment:CNC laser cutting equipment, CNC plasma cutting equipment, CNC flame cutting equipment, numerical control sheet metal processing equipment, 500 tons of hydraulic press,bending machine etc.
