Analyzer: | TOC Analyzer; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Gas Requirement: | Oxygen/Nitrogen≥99.995%; | Brand Name: | biobase; |
Port: | Qingdao; | Packaging Detail: | Carton or wooden box or as required.; |
Operation: | PC Control; | Detector: | NDIR; |
Detection Limit: | 50μg/l; | Measurement Range: | 0-30000mg/l; |
Digestion: | High Temperature Combustion; | Supply Ability: | 1200 Unit/Units per Month; |
Application: | Liquid Sample,Gas Sample,Solid Sample; | Model Number: | BK-TOC-II; |
Place of Origin: | Shandong China; | Repeatability: | 3%; |
Parameters: | TC,TIC,TOC,NPOC; |
Biobase High Quality Lab Use Total Organic Carbon Analyzer TOC Analyzer

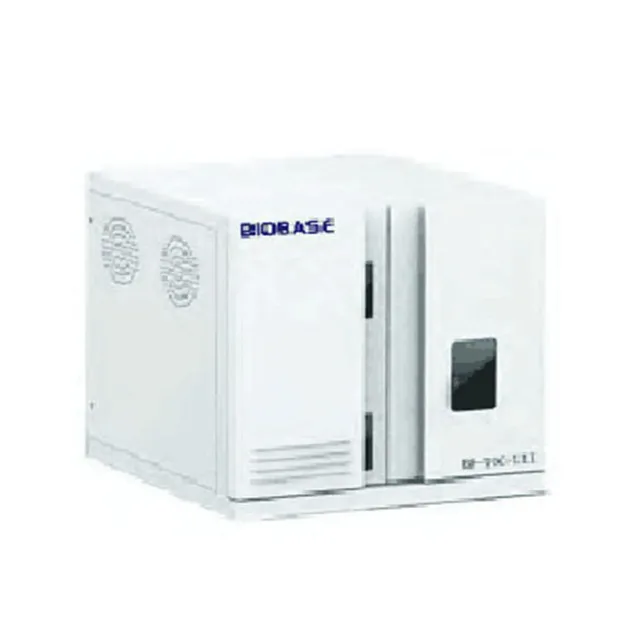

1. Picture show of TOC Analyzer
2. Features of TOC Analyzer
eatures of TOC Analyzer
*Signal management system with our own patent law which has great advantages of online setting, real-time monitoring, self testing and flow rate control to ensure high performance and safe operation.
*Low current system design also ensures operation safety.
*Different temperature setting for various samples ensures complete sample digestion so as to get more accurate
measuring data.
*Adjust cooling module power according to sampling volume which improves drying performance to ensure dry gas
into the detector.
*Automatic leakage prevention system to avoid operation mistakes and improve instrument performance, so as to
ensure operation safety and instrument's safety.
*Flow rate controlling system to avoid any effect caused by flow rate fluctuation which ensures accurate data.
*TOC detector with 24 bits data solution extends monitoring range. Controlling system with 32bin process- ing
technology greatly improves performance.
3.Technical Parameters of TOC Analyzer
Model | BK-TOC-II | BK-TOC-III |
Detector | NDIR | |
Parameters | TC,TIC,TOC,NPOC | |
Digestion | High Temperature Combustion | Wet Chemical Oxidation by UV |
Operation | PC Control | |
Application | Liquid Sample,Gas Sample,Solid Sample | Liquid Sample,Gas Sample |
Gas Requirement | Oxygen/Nitrogen≥99.995% |
|
Measurement Range | 0-30000mg/l
| 0-10000mg/l
|
Detection Limit | 50μg/l | 5μg/l |
Repeatability | 3% | Nitrogen≥99.995% |
Maximum Salinity | 85g/l | |
Power | AC 220V,50Hz or AC 110V,60Hz | |
Size | 430*455*440mm |
4.Certification of TOC Analyzer
Welcome to conatct with me at any time!
Joan Liu ( Sales Representative): sales95(at)biobase.cc
