Miniature Stepper Drivers for Nema17, Nema23 and Nema34

Product details
Delivery Detail:5 working days;Packaging Detail:carton or bag;
Supply Ability:1000 Piece/Pieces per Month;Payment Terms:T/T;
Stepper Driver:Integrated;Port:Shanghai;
Model Number:UIM;Brand Name:UIROBOT;
Place of Origin:Shanghai China (Mainland);

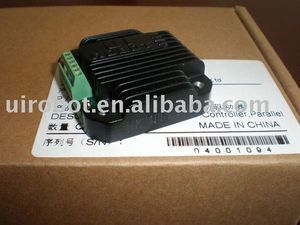

1.UIM240 parallel port step driver
2.Miniature Size 42.3mm*42.3mm*13.5mm
3.PWM constant current, 2 A /4A/8A.

Parallel port PWM chopper constant current two-phase hybrid stepping drive Features:



Miniature Size 42.3mm*42.3mm*13.5mm NEMA 17 Frame Size could be mounted on NEMA 17, 23, 24 and 34 stepper motors.

Integrally designed to fit onto motors seamlessly, as well as work standalone

10-40VDC supply, Max 2A/4A/8A adjustable output current, 1to16 Microstepping

Dual H-bridge with PWM constant current control,

Enable/shutdown controllable

Opto-isolated inputs with common anode.

Die-cast aluminium enclosure



Stepping drive Overview



UIM24002/24004/24008 stepping drive are a series of miniature, high performance stepper motor controller.  They can be mounted onto NEMA17, 23, 34 and 42 stepper motors seamless through corresponding flanges.  The thickness of these stepper motor driver is less than 14mm, UIM 24002 is capable to provide 0.5-2A adjustable current. UIM 24004 is capable for 1.6-4A adjustable current output. UIM24008 is capable for 2A-8A.adjustable current output.  Their mixed-decay current control reduces the back-EMF effect under high speed  running condition and improves the performance. Except the UIM24002 takes 10-35VDC input, UIM240xx series stepper motor driver can work with 12 to 40VDC input.. Enclosures of the UIM240xx stepper driver are made of die-cast aluminum which provide a rugged and durable protection and improve the heat dissipation..



Absolute Maximum Rating

Supply Voltage 12~40VDC (10~35VDC for UIM24002)

Current input at logic pins:  +/- 30mA

Storage Temperature  -20 - +125

Operating Temperature -20 - +85



Note: Stresses beyond these listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.



Electrical Characteristics (Ambient Temperature Ta = 25)

Supply Voltage: 12-40V DC  (10~35VDC for UIM24002)

Output Pahse Current: Max 2A/4A/8A (1)

Current Control:  Constant, PWM control

Microstepping: Full-, Half-, Quarter- and 16th-step (2)

Photocoupler Isolation voltage: 2500 Vrms (min)

Photocoupler Input current:  MAX +/- 45mA

Note:

(1)   adjustable through on-board POT

(2)   adjustable through on-board DIP switch

Communication: 3-wire, Step, Direction, and Enable signals



Handling, Storage and Size:

Cooling Type: Free air

Working Environment:      Free of heavy dust, oil mist and corrosive gas

                        Ambient Tempareture: -20 +50

                        Humidity: Lower than 80%RH, no condensation and frost

                        Vibration: 1G Max

Storage Tempareture: -20 - +125





Dimensions: 42.3mm*42.3mm*13.5mm

Weight: 0.1kg

Micro-stepping Motor Driver



Further more stepper controller with rs232 and can bus stepper controller and smart self-pulsing stepper controller are available.
