Weight: | 3200KG; | Grain Impurity Rate: | ≤4%; |
Engine Power: | 65kW; | Application: | Rice; |
Place of Origin: | Zhejiang China; | Showroom Location: | Philippines,Indonesia; |
Feeding Capacity: | 4.5KG/S; | Brand Name: | Wishope; |
Key Selling Points: | High Productivity; | Lose Rate: | ≤5%; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Drive Type: | Gear Drive; |
Applicable Industries: | Machinery Repair Shops,Farms; | Local Service Location: | Philippines,Indonesia; |
Packaging Detail: | 20" GP:1SET GROSS WEIGHT:3200KGS MEASUREMENT:21CBM 40" HQ:3 UNITS GROSS WEIGHT:9600KGS MEASUREMENT:63CBM; | Usage: | Grain Harvester; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Cutting Width: | 2180 mm; |
Warranty: | 1 year; | Type: | Combine Harvester; |
Minimum Ground Clearance: | 325mm; | After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; |
Dimension(L*W*H): | 4850mm*3200mm*2500mm; | Condition: | New; |
Port: | Shanghai; | Grain Breakage Rate: | ≤0.2%; |
Rubber Track Width: | 90mm*53/56*400mm/450mm/550mm; | Productivity: | 0.25-0.65 hm2/h; |
Product Name: | 4LZ-4.5 Full Feeding Kubota Similar Rice Combine Harvester Machine; | Supply Ability: | 500 Unit/Units per Month; |
Certificate: | CE; |

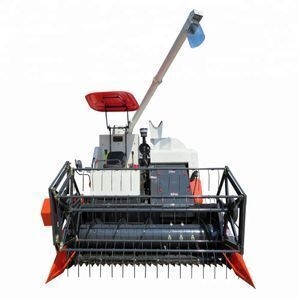

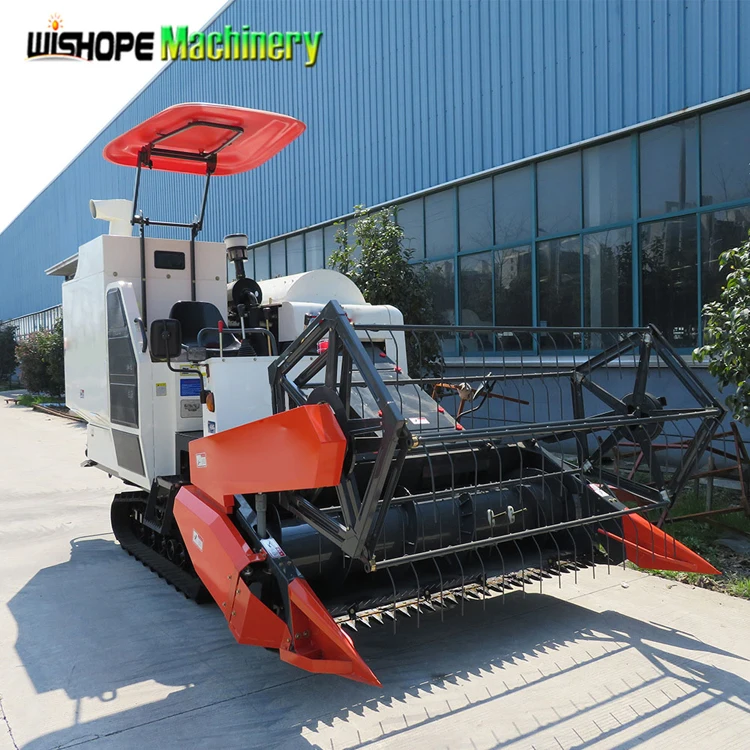

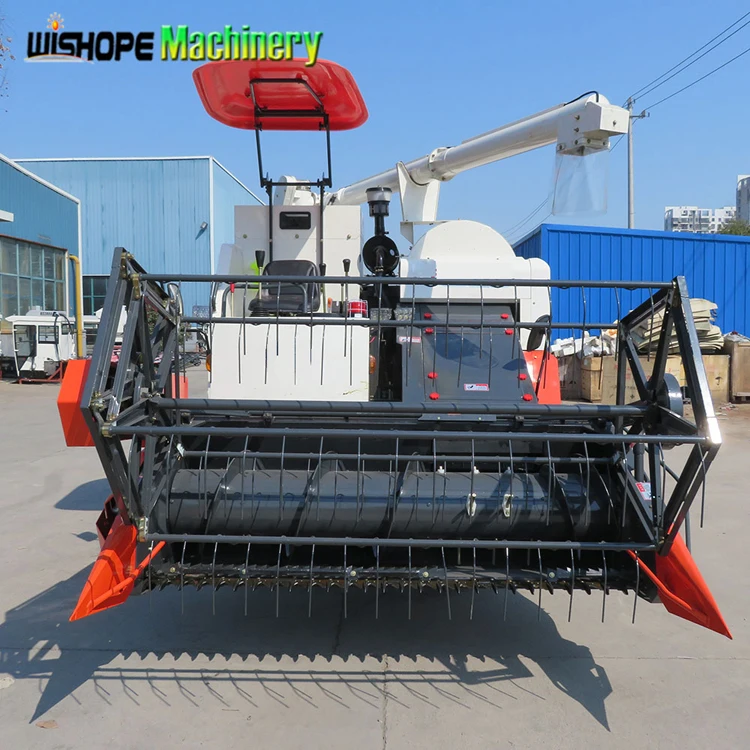

4LZ-4.5 Full Feeding Kubota Similar Rice
Combine Harvester Machine
4LZ-4.5 Full Feed Kubota Similar Combine Harvester Machine
Engine | / | Type: 4-Cylinder, Vertical Engine, Water Cooled, DI-Injection, Turbocharged Engine |
kW | Rated Power: 65 | |
r/min | Rotating Speed: 2400 | |
Feeding Capacity | kg/s | 4.5 |
Minimum Ground Clearance | mm | 310 |
Operation Speed | km/h | 1.8 to 5.3 |
Productivity | hm2/h | 0.25 to 0.65 |
Fuel Consumption | kg/hm2 | 18.5 to 40 |
Cutter Type | / | Standard Type II |
Cutting Header Auger Type | / | Telescopic Transverse Conveyor Auger |
Reel | / | Type: Eccentic Tooth (off center) |
mm | Diameter: 1000 | |
pc | Quantity: 5 | |
Threshing Roller | pc | Quantity: 1 |
/ | Type: Vertical Axis Flow Spike Tooth | |
mm | External (D*L): 655*1877 | |
Concave Sieve Type | / | Grid |
Brake Type | / | Wet Friction Plate |
Fan | / | Type: Centrifugal |
mm | Diameter: 346 | |
pc | Quantity: 1 | |

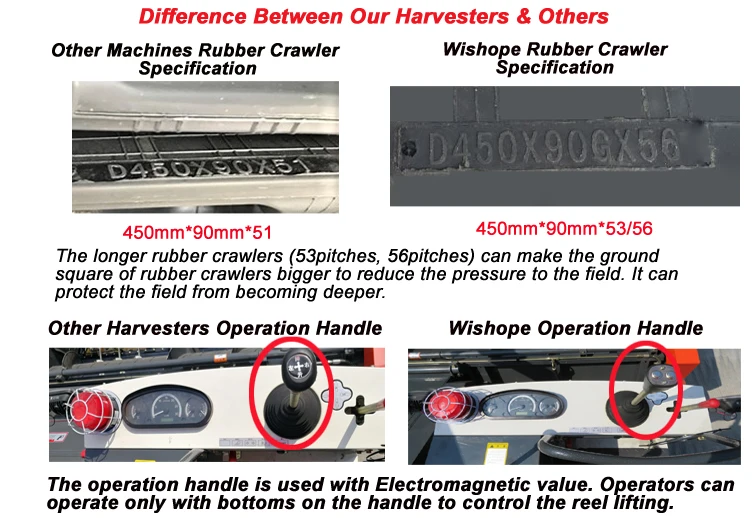

Rubber Crawler | / | Size: 450mm*90mm*53/56 |
mm | Track Gauge: 1190 | |
Rethresher Type | / | Auger Spike Tooth |
1. 1600L big grain tank and manual collector are optional. Max storage capacity is 1300kg grain in working.
2. The 360 degree type pipe can reach 4000mm, which is more convenient and flexible.
3. Low losing rate, high purity rate.
FAQ:
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
For combine harvester: 1 set 4LZ-4.5/5.0
For Power Tiller: 18 sets GN12; 20 sets M80
For Spare Parts: 15-18 tons
(2) 40 High Cube Container Loads:
For Combine Harvester:
3 sets 4LZ-4.5/5.0
For Power Tiller: 40 sets GN12; 50 sets M80
For Spare Parts: 30-35 tons
5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering department will study and offer you the suitable solution.
