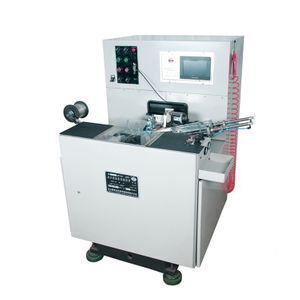

4 axis German CNC Tufting Toothbrush Manufacturing Machine

Supplier: Guangdong Chuangyan Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jan LI
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Tufting Method:	Anchor Wire;	Production Capacity:	13 holes/second;
Weight:	900kg;	Warranty:	1 Year;
Brand Name:	Chuangyan;	Driving Motor:	Ordinary Motor;
Spinder Quantity:	4 Axis;	Packaging Detail:	EXPORT WOODEN PACKING;
Brake Motor:	Japan's Fuji;	Place of Origin:	China;
Computer:	Touch screen LCD;	Power(W):	2.2KW;
Control System:	CNC Controller;	Air Source Input:	0.4-0.5MPa;
Condition:	New;	Function:	Flocking hair and trimming;
Dimension(LWH):	120011501340(mm);	Application:	Make Toothbrush;
Applicable Industries:	Manufacturing Plant;	Supply Ability:	20 Unit/Units per Month;
Automatic Grade:	Automatic;	Gross Weight:	900kg;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	Patent Certificate;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Cash payments for offline orders.;	Port:	Shantou;
Voltage:	380VAC/220VAC;	Main Speed Control:	Automatic Frequency Control Circuit;

Product Description

High-speed intelligent CNC flocking machine
Model No.	Difference	Price($ USD)
AH9-C2	Standard Configuration	21000
AH9P-C2	Add Trimming Device	22500
AH9PF-C2	Add Trimming and Up-down Hair Separating Device	23500

SPECIFICATIONS
Servo motor	Japan's Fuji	Computer	Touch screen LCD
Power Input	Three-phase 380V AC 2.2KW (MAX)	Configuration	High (Double colors)
Air Source Input	0.4-0.5MPa	Positioning accuracy	0.05mm/100mm
Equipment size	120011501340(mm)	Speed-sik hair	820 holes/min
MEAS	125012501450(mm)	Sik hair length	10-15mm
GW	900Kg	Ordinary circular Aperture	1.2-3mm

Main Features

1) R&D automatic intelligent digital control scanning hole coordinate touch screen LCD computer base on German CNC technology .
2) Adopting Japan's Tamagawa four axis original servo motor.
3) Installing trimming device to reduce trimming process.
4) The whole machine uses German import INA, AFG, DURBAL and Japan's NSK, IKO and other brands of bearings.
5) Universal fixture and universal special-shaped handle box.
6) Automatic cylinder pressure, nylon rolling handle-off hopper.
7) Strong stability of the whole closed loop system, high precision of repeated positioning, easy operating, strong anti-interference ability.

Detailed Images

Intelligent NC Computer Parts

Features:
1) The introduction of Germany CNC technology research and development of intelligent numerical control touch screen LCD computer scanning hole coordinates.
2)Used the American import NC CPU chip, speed P4 and dual core.
3)Automatic tracking speed.

4) Positioning precision, convenient operation.
5)The system is stable and reliable, adapted to adapted to different environment.
6) The whole closed loop system, strong anti- interference ability.
7) Can be upgraded to the highest number of flocking 99 holes.(additional options)
8)Can be point to upgrade to add wool implement.(additional options)

Servo Motor Parts

Features:
1)Adopted original high precision servo motor from Taiwan or imported from Japan for the worktable of X axis, Y axis and handle's change.
2)Use the German imported precision level C1 double thread ball screw.
3)Fast displacement: 820/minute,jump hole distance can reach 8-10mm.
4)Rigid soft stability and reliability.

Automatic scanning holes coodinate Parts

Features:
1)Used high-tech infrared automatic scanning brush handle hole coordinates.
2)High efficiency in changing product: 40 holes for about 5 minutes.
3)High precision positioning coordinates: tolerance +/- 0.02 mm.
4)Easy to operate and learning, high scanning speed.
5)Less tedious steps: manual measuring pitch error precision fine tuning.

High Speed Flocking Parts

Features:
1)The introduction of German technology research and development to jig.
2)Using the German import materials plant garden, taking knife and flocking pole.
3)The flocking mouth and rod through import vacuum processing high precision mirror spark technology: high hardness and good toughness, high resistance to wear.
4)Flocking machine precision machining process error value+/-0.01mm, flocking aperture: 1.2 to 3.0mm.
5)Strong stability and tension, high efficiency and don't loose hair when flocking.

Double Color Box Parts

Feature:
1)Citing Germany technology automatic cycle pressure cylinder principle: high pressure uniform and adjustable.
2)Convient adjustment adopts double dabbing cylinder hair neatly.
3)Color change the Japanese original servo motor,can support two holes in one color.
4)The electric control and wool technology , convenient operation and fast.
5)Hair knife takes hair with high stability, planting enough hair and not scatted hair.

Trimming Parts

Feature:
Adding trimming device to reduce trimming process.

Nylon Rolling handle -off Box Parts

Feature:
Easy to land rubber toothbrush.
