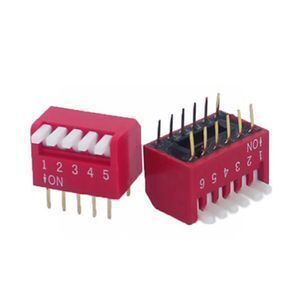

RoHS compliant Miniature 5 Position Piano Type Dip Switch
-
Supplier: Shenzhen Eker Electonic Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Strawberry J -
Price: $0.01 / >=100 pieces -
Min. Order: 100 pieces
Product details
| Supply Ability: | 100000 Piece/Pieces per Month 12 pole piano dip switch; | Place of Origin: | Guangdong China; |
| Temirnal: | Thru-Hole Piano Style; | Item Name: | RoHS compliant Miniature 5 Position Piano Type Dip Switch; |
| Model Number: | DPL05 5 Position Piano DIP Switch; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Circuit: | SPST; | Actuator: | Raised; |
| Certification: | RoHS; | Electrical life: | 2000cycles min; |
| Port: | Shenzhen; | Pitch: | 2.54mm; |
| Max. Voltage: | 50VDC; | Packaging Detail: | 12 pole piano dip switch 1. 33pcs/tube 2. 2376pcs/box 3. 9504pcs/carton; |
| Manufacturing Experience: | Free sample is available; | Positions: | 5 position; |
| Max. Current: | 100mA; | Color: | Red & Blue; |
| Brand Name: | Eker; |
RoHS compliant Miniature 5 Position Piano Type Dip Switch
| Specifications : | |
| 1).Operation Force | 400gf max. |
| 2).Stroke | 2.00mm |
| 3).Operation Temp | -20deg C to 70deg C |
| 4).Storage Temp | -40deg C to 85deg C |
| 5).Positions | 5 |
| Electrical: | |
| 1).Electrical Life | 2000 operations cycles |
| 2).Switching rating | 25mA, 24VDC |
| 3).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. |
| 4).Insulation Resistance | 100MOhms,500VDC |
| 5).Dielectric Strength | 500VAC/1 minute |
| 6).Circuit | SPST |
12 position piano type dip switch
- Through hole and surface mount DIP Switch
- From 1 to 12 positions
- Red or blue color are available
- Tube packaging
RoHS compliant Miniature 5 Position Piano Type Dip Switch
More About Eker Switch.
- 1.25 Years' experience of Manufacture.
- 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
- 3.Original manufacturer with direct factory price, Competitive & Fashionable.
- 4.High Standard management for quality control.
- 5.Small order acceptable: 1000pcs are welcome.
- 6.Safe payment terms: T/T, Western Union, Paypal are available.
- 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
- 8.OEM available, Customers' designs are warmly welcome.
- 9.Excellent Service.
Our Factory
FAQ
Q: Can I get free sample for test before place an order?
A: Yes, we offer FREE SAMPLE for you test.
Q: Does your company accept small order?
A: Yes, we accept small trial order.
Q: Does your company accept online order?
A: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
Q: How can I do if there is some problem with the goods?
A: You can ask for FULL REFUND if there is any quality problems with our products, except human factors.
