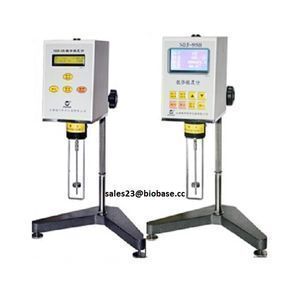

BDV-1S Basic type Speed & Digital Rotary brookfield viscometer / paint viscometers /viscosity meter

Supplier: Biobase Biotech (Jinan) Co., Ltd.
Region: Shandong, China
Contact: Ms Icey Zhou
Price: $325.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10000 Set/Sets per Quarter;	Measured range:	10~ 100,000mPa.s;
Model Number:	BDV-1S;	Packaging Detail:	Carton package;
Brand Name:	BIOBASE;	Spindle:	L1~L4;
Electricity:	110V~240V, 50/60Hz;	L0spindle:	Optional choice;
Model:	BDV-1S;	Power:	AS per;
Payment Terms:	L/C,T/T;	Measurement accuracy:	±1%;
Port:	Qingdao;	Repeatability:	±0.5%;
Rotation Speed:	6,12,30,60rpm;	Place of Origin:	Shandong China;
Package size:	400350 360mm;	Gross Weight:	9kg;

BDV-1S/9S

Biobase China BDV-1S Basic type Speed & Digital Rotary brookfield viscometer / paint viscometers /viscosity meter

Product Description

Features:

BDV-Sseries digital viscometer:

* It adapts 16 bit MCU as central control circuit.

* Gearless driving, LCD display.

* Optional accessories: Printer (BDV-5S and BDV-8S)and RTD temperature probe(not including BDV-1S).

Parameters:

Model	BDV-1S	BDV-9S	BDV-5S	BDV-8S	BDV-1N	BDV-2N	BDV-3N	BDV-4N
Measured Range(mPa·s)	10~ 100,000	1~ 6,000,000	1~ 100,000	1~ 2,000,000	1~ 600,000	0.6~ 6,000,000	6~80,000,000	50~10,000,000
Rotation Speed(rpm)	6,12,30 ,60	0.1,0.3,0.6, 1.5, 3, 6, 12, 30, 60	6,12,30,60	0.3, 0.6, 1.5, 3, 6, 12, 30, 60	1~60	0.1~99.9	0.1~99.9	0.1~200
Number of Spindle	4 types(L1~L4)				4 types(L1~L4)			4 types (21.27.28.29)
Measurement Accuracy	±5%(Newtonian Fluid)	±3%(Newtonian Fluid)	±1%(Newtonian Fluid)
Repeatability	±0.5% (Newtonian Fluid)
PowerSupply	AC220V±10%, 50/60HZ; 110V±10%, 50/60HZ
L0spindle is for Option Measured Range (mPa.s)	1~100	1~600	1~100	1~2,000	1~600	0.6~6,000	6~60,000	3~60,000
Package Size	470400 230mm	200140 320mm	*400350** *360mm	400350 360mm	400350 360mm	400350 360mm	400350 360mm	400350 550mm
G.W.	8.5kg	2.2kg	9kg	9kg	9kg	9kg	9kg	10.5kg

Apparatus to be equipped

. digital viscosity meter	1 pce	·ascending and falling rack	1 set
. standard spindle L1~L4	1 set	·power adapter	1 pce
·protective frame of spindle	1 pce	·spanner	1 pce
·Seat and leveling feet	1 set	. RS232 standard output interface	1 pce
