SUNTECH Automatic Knitted Tubular Fabric Detwisting Slitting Machine

Supplier: Zhejiang Strength Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Mindy Dong
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	13 MONTH;	Dimension(LWH):	As different model;
Port:	Any Port in China;	Warranty:	13 months from date of shipment;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight:	As different model;
Supply Ability:	100 Set/Sets per Month;	Port:	Any Port in China;
Remark:	E+L Blade;	Automatic Grade:	Automatic;
Voltage:	380v costomized;	Place of Origin:	China;
Condition:	New;	Packaging Detail:	Steel Pallet or Wooden Box Packing for SUNTECH Automatic Knitted Fabric Detwisting Slitting Machine for Tubular Knits;
Brand Name:	Suntech;	Payment Terms:	L/C,T/T,Western Union;
Type:	Fabric Slitting Machine for Tubular Knits;	Power(W):	As different model;
Certification:	CE/ISO;

Product Description

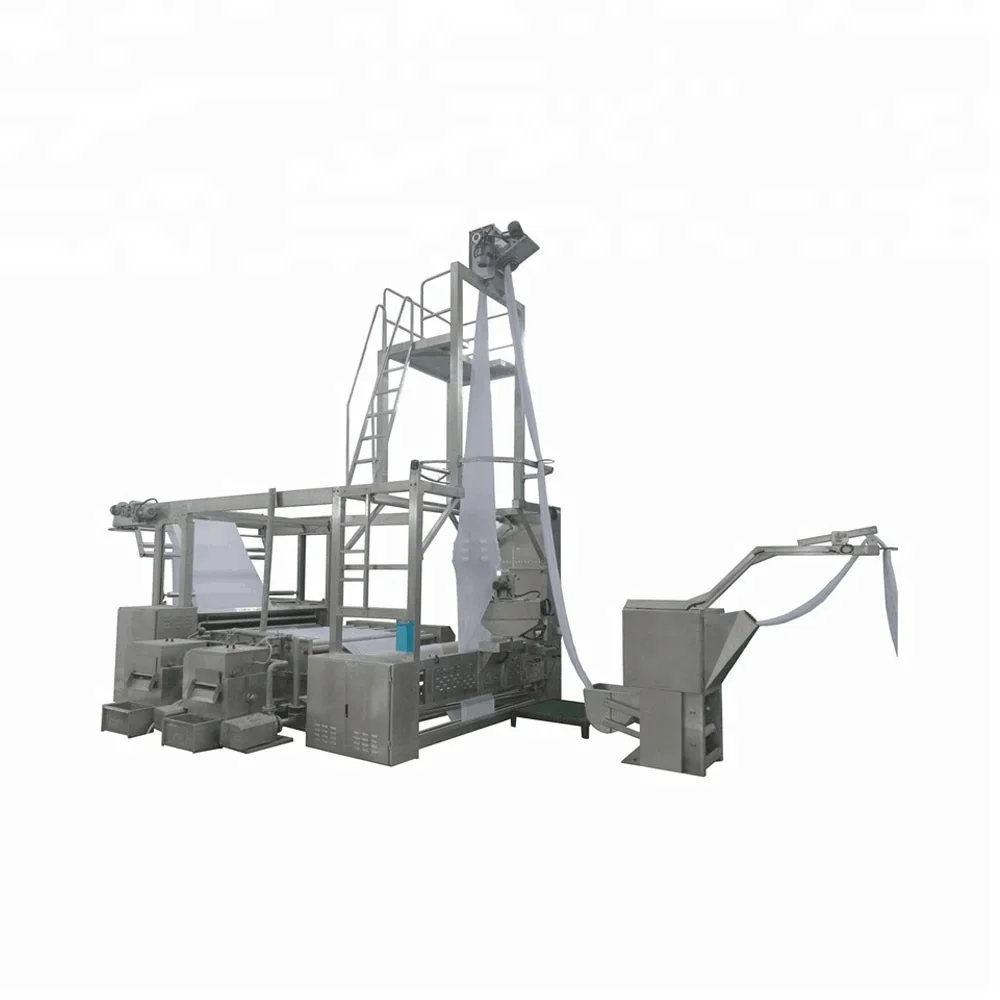

SUNTECH Automatic Knitted Fabric Detwisting Slitting Machine for Tubular Knits

Product Application

SUNTECH Tubular Fabric Slitting Machine is mainly applicable after rope dyeing. It is used to slit & open roped fabric
and has been specially designed for continuous high speed operation in automatic mode. The machine material could be A3 Steel or Stainless Steel, which could be suitable for both raw and wet fabrics.

SPECIFICATIONS FOR SUNTECH TUBULAR FABRIC SLITTING MACHINE
Speed	0-100 m/min
Fabric Width	2.0-2.5 meters
Max. Rope Diameter	800 mm
Material	Stainless Steel 304 for Wet Fabrics / A3 Steel for Dry Fabrics
Electric Specs	3 Phase - 380V; 50Hz ( can be adjusted to suit for different countries )
Remark	Variable Working Width is Possible and can be Tailor-made to Your Requirements of Processing Needs

Main Features

1) Raisable Frame and Automatic Detwister
Automatic detwister for fabric rope. The signal from feeler is picked up by proximity switches. Fabric rope engagement is by means of rotary opening rollers.

2) Slitting Basket
By means of a hand wheel, the diameter of the round basket can be expanded from 320 to 800mm, so as to facilitate the spreading of fabric and prevent permanent weft distortions, as may be generated by the slitting process.

3) Needle Drop Sensor
Needle drop sensor can detect the needle drop on the fabric and adjust the basket to place the fabric in proper tubular fabric slitting position.

4) Infrared Spreading-Centering Unit
It automatically open the fabric and then center it, to ensure that the fabric is alignment in the center of the machine. It is used for both slitting and rope opening function.

5) Hydraulic Turntable-Option
Controlled by fluid power, 1800 mm diameter, for fabric carriage rotation in heavy duty conditions. It facilitate the operation of rope detwisting after washing or dyeing.

Detailed Images

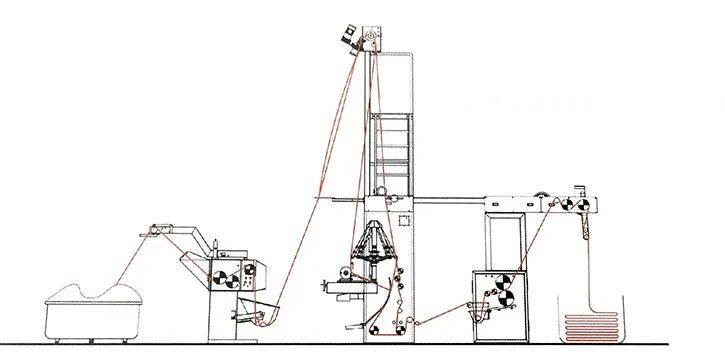

>> Open and Slitting

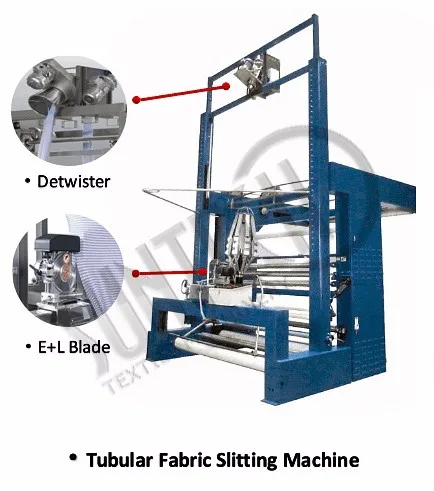

E+L Cutters

Round Basket Open Fabric

Rope Detwister Device

Packing & Delivery

Shipped By FCL

Steel pallet + Stretching Film Packing

Shipped By LCL

Wooden Box Packing

FAQ:

Q1: Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.

Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.

Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing

Q4: How about your service?
A4: Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas

Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.

About Us

SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.

Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria, Mauritius, etc.
