Shenzhen Yetnorson 698-960/1700-2700Mhz 12dBi Wide Band Directional DAS & LTE Log Periodic LPDA Roof Antenna

Supplier: Yetnorson Antenna Co., Limited
Region: Guangdong, China
Contact: Ms Lisa Fang
Price: $1.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Compatible Brand:	Yetnorson;	Place of Origin:	Guangdong China;
Supply Ability:	20000 Chain/Chains per Day LPDA Roof Antenna;	Model Number:	LPDA Roof Antenna;
Port:	Shenzhen;	Type:	External;
antenna color:	white/black (optional);	V.S.W.R:	≤1.5;
connector:	SMA/TNC/N (depend on your request);	Delivery Detail:	Received payment within 7 working days;
Brand Name:	Yetnorson;	Product Name:	LPDA Roof Antenna;
Gain(dBi):	12dBi;	Input Impendence:	50ohm;
Material:	UV protected ABS;	Polarization Type:	Vertical;
Antenna Size:	45021565mm;	Max Input Power:	100W;
Frequency Range:	698-960/1700-2700Mhz;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Packaging Detail:	1pcs packed in one PE bag , and all packed in an carton box;

Shenzhen Yetnorson 698-960/1700-2700Mhz 12dBi Wide Band Directional DAS & LTE Log Periodic LPDA Roof Antenna

Basic Specification of LPDA Roof Antenna

Product Name	698-2700MHz LTE LPDA antenna
Electric Specification
Frequency Range	698-960/1710-2700 MHz
Bandwidth	262/990MHz
Gain-dBi	12
Horizontal Beam width	70 °
Vertical Beam width	55 °
VSWR	≤1.5
F/B ratio	18
Input Impedance	50Ω
Polarization	Vertical
Maximum Power	100W
Connector	SMA/TNC/F/N
Cable Length	15m
Mechanical Specifications
Dimensions	450x215x65mm

Basic Information of LPDA Roof Antenna

1. LTE(698-2700MHz) Yetnorson Band.
2. 12dBi with SMA connector and 5m cable.
3. LTE spread spectrum communication system .

Antenna Key features of LPDA Roof Antenna
1. 698-2700MHZ LTE system
2. Good appearance
3. Durable ,corrosion resistance
4. Provide with mount kits
5. Optimized dimension
6. Designed by board band technology
7. Lightning protection: DC grounded
8. Light weight,small size,nice appearance
9. Anti ultraviolet PVC material

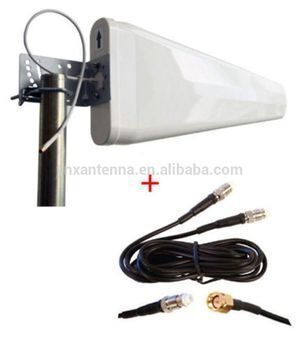

Product pictures of LPDA Roof Antenna
