4G international SIM card for mobile phone support program 128k LTE SIM card for operator with free printing

4G international SIM card for mobile phone support program 128k LTE SIM card for operator with free printing

1. Main Characteristics of SIM card

- Matching the standards of GSM11.11,GSM11.12,GSM11.14,GSM11.17.

- Matching the standard of ISO7816.
- Modularization design that is convenient to realize new
functions .
- Optimized file management system, which supports file access
path selection.
- STK data encrypt and checkout match the GSM03.48 standard
absolutely.
- Supporting the norm of the China Mobile OTA2,the little assistant
of no agony, Mass Storage Telephone Book,Group Sending Short Message
etc.
- Supporting inner backup mechanism to insure the data
Integrality.

- supporting T=0 transmission protocol,Communication velocity
supports 372/1 and 512/8.
- Having the function that against inserting and pulling out of
card when power on,and abnormal power off.
- Supporting the algorithm of DES ,3DES ,COMP128-1 and have
protection against attacking mechanism.
- Supporting the function of the circuitry encrypt and circuitry
secrecy,preventing communication data against being stolen or
juggled unlawful .And it can be used to check out the data
integrality.

- Agile individuation instructions not only insure the require of
safety management but also can satisfy all kinds of Customer’s
requires of pluralistic STK functions.
- Perfect safety function and safety strategy,passed EAL4+safe authentication.

2. Development standard

[1] ISO/IEC 7816-3 (1997): "Identification cards - Integrated circuit(s) cards
with contacts, Part 3: Electronic signals and transmission protocols".
[2] GSM 11.14:Digital cellular telecommunications system (Phase 2+);
Specification of the SIM Application Toolkit for the Subscriber
Identity Module - Mobile Equipment(SIM - ME) interface
(V8.3.0:2000)
[3] GSM 11.11:Digital cellular telecommunications system (Phase 2+);
Specification of the Subscriber Identity Module - Mobile Equipment
(SIM - ME) interface(V8.3.0 :2000-08)
[4] GSM 11.12:Digital cellular telecommunications system (Phase 2);
Specification of the 3 Volt Subscriber Identity Module - Mobile
Equipment (SIM - ME) interface(V4.3.1:1998-03)

[5] GSM 11.17:Digital cellular telecommunications system (Phase 2+)
Subscriber Identity Module (SIM) conformance test specification
(GSM 11.17 version 7.0.2 Release 1998)
[6] GSM 03.48:Security mechanisms for SIM application toolkit; Stage
2 (GSM 03.48 version 8.8.0 Release 1999)
[7] Implementation Specification of Downloading Monternet SMS Service
Menus on STK SIM Over The Air (Phase 2) V2.0(QB-QT-003-2003,2003-04)
[8] Testing Specification of Downloading Monternet SMS Service Menus
on STK SIM Over The Air (Phase 2) V2.0(QB-QT-003-2003,2003-06)

3. Communication Protocol

The Grcard SIM card products support the asynchronous half duplex
character transmission protocol (T=0) that be defined in ISO7816-3 which
use Direct convention.

It support the two kinds of parameters, F =512, D=8 and F=372, D=1 in
this operate system communication

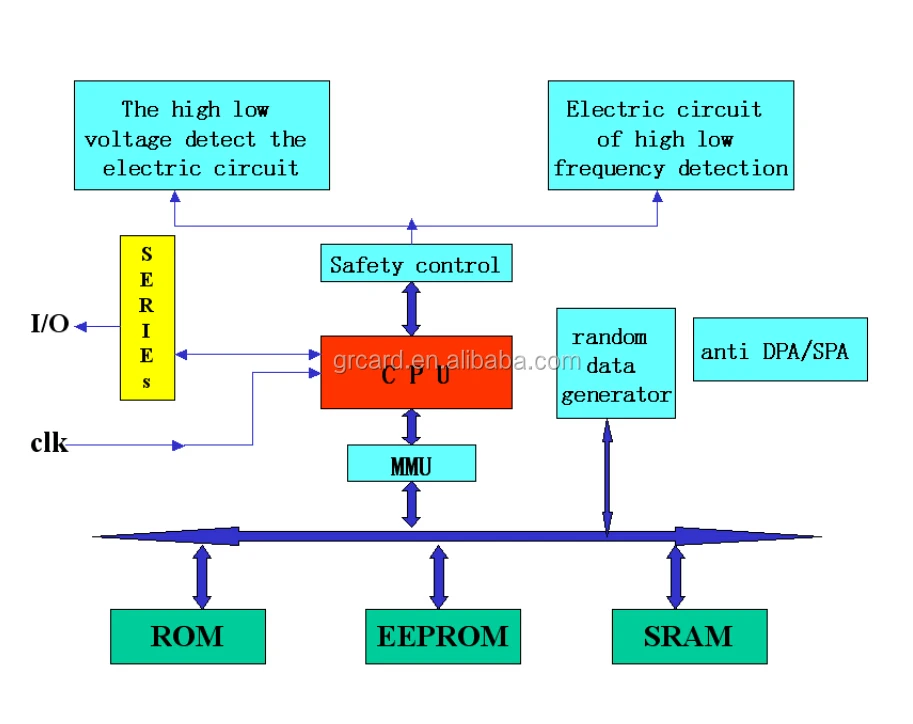

4. Main character of chip

CPU

- 8 bit CPU or 16bit CPU
Memory size: 16K,32K ,64K or 128K
EEPROM
- single byte read ,write, and wipe
- multi bytes storage(1byte to1page)
- program clock come from vibrate clock that generated by chip itself
- At the normal temperature, can proceed at least 100,000 times erase
and write operations.
- EEPROM data endurance more than ten years
- EEPROM program voltage generated in the chip
Serial I/O interface

- Match ISO/IEC-7816
- asynchronous half duplex transmission protocol
- Two kinds of transmission velocity(372/1 and 512/8)optional
Randomizer
-8- bit randomizer
Power on reset
- internal power on reset mechanism

Low power work mode
- SLEEP mode
- CLOCK STOP mode
Safety mechanism
- Abnormal voltage/frequency detection function, DPA/SPS attacking
immunity
Work temperature
--25°C to +70°C

Work voltage
- 2.7V to 3.3V,4.5V to 5.5V
Work frequency
- 1 - 5 MHz (3.57MHz)

Specifications:

a: LTE 4G Micro-SIM Mini Test Card
b: Test card for Anritsu CMW500
c: 4G Test card for CMW500 mobile phone

LTE USIM Card Support CDMA ,GSM ,WCDMA ,TD_SCDMA Network all data .

LTE USIM Card can write " PIN,PUK ,ADM , IMSI ,ICCID ,SMSC, OPC ,KI " into card .

compliant to 3GPP standard , Can operate at a max  temperature  75c , minimum temperature of -40c .

LTE 4G Series is designed to meet the current market demands rapid development of the fourth generation of mobile communication, according to domestic and foreign carriers to promote the use of 4G networks, independent research and development of new smart card products for TD-LTE and FDD LTE and other network. In terms of compatibility, it applies not only to the 4G network, but also backward compatible with 3G, 2G network, can successfully adapt to the transition from the era of 3G to 4G market era.

LTE USIM NATIVE and JAVA including two series, capacity from 64k to 256k covering all product types to meet various needs of domestic and international markets

 Company informations:

Green Card(Shen Zhen) Co., Ltd is located in 5/F,West,B2 Building,Anle industrial district,Hangcheng Road, Bao'an, Shenzhen,China , professional engaged in the production of smart cards, IC card system and IC card reader. The company's products include contact IC cards, contactless IC cards, paper cards, composite cards, portrait cards, phone cards, barcode cards, magnetic stripe cards, VIP cards, and other materials cards, contacts IC card reader, contactless IC card reader and Card printers etc.
"Customer First" is the company’s belief, Strict in production design, manufacturing, sale and service to provide quality products and services. The good reputation has won more customer’s trust and support, sales and services across all parts of the country, some products sell well overseas.Adhering to the market-oriented technological innovation as a leader, we strive to become the leader in the industry, Guang-rui smart card expect to become your faithful friend and partner, to build each other a win-win benefits for the future.

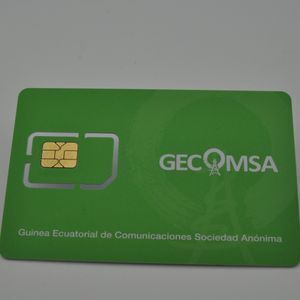

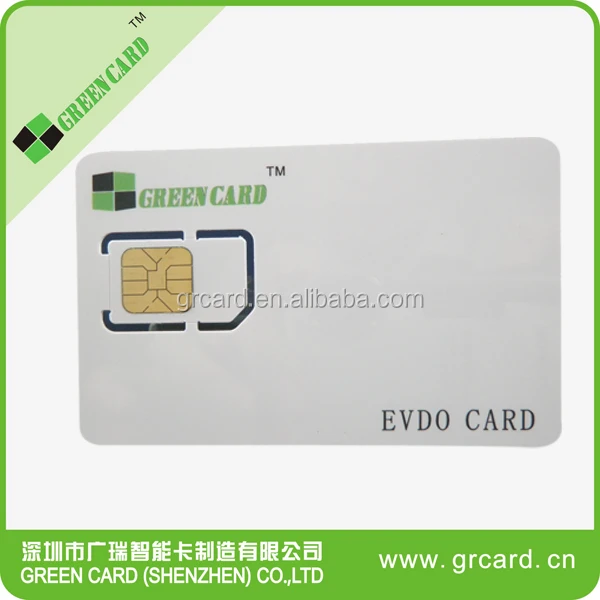

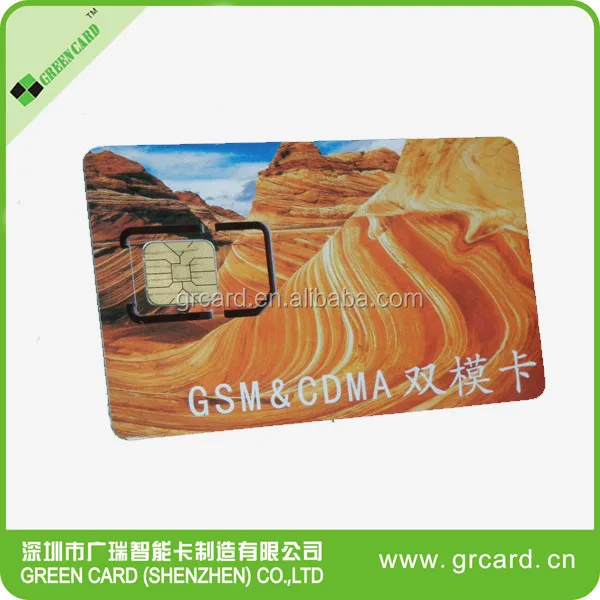

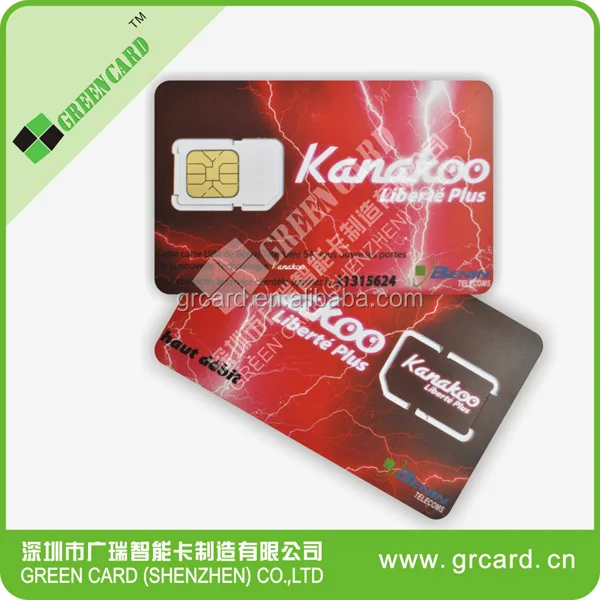

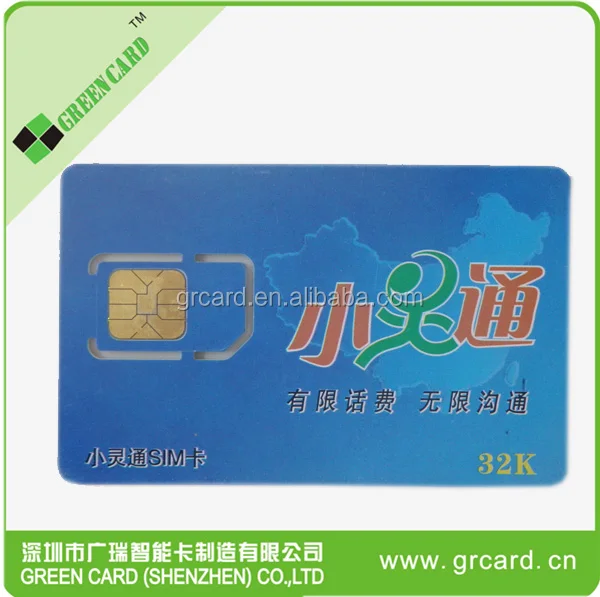

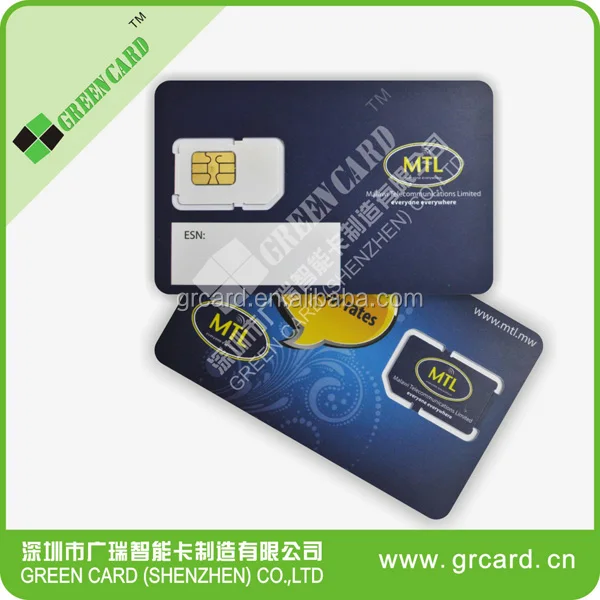

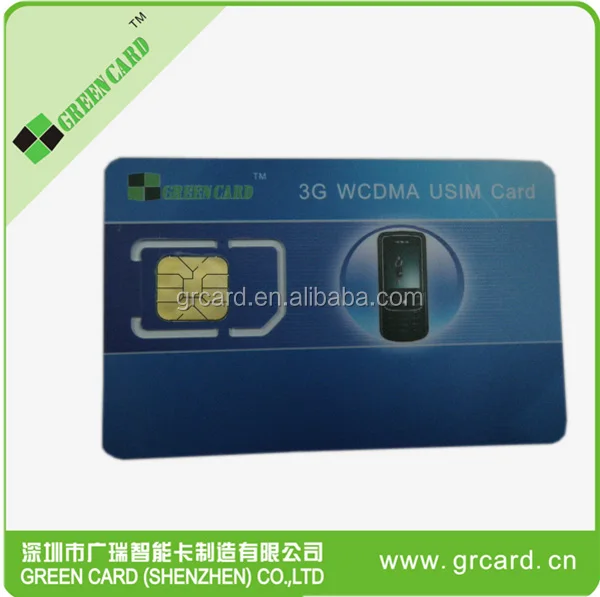

Product show:

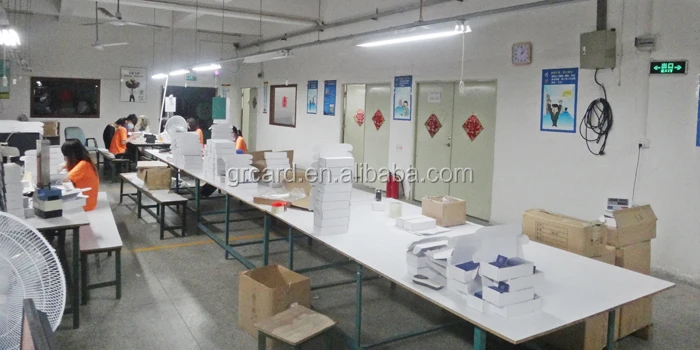

 Work flow:

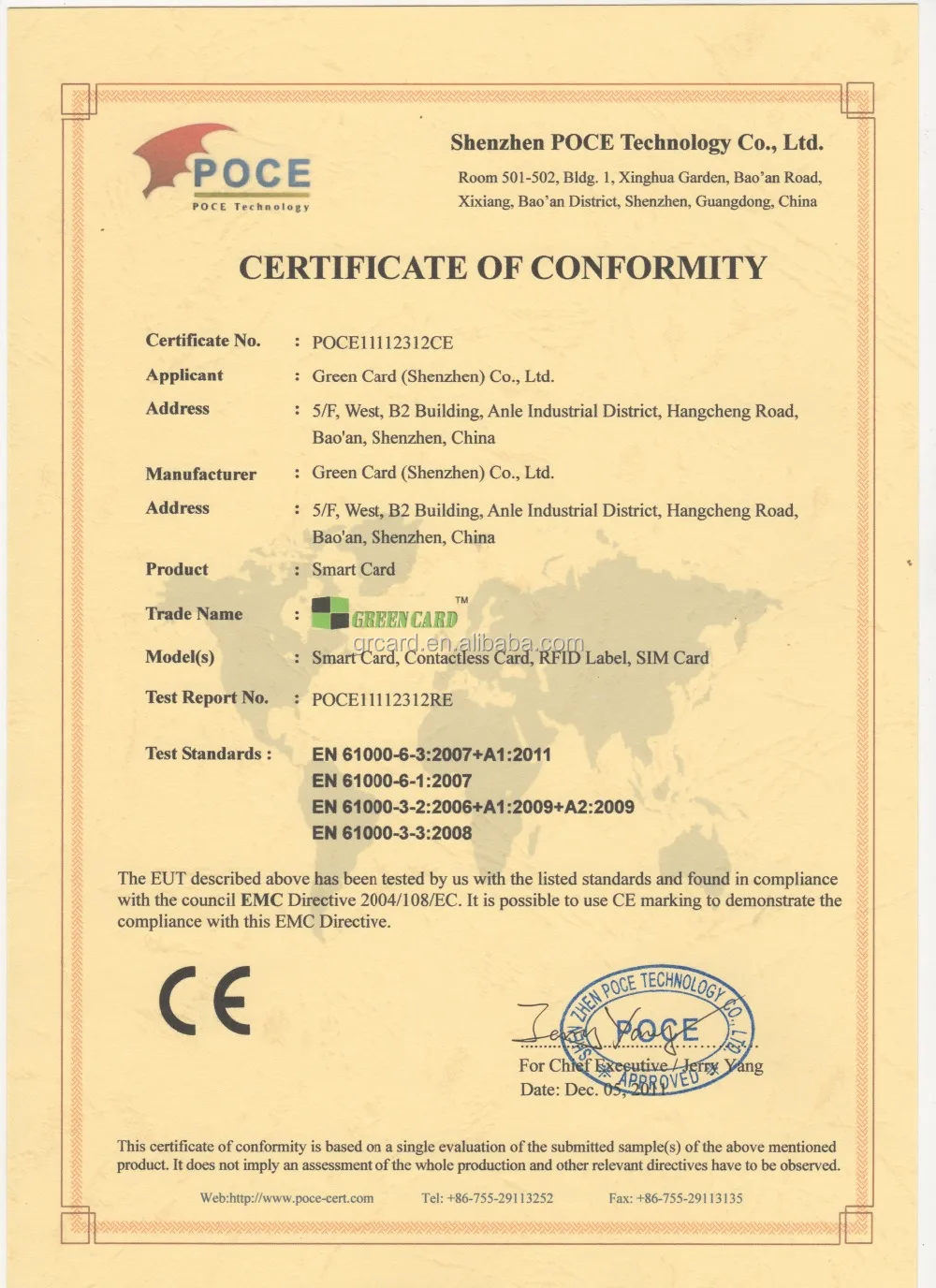

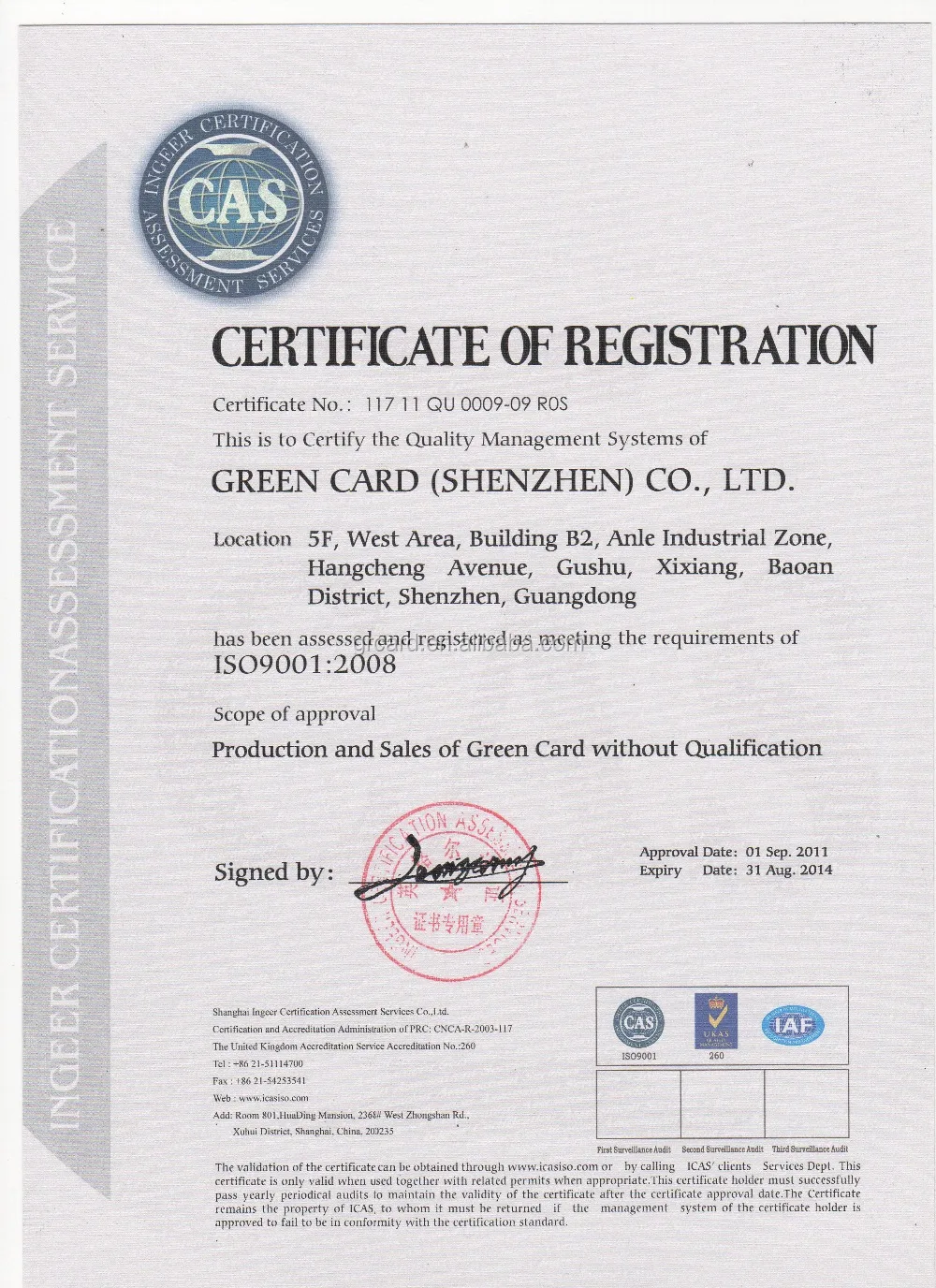

Certifications:

FAQ:

1. How can I place an order?
You can contact any of our sales person for an order.
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with trade manager of Alibaba, Skype, E-mail or other instance ways, in case of any delays

2. When can I get the price?
Usually we quote our best price within 12 hours after we get your inquire.

3. How can I get a sample to check your quality?
After price confirmation, you can require for samples for samples to check our quality.
Free for a blank/stock sample to check the design and quality, as long as you afford the express freight.
For printing sample, advanced sample fee $49 is required. It can be fully refuned if the final quantity of the confirmed bulk order is or over 10,000pcs.

4. How long can I expect to get the samples?
After you pay the sample charge and send us confirmed files, the samples will be ready in 5-7 working days.
The samples will be sent to you via express and arrival in 3-5days.

5. What kind of files do you accept for printing?
CDR ,AI, PDF, etc. and we also can design for you by free.

6. What about the lead time for mass production?
To be honest, it depends on the quantity.
Generally 5-7 days for quantity at 5,000pcs, 7-10days for about 10,000pcs.

7. What is your terms of delivery ?
We accept EXW, FOB, CNF, DDU, etc.
