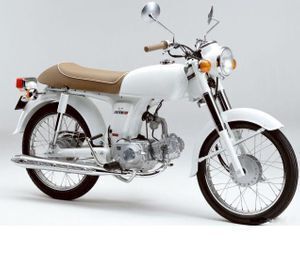

CLASSIC HOND DA ALPHA MOTORCYCLE 50CC 100CC 110CC JH70 90

Product details
Selling Units:Single item;Place of Origin:Chongqing China;
Max. Speed:61 - 80km/h;Fuel:Gas / Diesel;
Condition:New;Engine Type:4-Stroke;
Brand Name:ALPHA;Type:Chopper;
Certification:Other;Displacement:50CC;
Single package size:144X38X76 cm;Single gross weight:105 KG;
Engine
Engine TypeSingle Cylinder, 4 Stroke, Forced Air Cooling, Manual Clutch
Displacement70 cc
Bore×Stroke47×49.9 mm
Compression Ratio8.8:1
Max Power3.8 kw/(8500±5%) rpm
Max.Torque4.8n.m/(7500±5%) rpm
Start ModeElectric/Kick
Ignition ModeCDI
LubricationPress splash
Idle speed1300rpm
Engine Oil0.8L
Transmission
Gear4-speed
Transmission ModeChain
Dimensions and Weight
Product Dimensions1885×760×1025 mm
Wheelbase1210 mm
Seat Height740 mm
Min.Ground Clearance160 mm
Dry Weight85Kg
Load Capacity150kg
Climbing Ability≥25°
Fuel Tank Capacity12 L
Wheels and brakes
Front Tires2.50-17
Rear Tires2.75-17
Front BrakeDrum
Rear BrakeDrum
Others
Max.Speed60 km/h
Battery Capacity6MF5L
Package
QTY/Export Carton:1pc
40HQ Container:144units/40HQ 192units
