Galaxy CE 7.5kw 5axis cnc CAD input quartz sink cutting bridge machine

Product details
Supply Ability:800 Set/Sets per Year;Warranty:1 year;
Condition:New;Production Capacity:100%;
Y Axis Stroke:2000mm;After Warranty Service:Video technical support,Online support,Spare parts;
Packaging Detail:Nude for Galaxy CE 7.5kw 5axis cnc CAD input quartz sink cutting bridge machine;Applicable Industries:Building Material Shops,Farms,Home Use,Retail,Construction works ;
Cutting Length:3500mm;Voltage:380V;
Key Selling Points:Multifunctional;X Axis Stroke:3500mm;
Place of Origin:Shandong China;Blade Size:350-400mm;
Port:Qingdao port;Certification:CE;
Power(W):7.5kW;Blade Quantity:1;
Cutting Depth:110mm;Brand Name:OMC;
Control System:CNC;Dimension(L*W*H):5800*3150*3350mm;
After-sales Service Provided:Online support;Payment Terms:T/T;
After-sales Service Provided:Overseas third-party support available;Product Name:Galaxy CE 7.5kw 5axis cnc CAD input quartz sink cutting bridge machine;
Showroom Location:None;Use:Marble, Granite, Quartz;
Weight:4300kg;Type:Stone Cutting Machine;
Work Table Size:3500*2000mm;Local Service Location:None;

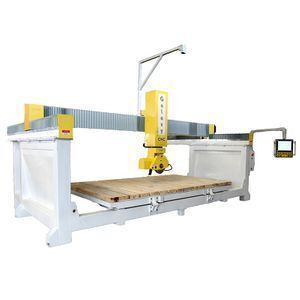

OSC-Galaxy CE 7.5kw 5axis cnc CAD input quartz sink cutting bridge machine



Product Description

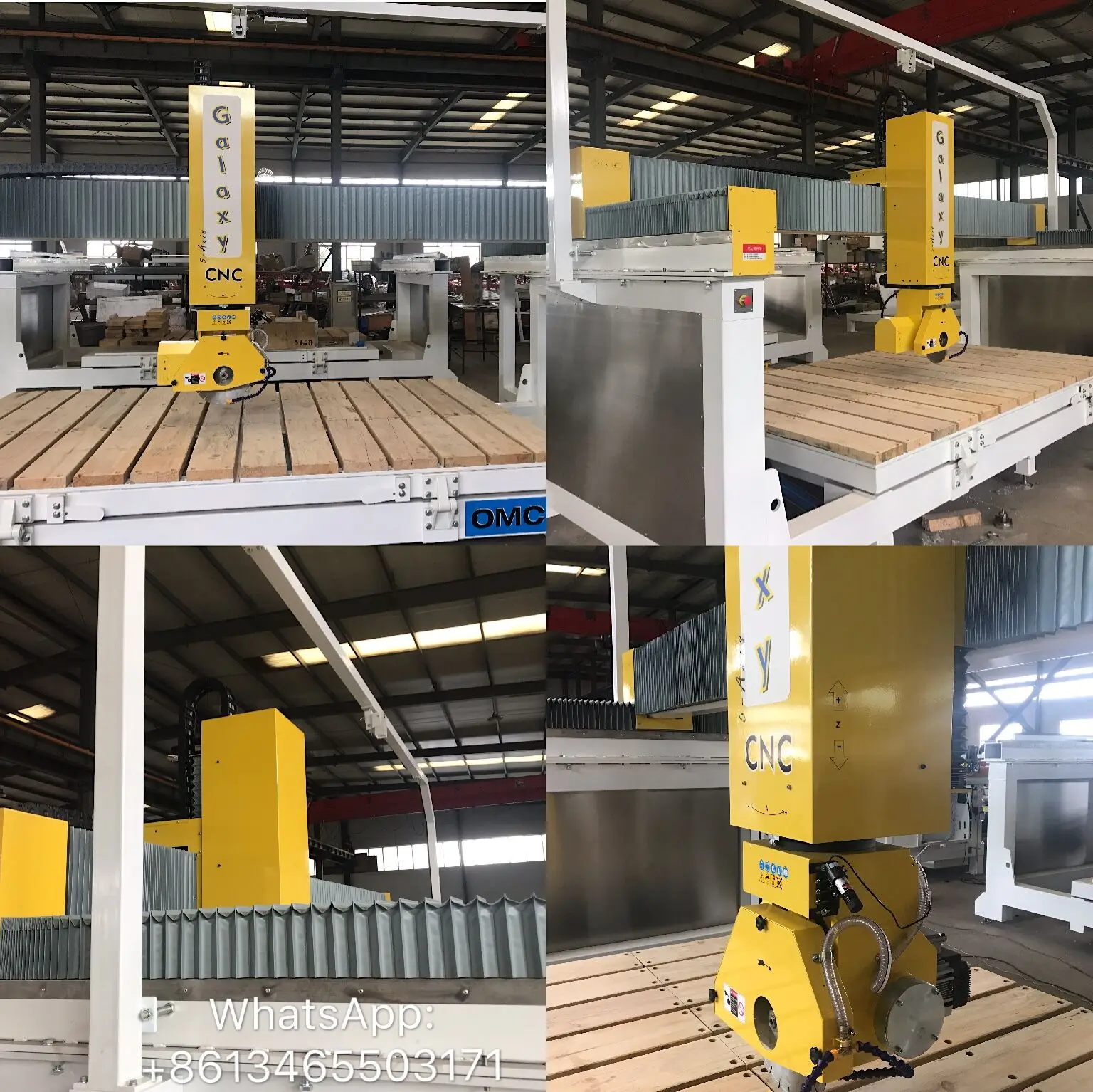

Galaxy CNC 5axis is the new generation multi-function stone processing machine which is jointly developed by OMC and famous universities and research institutes.CNC control system synchronized with Italian technology system,pure touch screen operation which can be easily operated without knowing complicated CNC knowledge.

This machine can realize many advanced functions:straight and arc chamfering, cutting, drilling, milling,profiling,3D profiling and edge profiling,which are widely used by small processing factory,kitchen countertop and home decoration shops.

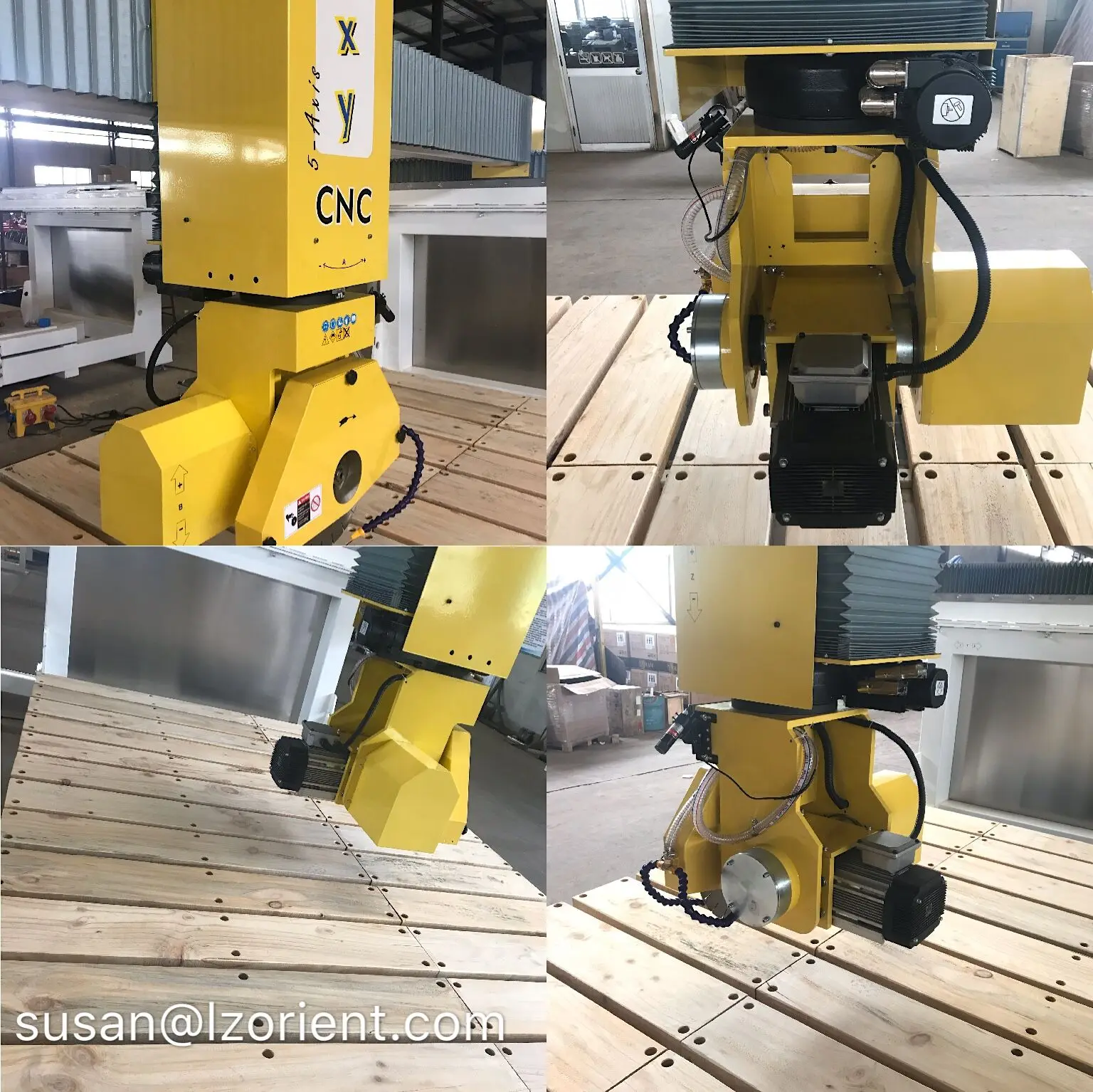

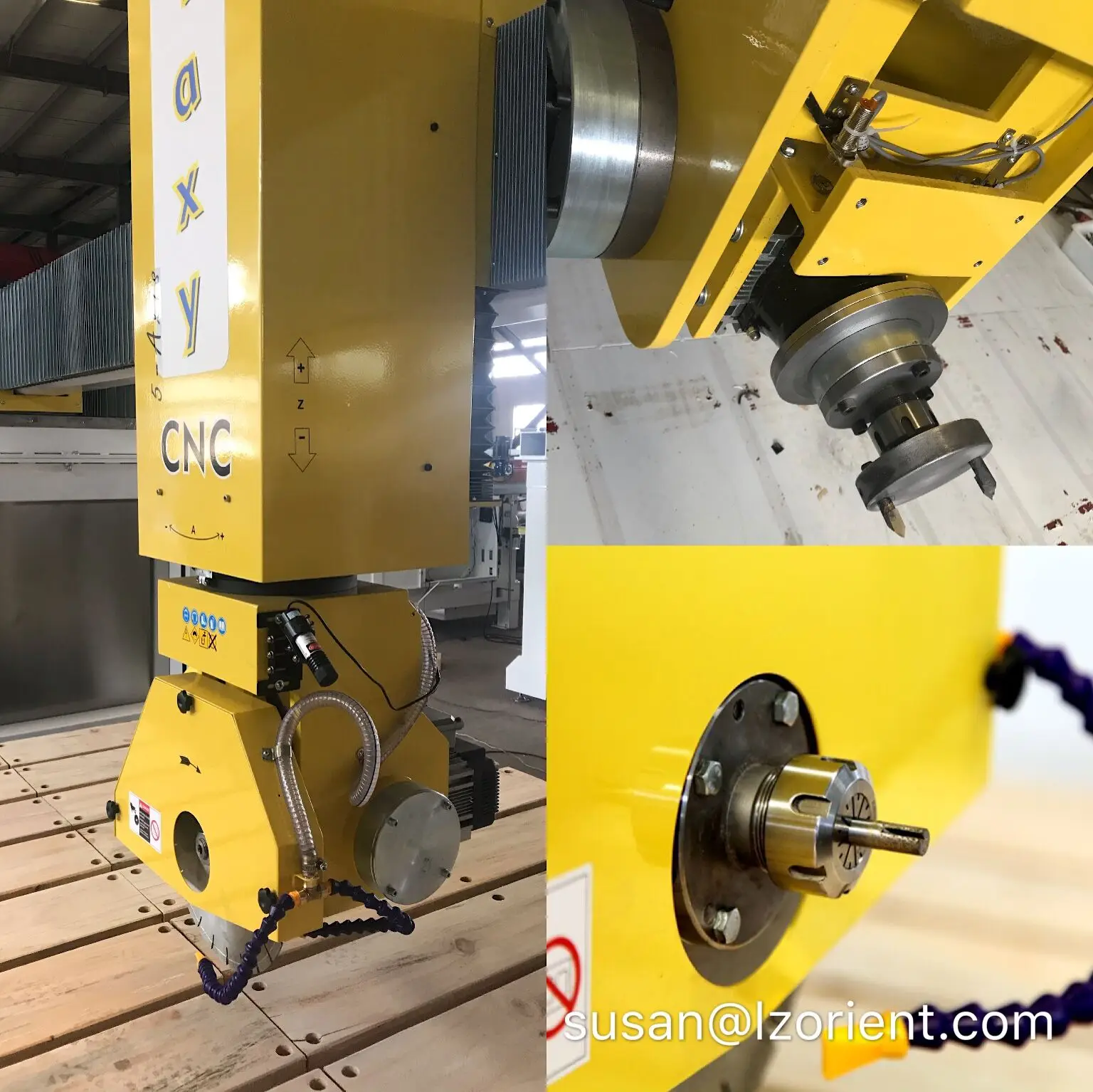

This Galaxy CNC 5axis stone cutting machine is designed to realize X-Y-Z-A-B 5 axis linkage with more wider utilization.It adopts high quality servo motors and other electrical components,high precision linear guideway,compact structure and small area coverage.



CNC 5axis G-code and DXF input can be selected.

7.5kw main motor.





- Compact structure, small area coverage, no need to do ground foundation.

- Using advanced computer control system to achieve higher working efficiency.

- Powerful functions combined in one machine to achieve almost all processing works for small       sized factory.

- High quality electrical components with long service life and low maintenance cost.





Voltage

380v-3phase,50hz

Motor power

7.5kw

Stroke of X axis

3500mm

Stroke of Y axis

2000mm

Stroke of Z axis

400mm

Stroke of A,Baxis

A:360 degree rotation  B:0-90degree tilting

Cutting speed of X axis

1-15000mm/min

Cutting speed of Y axis

1-12000mm/min

Cutting speed of Z axis

1-2000mm/min

Rotating speed of A axis

0-7R/min

Cutting thickness

110mm

Cutting precision

0.2mm

Programing way

Manual or Import graphics

Overall size

5800x3150x3350mm

Weight

4300kg

Warranty

12 months

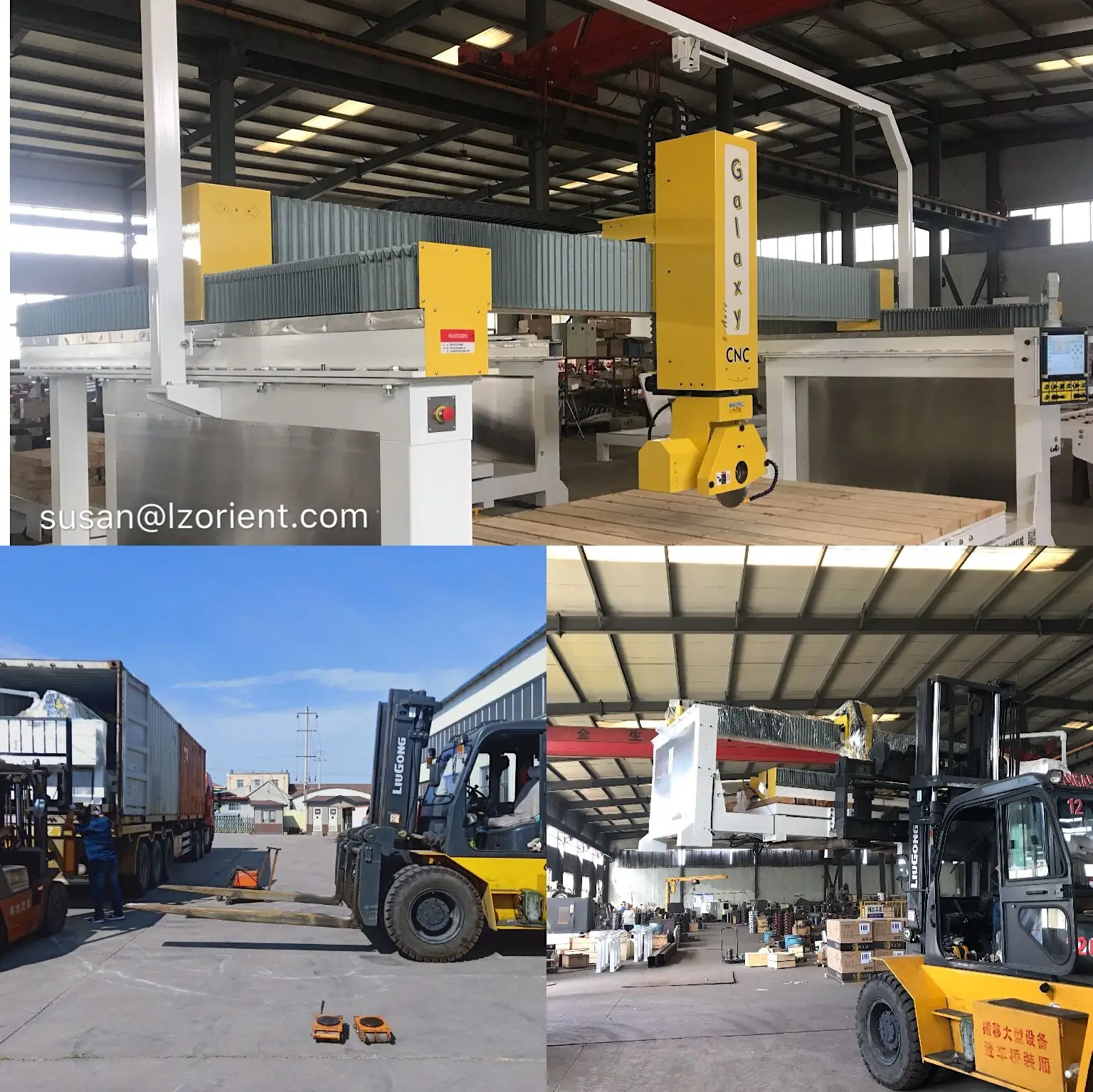

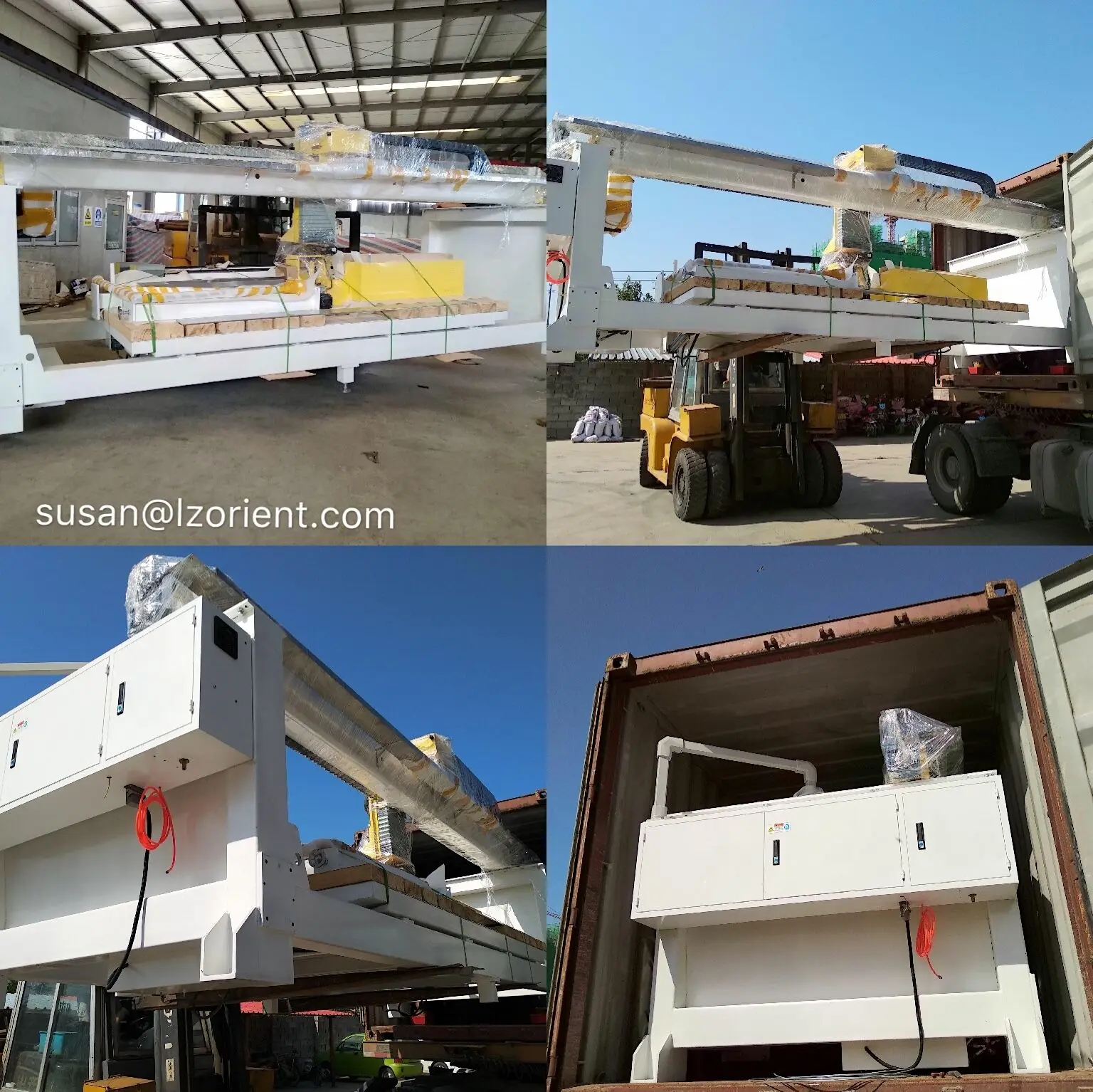

- Nude with Plastic Film and Wire Fixing

- 20GP Load 1 Set

- Qingdao Port Shipment

- 1 Year Warranty

- OEM&ODM Available

- Assemble Tools Included

- Spare Parts Available

 overall size: 5800x3150x3350mm

 Youtube videos:

https://youtu.be/H_vq9W-7S2c

https://youtu.be/y4mQzR-kwM0

https://youtu.be/aOE8ab6AY98

https://youtu.be/lxasXm-e2D4

https://youtu.be/z4P-BuiZI0Y

https://youtu.be/hQFbOhQDteQ

https://youtu.be/D1I40cQurzM

https://www.youtube.com/watch?v=rwBjqUnvgSg

https://youtu.be/cyxaDux-ohc



 FAQ

Q: Are you a manufacturer or trading company?
A: We are a stone machinery manufacturer since 1996.

Q: Can I become a distributor?
A: Yes, we have special discount for distributor.

Q: Can you accept OEM or ODM?
A: Yes, you can provide your logo and related design.

Q: What is the lead time?
A: 7-15 working days depends on machine models.

Q: How is the machine packed?
A: For OSC series, we pack with fumigation free plywood box. For OMC series, we pack nude with plastic films and wire fixing.

Q: What is the delivery details?
A: Our nearest port is Qingdao. We can also deliver from every main port in China by FCL or LCL.

Q: What payment terms do you accept?
A: We accept EXW, FOB, CFR, CIF, FCA, etc.
