Condition: | New; | Port: | Qingdao, Shanghai, Shenzhen, Guangzhou, Ningbo, Tianjin; |
Packaging Detail: | standard export plywood package for MX5115 High Quality Wood Spindle Machine,Wood Shaper Machine,Wood Spindle Shaper; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,alibaba trade assurance, paypal; |
Dimension(L*W*H): | 780*710*900mm; | other demand: | can be customized; |
Table tilt angle: | 45 degree; | Application: | woodworking; |
Brand Name: | AICHENER; | Keywords: | Wood shaper and moulder; |
Product name: | Wood Spindle Machine,Wood Shaper Machine,Wood Spindle Shaper; | Type: | vertical single-spindle; |
Power(W): | 2.2/3kw; | After-sales Service Provided: | Online support; |
Weight: | 150kg; | Max. processing thickness: | 50mm; |
Knife handle diameter: | 6.3/12.7mm; | Elevator travel: | 100mm; |
Table size: | 640*580mm; | Warranty: | 1 year; |
Place of Origin: | Shandong China; | Voltage: | 220V/380V; |
Supply Ability: | 1000 Set/Sets per Month MX5115 High Quality Wood Spindle Machine,Wood Shaper Machine; | Shaft Number: | single; |
Certification: | ISO, CE; | Spindle speed: | 18000r/min; |
Applicable Industries: | Home Use,woodworking use; |
Introduction of MX5115 High Quality Wood Spindle Machine,Wood Shaper Machine,Wood Spindle Shaper
Wood shaper is applied to milling planes, grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency and It can be used to install all kinds of boring and milling tools, chamfering the workpiece, cutting straight grooves, straight lines, sliding the table to the T-slot, etc. It is the first choice for solid wood,Acrylic and panel furniture.
Parameter of MX5115 High Quality Wood Spindle Machine,Wood Shaper Machine,Wood Spindle Shaper
Model | MX5115 |
Product name | Vertical single axis milling machine |
Table tilt angle | 45 degree |
Knife handle diameter | 6.3/12.7mm |
Spindle speed | 18000r/min |
Table size | 640*580mm |
Motor power | 2.2kw/3Kw |
Max. processing thickness | 50mm |
Elevator travel | 100mm |
Dimension | 780*710*900mm |
Weight | 150kg |
Customized is acceptable |
Feature of MX5115 High Quality Wood Spindle Machine,Wood Shaper Machine,Wood Spindle Shaper
1. cast iron countertops, fine workmanship, wear-resistant shock absorption
2. Pure copper motor, locking spindle and precision sleeve shrink lock mouth, high precision and safe to use.
3. Adjust the handwheel, knob switch, the table can be tilted 45 degrees, safe and convenient.

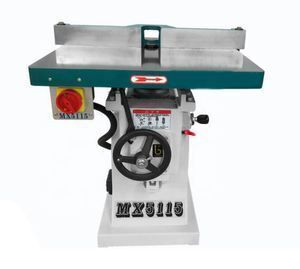

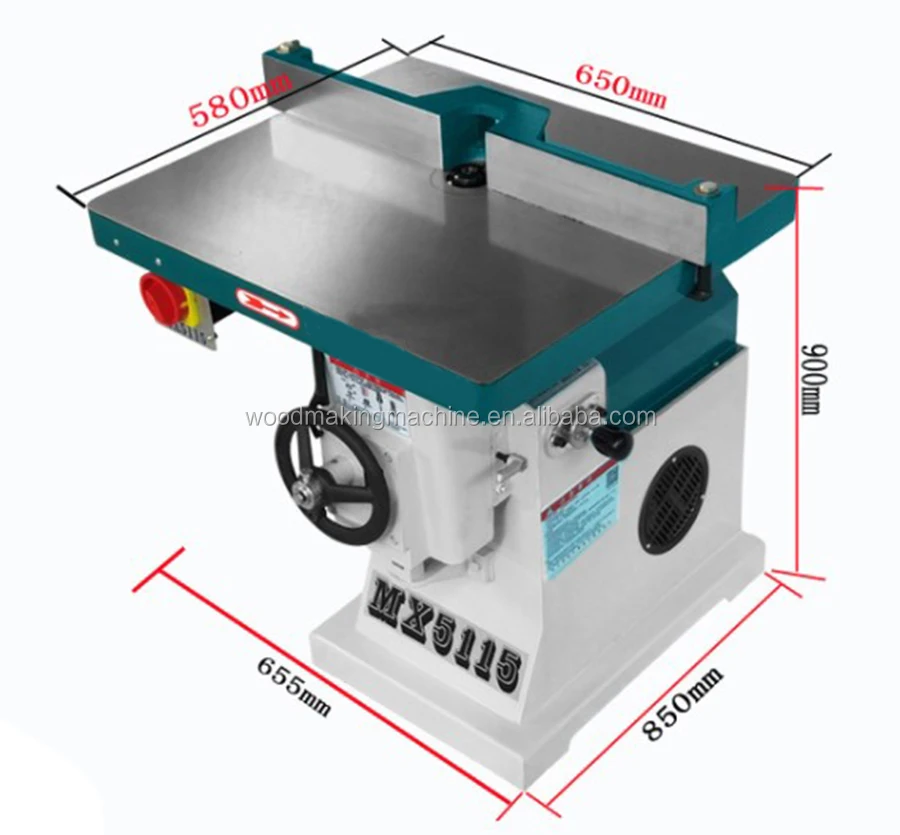

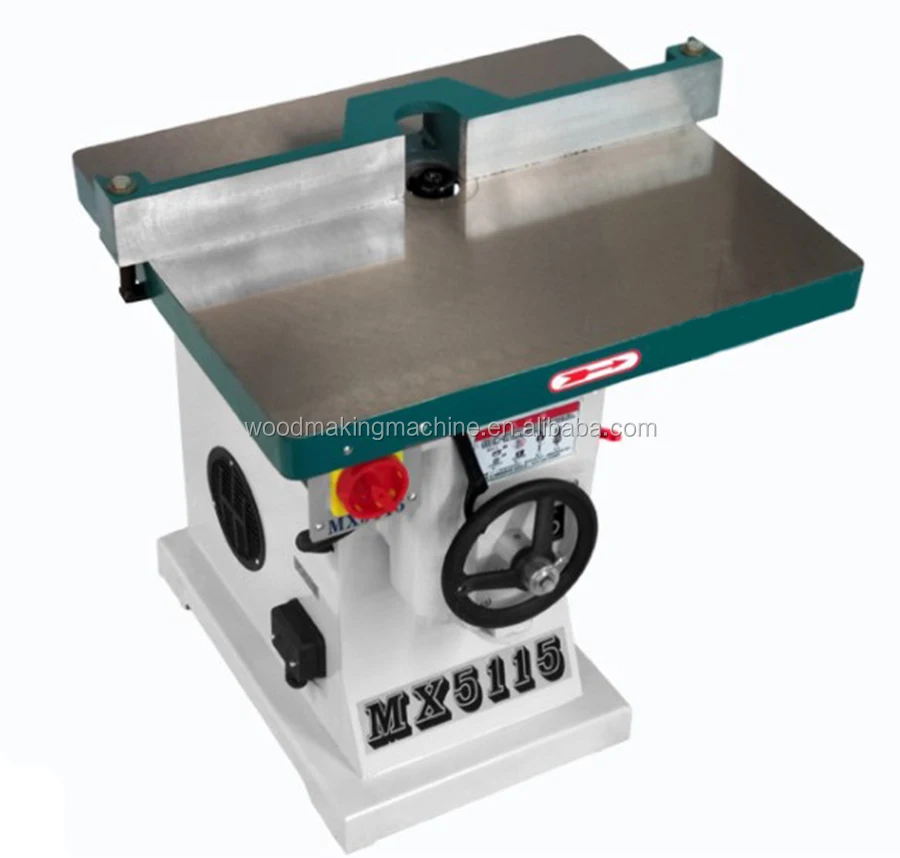

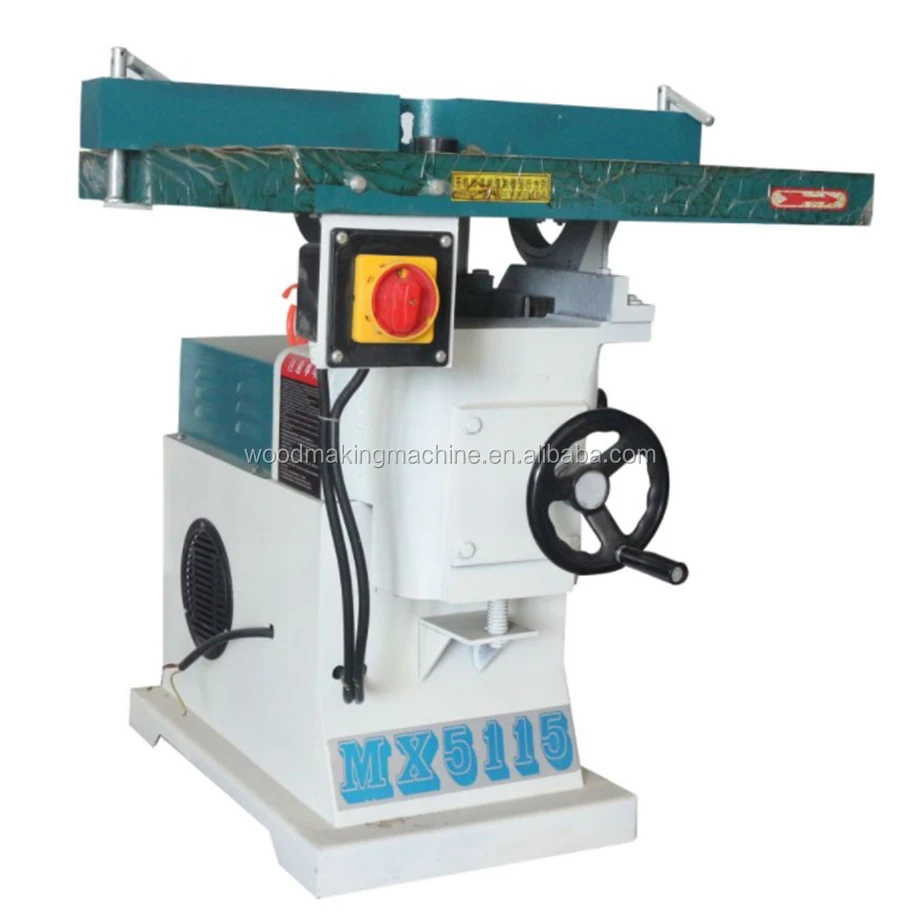

Photo of MX5115 High Quality Wood Spindle Machine,Wood Shaper Machine,Wood Spindle Shaper
Other model we also provide
Shandong Aichener Machinery Co., Ltd. is AICHENER INDUSTRIAL CO., LIMITED Wholly-owned subsidiary, We are woodworking machinery factory located in yantai city, shandong province, mainly supply woodworking thicknesser, flat planer, Multi-functional combination planer,sander machine, polish machine, wood router and miller, band saw, slide table saw, simple or precision panel saw, scroll saw, circular saw ,Woodworking edge banding machine,Rocker saw,Drilling machine, wood engraving machine, splicing machine, finger joint machine, sharpening machine,Log peeling saw,etc , widely used in Logs, solid wood panels, splice panels, plywood and sandwish wood, warm welcomed by Lumber mill and furniture processing plant,highly valued by woodworking enthusiasts.
