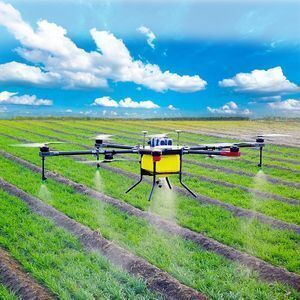

New technology farming drone, 15L agricultural drone sprayer for agriculture

New technology farming drone, 15L agricultural drone sprayer for agriculture.

1. Protect farmers away from pesticide poisoning, assure the best coverage and application of your pesticides or fertilizers;
2. 20 times spraying efficiency more than manual spraying, save pesticide and water;
3. Ready to flight, easy to use, take off and land vertically, suits to all terrains;

4.300 units per month production ability

The Future of Precision Agriculture with Unmanned Aerial Vehicles.

The JOYANCE UAV system is designed to provide FAST, PRECISE, HIGH EFFICIENT pesticide & liquid fertilizer spraying for small and medium farm, especially for farms with irregular terrains that tractor can not arrive.

Working Principle.

Operated with remote controller, people can keep away from pesticide & chemical poisoning and harming. The drone can take off & land vertically, suit to all kinds of terrains. With ground control system, people can operate the drone with one key take off, then the drone will fly automatically along preset flight routes. After finished spraying, the drone can land automatically at the take off place, very easy to operate.

The JOYANCE Spraying Drone.

1.Coverage: 1.6-2.8 hectares in a 10 minutes flight. Continuously work 8 hours/day.
2.Autonomous flight program: it will fly to the GPS points you instruct it to. Multi-waypoints and Region waypoints for your choice.
3.Auto launch & land
4.Manual control at any time
5.Semi-automatic flight control mode for new operator
6.Electric power, rechargeable Li-po battery
7.Carbon fiber material, umbrella fold-able frame, easy to transport
8.Quick release propellers, save time
9.Fail-safe protection, low voltage warning & auto return

Autonomous Flight Program Software.

Install the program on computer or tablet, download map, program flight routes: select four points on the software, it will creat all the flight routes automatically as the picture shows. All the flight routes can be save for next time use, very convenient.

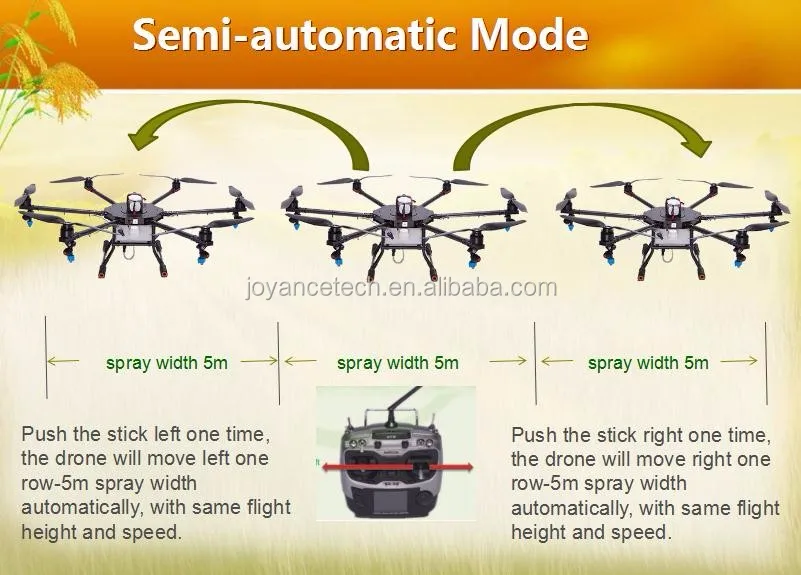

Semi-automatic Flight.

Semi-Automatic flight mode is specially designed for new operator who has no flight experience. All the flight data are preset before each flight, the operator just need to push one stick to control the drone fly forward or backward, the drone will keep same flight height, flight speed, row width.

JOYANCE UAV system include.

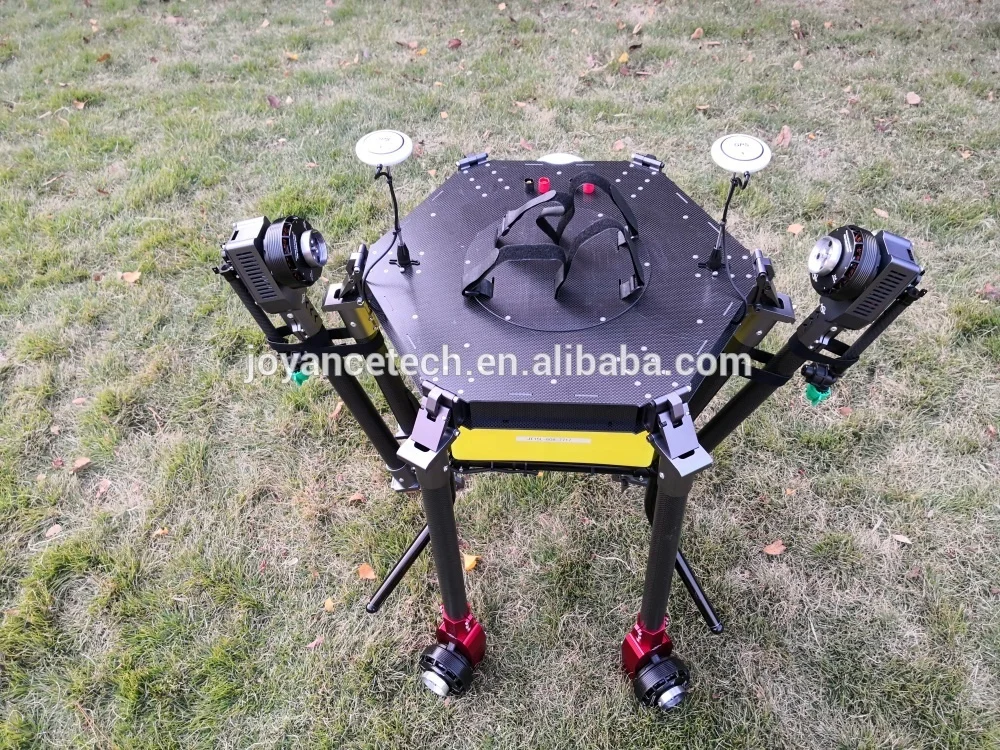

The drone frame
Flight controller
Flight planning software(optional)
Remote controller
Li Po Battery Packs and Smart Balance Charger or Multi charger
Tool kit and transport aluminum case
FPV(optional)
Complete on-site training and after-sales service

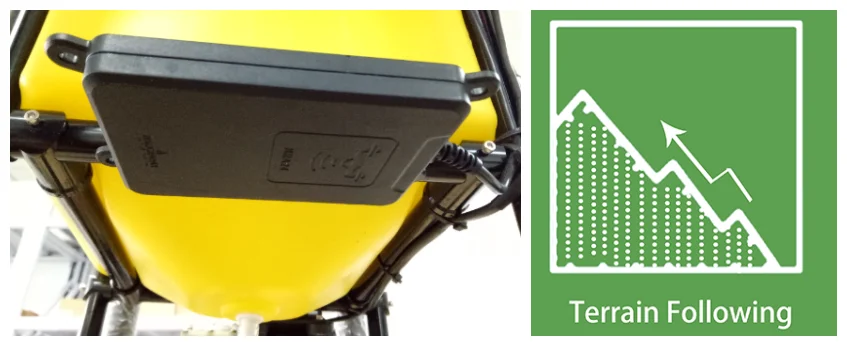

MMW radar-terrain following sensor

FPV (real time image).

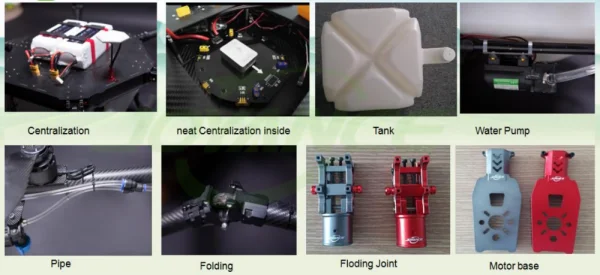

High quality spare parts, available in local shop, can be replaced by customer.

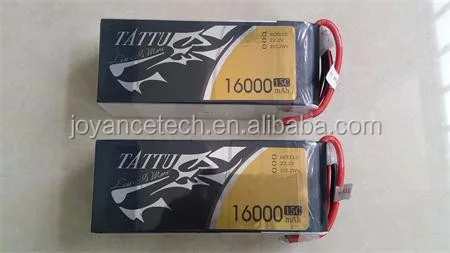

12000 mah 16000 mah 22000 mah Li Po Battery Packs.

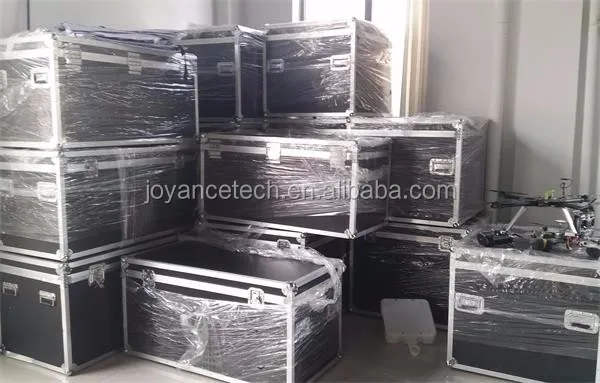

Aluminum Transport Case.

What the JOYANCE UAV can do for you.

The JOYANCE spraying drone is designed for precision agricultural professions to help improve the spraying working efficiency and protect environment.
The times of using hand held or tractor mounted applicators are gone and the new unmanned applicators are here.

You can now target specific areas that may be hard to reach or to dangerous with the new line of JOYANCE products. You no longer need to be in harms way to apply the product like before. Doesn't matter if you are spraying trees, fields, yards, acreages or treating standing water the pilot will not be in contact with the product being applied. Also users can get away with less chemical due to the downward pressure caused by the aircraft. The coverage is significantly higher than spraying by hand. This is also better for the environment.

Many people ask how hard is it to fly and how much does it cover? The answer is easy. Any one can fly the Sprayer drone. It has an on-board GPS that has features such as auto hover. Return to home. Auto-land and voltage protection. The pilot only has to give basic commands and the drone will move accordingly. If the drone loses signal it will just come back and land all by itself. The drone is electric powered so it is easy to maintain. Typical flight times are about 10-15 min. This depends on flying style. The drone holds 6-15 liters of pesticide or fertilizer. This typically covers about 3-7 acres. It takes less than 8 minutes to cover this amount of area.

Customer Feedback.

Joyance Drones have been exported to many countries in the world, include France, Ireland, Japan, Sri Lanka, Australia, Indonesia,  Panama, Salvador, Colombia and Brazil and etc. They apply our drones spraying crops such as rice, wheat, corn, soybean, spraying fruits such as banana, apple, orange, sugarcane, and other plants such as tea, cotton, cocoa, palm, tobacco. We are still looking for dealers in other countries, it's a good market opportunity now, we would like to do business with you with win-win. If you are interested, please don't hesitate to contact us for more information.

1.Warranty: Wearing parts 3 months, the other 1 year.
2. OEM is accepted.
3. Customized logo is accepted.
