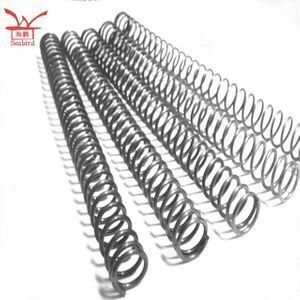

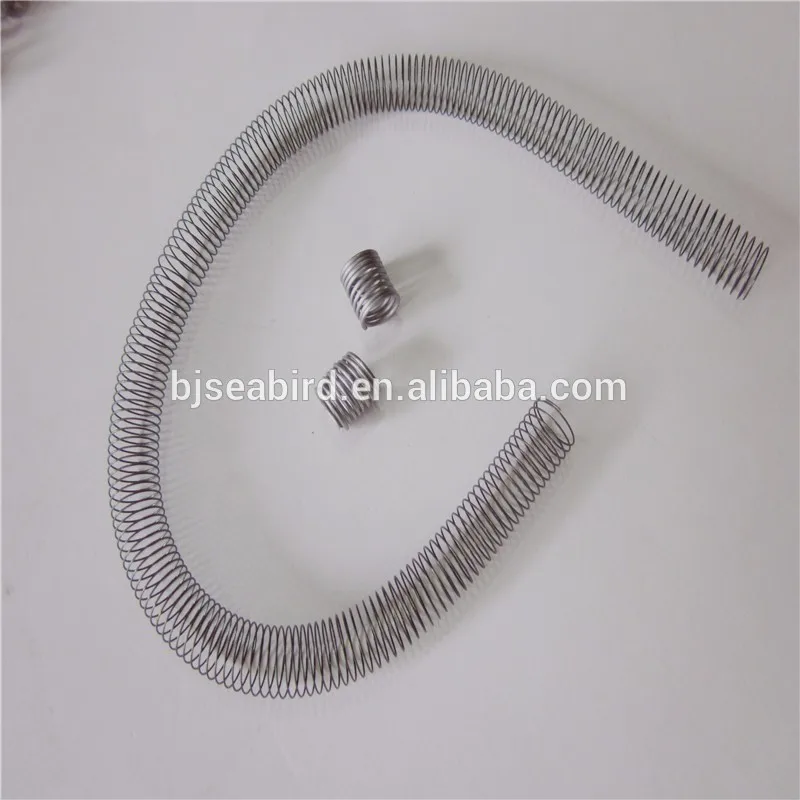

China wholesale shape memory alloy nitinol coil spring high force compression nitinol spring
-
Supplier: Baoji Seabird Metal Material Co., Ltd. -
Region: Shaanxi, China -
Contact: Mr Hailiang Dan -
Price: $6.00 /piece -
Min. Order: 1 piece
| Brand Name: | Seabird; | Type: | one-way nitinol spring and two-ways; |
| Certification: | ISO9001:2015; | Color: | Black and pickling surface; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Port: | tianjin/shanghai; |
| Tensile Strength: | 1050MPa; | The Max recovery stress: | 600 MPa; |
| Material: | Nickel Titanium Alloy and Titanium; | Certificate: | ISO9001:2000; |
| AF: | -10℃-78℃; | Packaging Detail: | 1. soft paper inside with woodencase outside shape memory alloy high force nitinol spring; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Ti Content (%): | 45%; |
| Product name: | nitinol spring; | Style: | Coil; |
| Model Number: | Seabird-048; | Sample: | Avaliable; |
| Place of Origin: | China; | Usage: | Automobile;Auto;Car.bathroom; |
Nickel Titanium Specification
Nickel Titanium (also known as Nitinol or NiTi) is in the unique class of shape memory alloys. A thermoelastic martensitic
phase transformation in the material is responsible for its extraordinary properties.
Nitinol alloys are typically made of 55%-56% Nickel and 44%-45% Titanium. Small changes in composition can significantly
impact the properties of the material. There are the primary categories of Nitinol.
The first, known as "SuperElastic", is characterized by extraordinary recoverable strains and resistance.
The second category, "Shape Memory" alloys, is valued for the Nitinol's capacity to recover a pre-set shape when heated above its transformation temprature. The first category is often used for orthodontics (braces, wires, etc) and eyeglasses. SZNK makes shape memory alloys, which are primarily useful for actuators, used in many different mechanical devices.
ASTM F2063-05 Q/XB1516 Customer specified or Industry Standard
Alloy | Chemical composition | Af (Fully annealed) | Min. elongation to failure [%] | Max. Residual elongation after 6% strain [%] | Main Applications | Specifications | |
Superelastic Ni-Ti alloy | TiNi-SS | Ti-50.8at% | -5°C ± 5°C. | 10 | 0.1 | Eyeglass Frames, Cellular Phone Antennae, Bra Underwire | Q/XB1516.2 Q/XB1516.2 |
TN3 TNC | TiNiVAl TiNiCr | -40°C ~50°C | 10 | 0.1 | |||
Body temperature Ni-Ti alloy | TiNi-YY | Ti-50.7at%Ni | Functional Af=33 ± 3 | 15 | 0.1 | Implantable devices,Bone staples Vascular Stents | ASTM 2063 |
Ti-Ni-01 | 55.6~55.8 wt%Ni | 20 - 40 | 15 | 0.1 | Guide wires, Stents Orthodontic Arches | Q/XB1516.1 | |
High temperature Ni-Ti alloy | Ti-Ni-02 | 54.8~55.5wt%Ni | 45 - 95 | 10 | 0.1 | Implantable active devices, Surgical tools, Thermostats Coffeepots | Q/XB1516.1 |
TiNiCu | TiNiCu | As-Ms ≤ 5 | 10 | 0.1 | |||
Quality Assurance
1. According to globally recognized standard,for example ASTMF.ASTM ASTMB provide third-part inspection reports,ISO Quality Management System .
2. Visual inspection to check surface quality ,ensuring without flaw.black dot and other defects.
3. We also take Mechanics Performance Testing, Particle size test microscope ,Powder density tester, pressure testing machine,scanning electron microscope ultrasonic flaw detector by our company before shipping .
4. Chemical composition making sure all chemical components can satisfy customers demands.
5. Mechanical property testing making sure all Nitinol products have satisfying feature before delivery.
Q: Are you a trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer the samples for free and freight afforded by buyer.
Q: How can you ensure the products quality?
A: All products are manufactured according to ASTM standard, and we make 100% inspection before shippment also we can prodide the MTC Test Certification.
Q: Can you print our logo on the products?
A: Yes, we make it by laser printing and carving.
Q: How can i make a quote for your company?
A: Please let me know the Material.Size.Quantity.
Q: What is your terms of payment ?
A: T/T, L/C
For stocks, 100% in advance;
For futures delivery, 30% in advance, the balance before shipping.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. It is 15-30 days to do new batch.
Q: Can you guarantee the prompt delivery?
A: Yes, please don't worried it. We have professional production team to work 24 hours one day.
Please don't hesitate to contac us if you like to know more. Thank you!
-
