350 Liter high quality hydraulic diesel concrete mixer price

Product details
Reclaiming capacity:350L;Year:2010;
Place of Origin:Henan China;Charging Capacity:560L;
Packaging Detail:standard export package for concrete mixers with diesel engine;Port:Qingdao, Shanghai, Guangzhou ports;
Discharge Way:free fall;Weight:2400kg;
Outline Dimension:2766mm*2140mm*3170mm;Condition:Used;
Brand Name:Pioneer;Speed of Mixing Drum:14rpm;
Mixing Power:15HP;color:as your request;
Make:pioneer;Water Supply Mode:Pump;
Motor Power:diesel engine 15HP;Payment Terms:L/C,D/A,D/P,T/T;
Working Cycle Period:60s;Supply Ability:30 Unit/Units per Month;

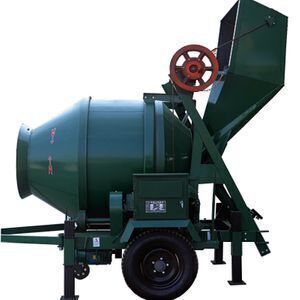

JZD350 Self-drop Cement Mixer Stirring Machine For Sale



Product Description



JZD series diesel portable concrete mixer has several characteristic including production efficiency loftily,mixed quality well,appearance gloriously,move convenience and so on.So that is advanced machine.

JZD350 diesel engine powered concrete mixer is to mix when turning clockwise, and discharge when turning anticlockwise and can mix plastic and semi-stiff-consistency concrete.The diesel dynamic concrete mixer is a double

cone reverse discharge mixer; the drum is driven by a gear; during the working process, the forward rotation and the reverse rotation are mixed. It can mix plastic and semi-dry hard concrete. Applicable to ordinary construction

sites, roads, bridges and various pre-product factories, solving the problem of insufficient power on construction sites, roads and bridges.

1. Adding a water pump for water circulation between water tank and water radiator, keep the water temperature to be stable.

2. Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.

Advantages



diesel engine powered concrete mixer

Diesel Engine
Discharging Volume: 350L
Feeding Capacity: 560L
Productivity: 10-14CBM





Technology



ModelJZD350 Self-drop Cement Mixer Stirring Machine For Sale
Charging capacity560L
Reclaiming capacity350L
Productivity20-30m³/min
Motor powerWater-cooled diesel engine 15HP
Mixing power15HP
Rotation speed of the drum14rpm
Water supply modePump
Power of the water pump1.1kw
Hydraulic or noyes
Working cycle period14rpm
Thickness of Drum6-8mm
Maximum aggregate sizes60mm
Span 1900mm
Lift time of feedingAbout 7 seconds
Max speed of driving10-15km/h
Discharging wayFree fall
Entire machine weight2400kg
Dimension( L*W*H)2766mm×2140mm×3170mm
ColorYellow (or as your wish)
Supply ability30 sets per month
Packing detail2pieces/20’container
GuaranteeHalf of year
Type of the tires

650-16 Pneumatic wheels

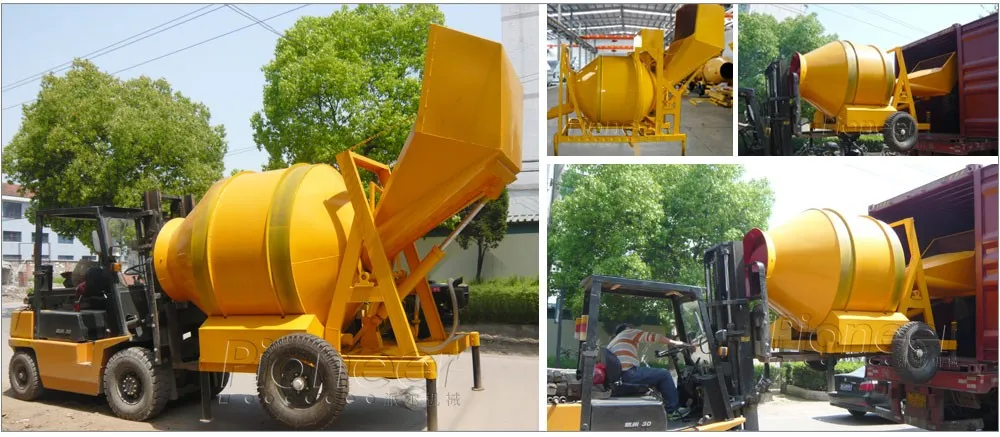

Packaging & Shipping
