API 11AX valve ball and seat

Product details
Standard or Nonstandard:Standard;Product name:Low Pressure and Oil Usage seating rod pump ball and seat;
Power:Electric;Usage:Oil;
plastic ball valve:ball valve dn15;Local Service Location:Peru,Indonesia,India,Mexico,Russia,Australia,Colombia,Kazakhstan,Uzbekistan,Tajikistan;
Package Type:Low Pressure and Oil Usage seating rod pump ball and seat packing: wooden case;Theory:Reciprocating Pump;
Single gross weight:0.5 KG;Showroom Location:Peru,Russia,Kazakhstan;
range:accepting OEM;Single package size:5X5X8 cm;
ball valve dn40:ball valve dn50;Applicable Industries:Energy & Mining;
Warranty:1 year;Package Preview:https://sc02.alicdn.com/kf/U55b980e878d346788f84c5d3a9038725E.jpg_640x640.jpg,https://sc01.alicdn.com/kf/U861b3b6001f244759f7f8a3c69bef7c47.jpg_640x640.jpg;
Selling Units:Single item;Application:pump parts;
ball valve seat ring:ball valve pn40;After Warranty Service:Online support,Spare parts,Field maintenance and repair service;
Product Description

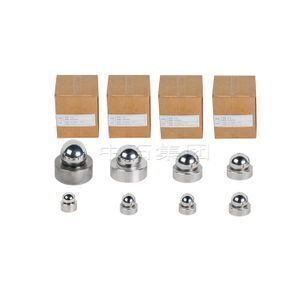

                                         Low Pressure  and Oil Usage seating rod pump ball and seat

  • We manufacture and supply the deep oil well sucker rod pumps according to the API 11AX specifications of THC, THM, TLE, RWAC, RWBC, RHAC, RHBC, TP, RHAM, RHBM, RHTM, RHTC, RWBM, RXBC, RXBM, RWTC and RWTM
  • Special pumps can be designed and manufactured such as hi-viscosity crude oil pumps, gas-proof pumps and sand-proof pumps according to the request of users
  • Key parts of the pumps are made of materials with strong corrosion resistance and good mechanical properties conditions
  • The valve balls and valve seats are made of different materials such as excellent corrosion-resisting stainless steel, tungsten carbide hardness alloy and metal ceramic
  • Materials: AISI304, AISI316, AISI420C, AISI440.
  • Symbol

    Symbol

    Hardness

    Material

    A1

    Stainless steel

    Ball:58-65HRC
    Seat: 52-56HRC

    UNS 41000–UNS 44000

    B1

    Cobalt alloy, cast

    Ball: 56-63HRC
    Seat: 50-56HRC

    Cobalt, chromium, and
    tungsten alloy

    B2

    Cobalt alloy, powder
    metal

    Ball: 53-60HRC
    Seat: 51-57HRC

    Cobalt, chromium, and
    tungsten alloy

    C1

    Tungsten carbide

    Ball: 88-89HRA
    Seat: 88-89.5HRA

    Tungsten with Cobalt
    binder

    C3

    Titanium carbide

    Ball: 89-90.5HRA
    Seat: 89-90.5HRA

    Tungsten and titanium carbide
    with cobalt binder

     <

    NO.SpecificationMaterial
    1V11-106Stellite
    2V11-125Stellite
    3V11-150Stellite
    4V11-175Stellite
    5V11-200Stellite
    6V11-225Stellite
    7V11-250Stellite
    8V11-375Stellite

    NO.
    1V11-106Tungsten carbide
    2V11-125Tungsten carbide
    3V11-150Tungsten carbide
    4V11-175Tungsten carbide
    5V11-200Tungsten carbide
    6V11-225Tungsten carbide
    7V11-250Tungsten carbide
    8V11-375Tungsten carbide

    NO.
    1V11-106stainless steel
    2V11-125stainless steel
    3V11-150stainless steel
    4V11-175stainless steel
    5V11-200stainless steel
    6V11-225stainless steel
    7V11-250stainless steel
    8V11-375

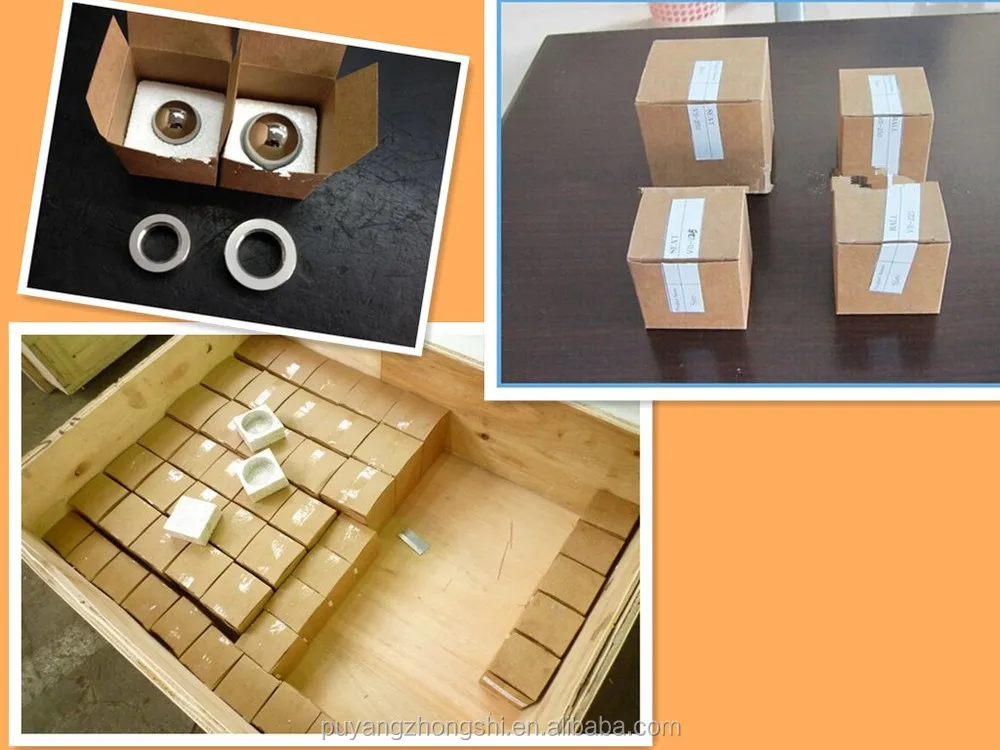

Packaging & Shipping

Low Pressure  and Oil Usage seating rod pump ball and seat packing

Our Services



We offer you valve ball and seat pre-sale services, after-sale services which including sales

 guidance, information supply & technical support, technical drawing supply,

production planning provide, production schedule provide, inspection support

and certificate provide.



Company Information



Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise

 of Central Plains oilfield branch company of SINOPEC . The company registered capital is

 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including

more than 160 technical and administrative staff . Oil machinery is our main products, the

leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas

Tree), pressure vessels, drilling solid control series products and cementing accessories. We

had attained ISO 9001 in 1998 and API Certificates in 2002

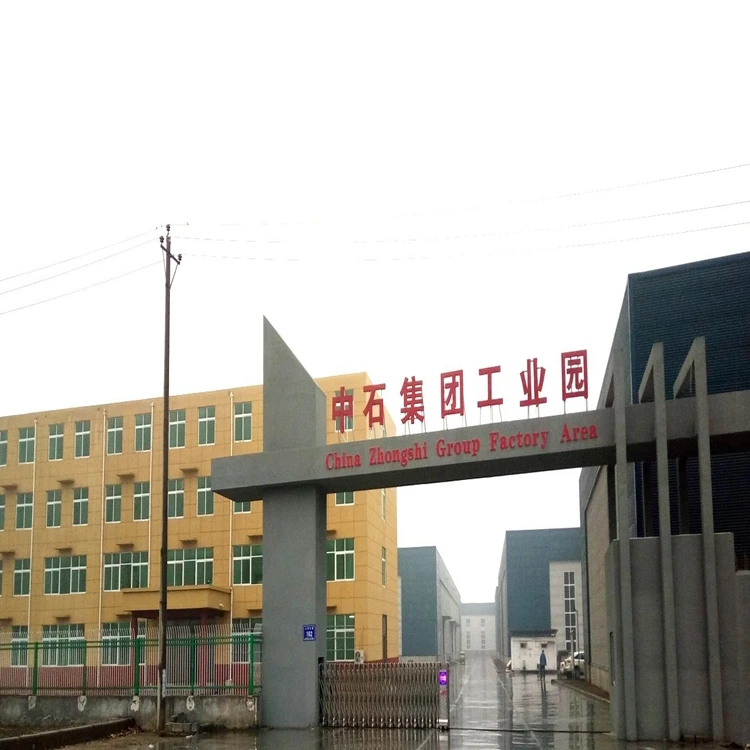

Factory



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: No, we could not offer the sample for free charge .

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
