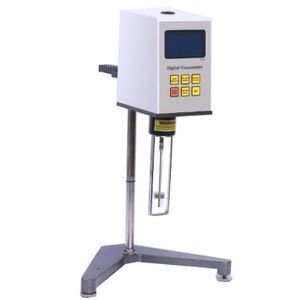

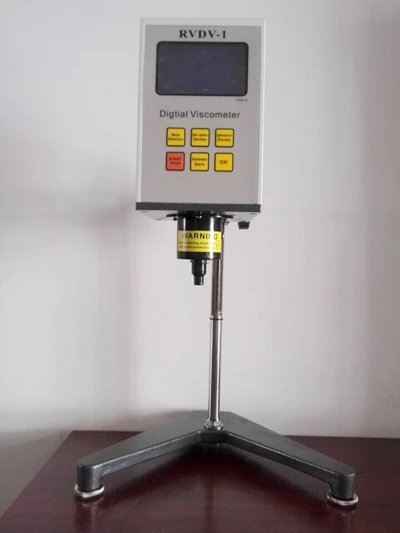

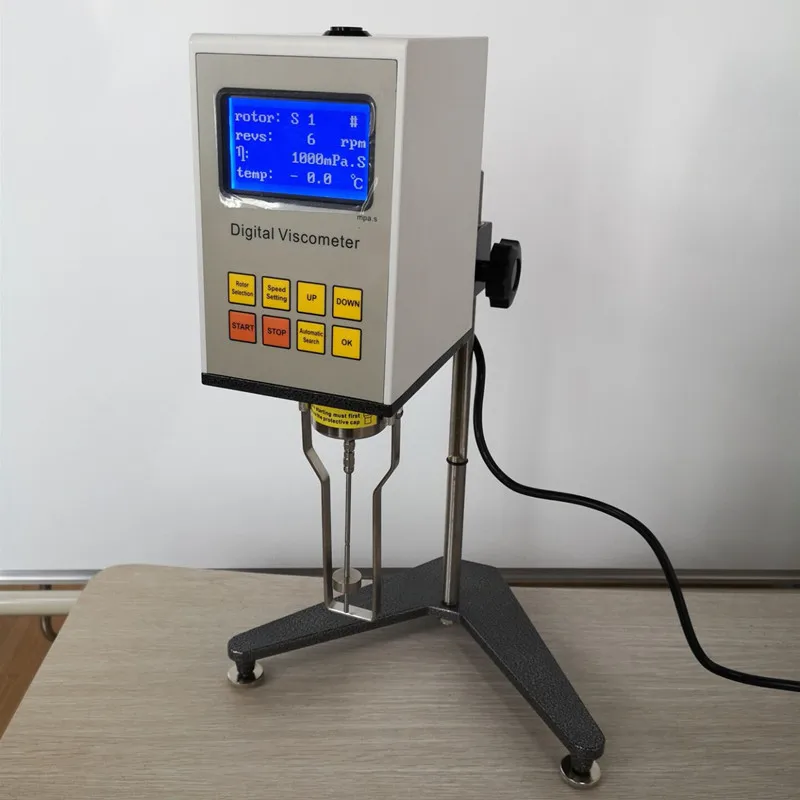

NDJ-5S 8S DV-1 laboratory digital rotational viscometer

Product details
Single package size:55X28X48 cm;Outline Dimension (mm):370*325*280 mm;
Model Number:DV-1;Selling Units:Single item;
Working Condition:Temperature 5-35℃;G.W/N.W:9kg/6.8kg;
Name:laboratory digital rotational viscometer;Packing (mm):400*360*310 mm;
Rotor Specification:1, 2, 3, 4#;Place of Origin:China;
Power:AC 220V ± 10% 50 Hz ± 10%;Package Preview:https://sc01.alicdn.com/kf/H206892f5c7de4d5cbd9e93d5f429e500v.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H4a0f14eeb5444e8bbc0bd7bd418e324fb.jpg_640x640.jpg;
Single gross weight:9 KG;Power:Electronic;
Brand Name:WANT;Package Type:aluminium box + carton box;

Product details:



This instrument is a new upgrading product ofourrotational viscometer. The adoption of advanced mechanical design technology, manufacturing process, microcomputer control technology guarantees accurate data collection. ultra-bright LCD display with blue back-light guarantees clear data display. With the microcomputer technology, it is easier to set measuring span (rotor number and rotating speed), take digital process of the data measured by sensor, and clearly display rotor number, rotating speed, viscosity value of the tested liquid and its full-scale percentage on the screen. Besides, its automatic switch is set for free selection of proper rotating speed or rotor number.





Function:



This instrument is an instrument to measure absolute viscosity of Newton liquid as well as apparent viscosity of non-Newton liquidfeatured by high flexibility, reliable test result, easy operation and beautiful appearance, which is widely applied to grease, paint, plastics, drugs,decorations, coatings and detergent. In addition, NDJ-5S/8S is also added English/Chinese interface for user's selection.





 Quotation:

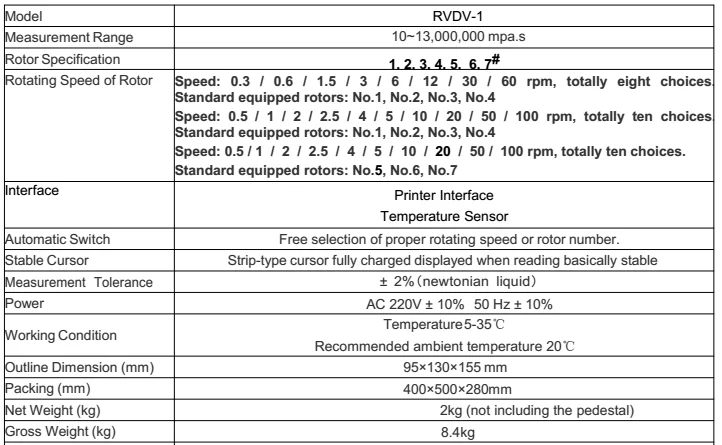

Model

NDJ-5S

NDJ-8S

DV-1

MeasurementRange

1~2×105 mpa.s

1~2×106 mpa.s

RotorSpecification

1,2, 3, 4#

Rotating Speed of Rotor

6 / 12 / 30/ 60 rpm

0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm





Interface





No





No

  1. PrinterInterface
  2. PCInterface
  3. TemperatureSensorInterface

AutomaticSwitch

free selection of proper rotating speed or rotor number.

StableCursor

Strip-typecursor fully charged displayed when reading basically stable

Measurement  Tolerance

± 2%(newtonian liquid)

Power

AC 220V ± 10%    50 Hz ± 10%



WorkingCondition

Temperature5-35℃

Relative humidity no more than 80%

OutlineDimension (mm)

370×325×280 mm

Packing (mm)

530×250×460 mm

NetWeight(kg)

6.8kg

Gross Weight (kg)

9 kg

Delivery Date (1 pc)

in 3~5 days after receiving the payment

H.S.Code

9027







NDJ-5S/NDJ-8S











DV-1

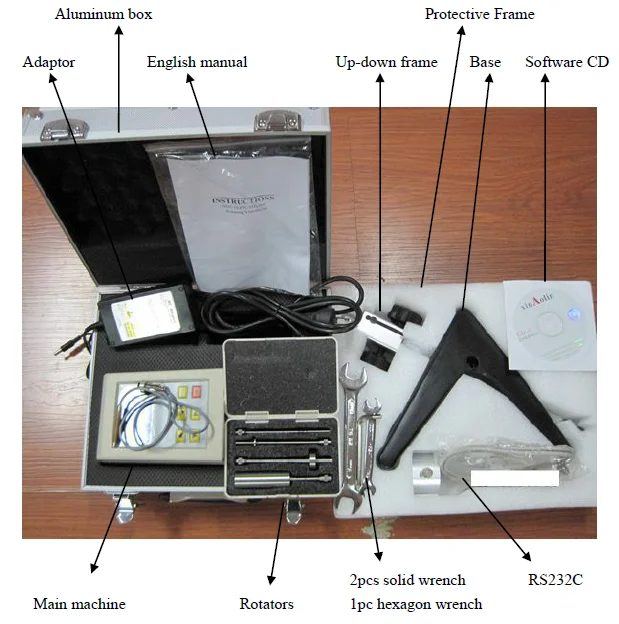

Attachments:





No. 1,2,3,4 Rotor ------------------------------------------- 1 Set

Adaptor --------------------------------------------------------1 Pc

Protection Frame ------------------------------------------- 1 Pc

Foundation Plate ------------------------------------------- 1 Pc

Up-Down Frame -------------------------------------------- 1 Set

English Manual --------------------------------------------- 1 Pc

Hexagonal Spanner --------------------------------------- 1 Pc

Solid Wrench ------------------------------------------------ 2 Pcs
