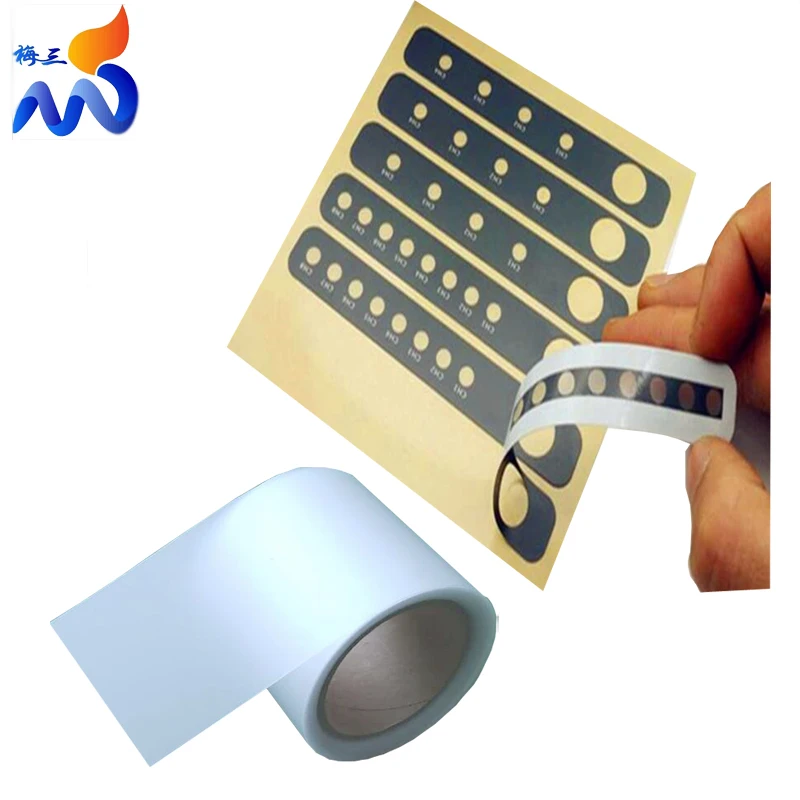

3M tape adhesive Custom embossed graphic overlay sticker panel lexan label

Supplier: Dongguan Deson Insulated Materials Co., Ltd.
Region: Guangdong, China
Contact: Ms Jennifer HO
Price: $0.10 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Place of Origin:	Guangdong China;	Single gross weight:	0.01 KG;
Electronic characteristic:	<35V ( DC ) <100mA 1W;	Control Application:	PC or PET material;
Keypad Button Material:	PC PET;	Keypad Button:	PC or PET;
Brand Name:	Lexan;	Operation Temperature:	-40 °c ~ + 80 °c;
Color:	Pantone or RAL;	Model Number:	Lexan 8B35;
Package Preview:	https://sc01.alicdn.com/kf/UTB8E919vYPJXKJkSafS761qUXXaW.png_640x640.png,https://sc01.alicdn.com/kf/UTB8s5OUv_zIXKJkSafVq6yWgXXaE.jpg_640x640.jpg;	Package Type:	Industrial Control Application membrane keyboard will be packed by paper carton( outer) and plastic bubble bag( inner);
Selling Units:	Single item;	Single package size:	0.01X0.01X0.01 cm;
MOQ:	1K;	Button:	embossed tactile,flat non-tactile;
Circuit:	flexible control panel sticker;	Design:	Custom size,color,button shape;
Application:	Home Appliance;	Life Expectancy:	flat type ≥ 500 million times;

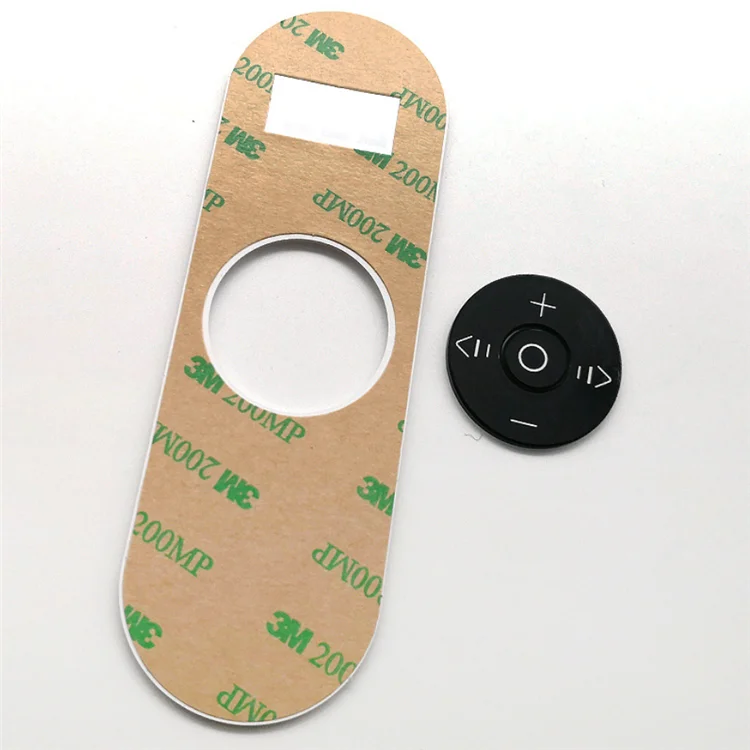

Custom embossed graphic overlay panel label sticker with 3M adhesive

Product Description

Specification for membrane keyboard :

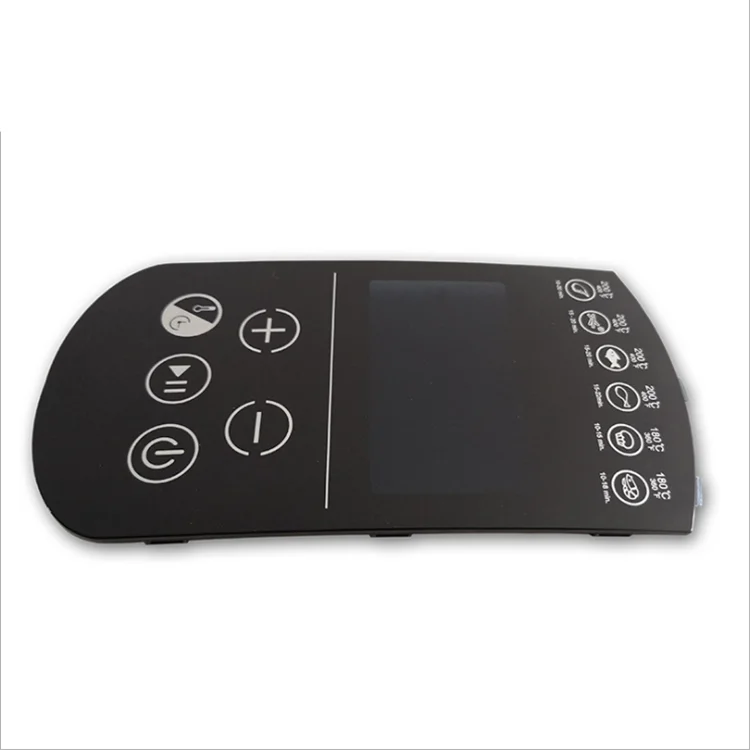

item	3M adhesive Graphic Overlay Front PET/PC Control Panel
Material	Polyesters : Autotype :AutoFlex EBG/A (Gloss and Antiglare);Autotex (Textured)Autotex UV/XE Polycarbonates: GE Products:8010;8B35;Lexan( Hard Coated with various Gloss Levels )
Thickness	.002 to .060 in
Finishes	Glossy, frosted or matte surface
Printing	Silk-screen printing and digital print
Resistances	Heat (-40 to 275 °F)
Actuation Life	200,000 (Polycarbonate) 2,000,000 (Autotex)
SelectiveTexturing	LCD Displays ;LED Windows
Maximum size	a.LengthWidth: Digital: 120" 96"; Screen Print : 46" *30" b.Embossing Depth):.020 to .040 in
Adhesive	3M467( .002 )/3M468( .005 )/3M9448
Tolerance (+/-)	Print to Cut: .010 in; Dimensions: .010 in
Industry Standards	ISO 9001:2008
Graphics File Formats	CAD/CDR/AI

The main properties of custom design electronic membrane keypad:

1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.

High-performance Membrane buttom:

1.Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switches design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100 million times.
6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes.

Type of membrane keyboard :
