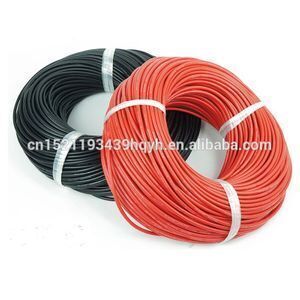

Conductor: | Tinned copper; | Product name: | Silicone Wire; |
Color: | Red, black, blue, yellow,green and orange; | Conductor Material: | Copper; |
Place of Origin: | Guangdong Shenzhen; | Certification: | ROHS; |
Supply Ability: | 100000 Meter/Meters per Week; | working temperature: | -60°C~+200°C; |
Rated Voltage: | 600V; | Insulating material: | silicon rubber; |
Application: | Electric conduction; | Model Number: | 6-30AWG; |
Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram,Paypal; | Test voltage: | 2000V; |
Place of Origin: | Guangdong China; | Conductor Type: | Solid; |
Insulation Material: | Rubber; | Port: | Shenzhen; |
Type: | Insulated; | Application: | Electric conduction; |
Packaging Detail: | Carton; | Brand Name: | JXY; |
"Quality first, customer first" is our development policy, to provide customers with one-stop product supply program, and constantly improve our products and service system is the mission of the company.
Specification table:
Specifications (AWG) | Copper wire shares (compos.NO./mm) | Insulation thickness (mm)
| Diameter (mm) | Overall diameter (mm) | Conductor resistance (Ohm/km) | Sectional area (mm2) | Carrying current (ampere) | packing (M/coils) |
6AWG | 3200/0.08mm | 1.65 | 5.2 | 8.5 | 1.21 | 16.08 | 300 | 100 |
8AWG | 1650/0.08mm | 1.2 | 4.4 | 6.3 | 4.1 | 8.29 | 190 | 100 |
10AWG | 1050/0.08mm | 5.28 | 2.92 | 5.5 | 6.3 | 5.3 | 140 | 100 |
12AWG | 680/0.08mm | 3.42 | 2.41 | 4.5 | 9.8 | 3.4 | 88.4 | 100 |
14AWG | 400/0.08mm | 2 | 1.85 | 3.5 | 15.6 | 2.07 | 55.6 | 200 |
16AWG | 252/0.08mm | 1.3 | 1.47 | 3 | 24.4 | 1.27 | 35 | 200 |
18AWG | 150/0.08mm | 0.75 | 1.13 | 2.3 | 39.5 | 0.75 | 22 | 200 |
20AWG | 100/0.08mm | 0.5 | 0.92 | 1.8 | 62.5 | 0.5 | 13.87 | 400 |
22AWG | 60/0.08mm | 0.3 | 0.72 | 1.7 | 88.6 | 0.33 | 8.73 | 400 |
24AWG | 40/0.08mm | 0.2 | 0.58 | 1.6 | 97.6 | 0.2 | 5 | 400 |
26AWG | 30/0.08mm | 0.15 | 0.44 | 1.5 | 123 | 0.14 | 3.5 | 400 |
28AWG | 16/0.08mm | 0.08 | 0.32 | 1.2 | 227.2 | 0.08 | 1.25 | 100 |
30AWG | 11/0.08mm | 0.055 | 0.3 | 0.8 | 331 | 0.06 | 0.8 | 100 |
Description :
2AWG:Red Black
4AWG:Red Black
6AWG:Red Black Blue
8AWG:Red Black Blue White Yellow Green Orange
10AWG:Red Black Blue White Yellow Green Orange
12AWG:Red Black Blue White Yellow Green Orange
13AWG:Red Black Blue White Yellow Green Orange
14AWG:Red Black Blue White Yellow Green Orange
16-30AWG:Red Black Blue White Yellow Green Orange
