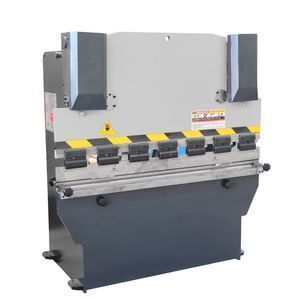

Pacific E21 Small Press Brake Machine WC67Y Hydraulic Bending Metal Machine Price

Product details
Nominal Pressure (kN):300 kN;Product name:bending metal machine;
Showroom Location:Egypt,Canada,Turkey,Italy,Germany,Philippines,Brazil,Saudi Arabia,Pakistan,Mexico,Morocco,UAE,South Africa;Application:Stainless Plate Bending;
Color:Customized;Year:/;
Extra Services:Cut To Length;Machine Type:Synchronized;
Package Preview:https://sc02.alicdn.com/kf/HTB1bBtnKQPoK1RjSZKbq6x1IXXaK.jpg_640x640.jpg;Brand Name:Wanli;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Throat Depth:200mm;
Automation:Automatic;Keyword:small press brake;
Throat Depth (mm):300 mm;Condition:New;
Main motor:3kw;Material / Metal Processed:Brass / Copper,Stainless Steel,ALLOY,Carbon Steel,Aluminum;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;Motor Power (kw):3 kw;
Automatic Level:Fully Automatic;Warranty:1 year;
Key Selling Points:Easy to Operate;Certification:ISO 9001:2000;
Place of Origin:Anhui China;Item:Press Brake Bending Marchine;
Single gross weight:1,400 KG;Single package size:162X80X160 cm;
Slider Stroke (mm):125 mm;Width of Working Table (mm):1600 mm;
Length of Working Table (mm):1600 mm;Package Type:Pacific E21 Small Press Brake Machine WC67Y Hydraulic Bending Metal Machine Price Plastic Film;
Name:Hydraulic Press Brake;Weight (KG):1400;
Usage:Metal Sheet Bending;Controller:E21 CNC Controller;
Selling Units:Single item;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Dimension:/;Local Service Location:Canada,Turkey,United States,Italy,France,Germany,Peru,Saudi Arabia,India,Mexico,Russia,Spain,Malaysia,Australia,Argentina,South Korea,Chile,UAE,Sri Lanka,Romania,South Africa,Ukraine;

Pacific E21 Small Press Brake Machine WC67Y Hydraulic Bending Metal Machine Price

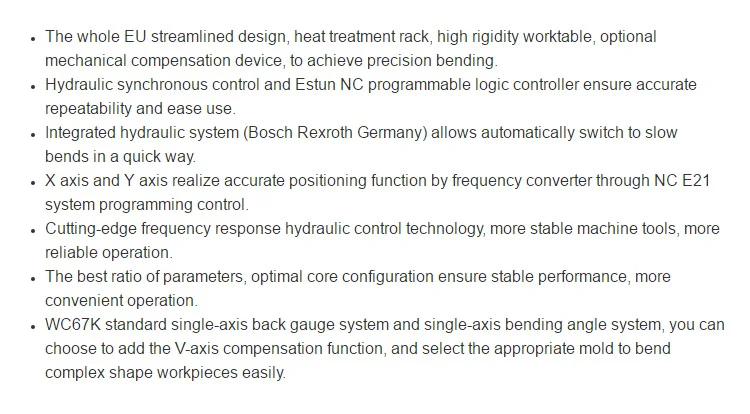

Main Features:

1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

2. Pacific PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.

3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.

4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.

5. Ball screw and line guide was designed to improve precision.

6. E-Z fast wedge clamping was designed to change tools quickly.

7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.



Standard Equipment:

 1.System Intermediate Upper clamps with Anti Wedges

 2.Plate Support Arms

3. Powered Depth Axis

4. Backstop

5. Light guards

6. Top and Bottom Tooling

7. Estun E21 NC control

8. Germany Bosch-Rexroth Hydraulic

9. Telemecanique/SchneiderElectrics

10. Hydraulic and Electrical overload protection

11. Squaring Arm and Front Support Arms

12. Delta inverter with ball screw and polished rod with 0.05 mm accuracy.

13. Side guard is standard meeting CE regulations.

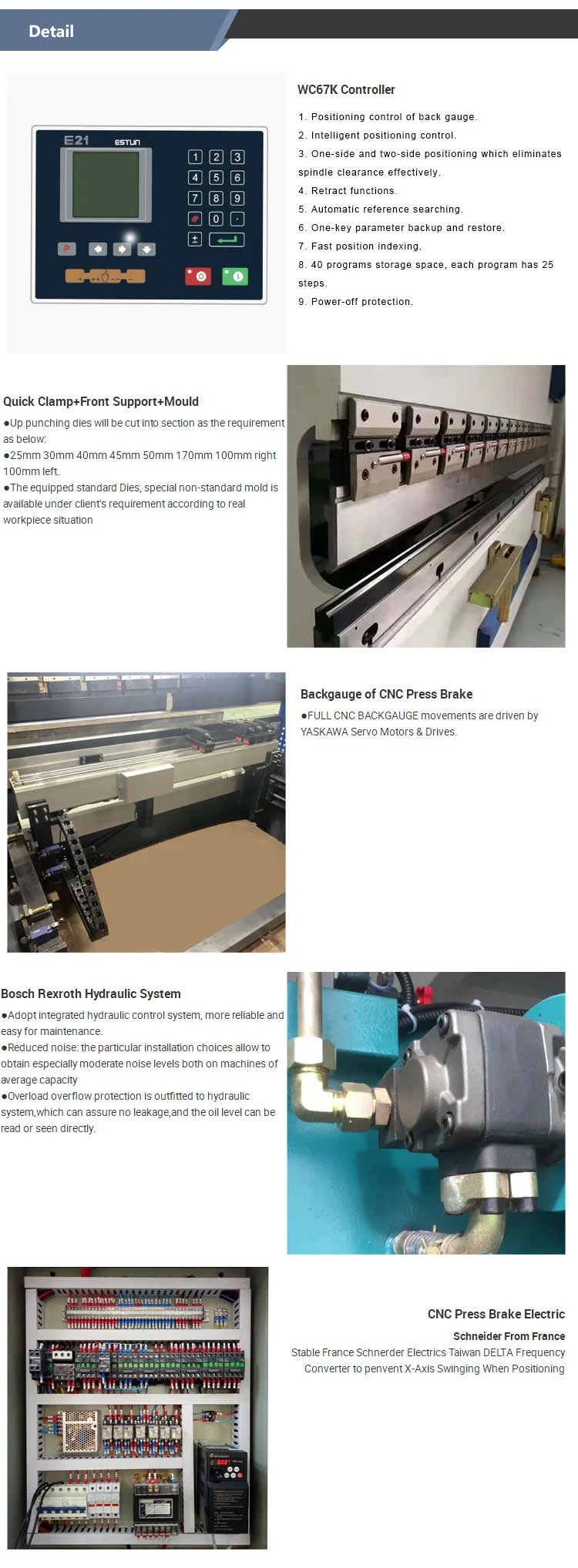

Estun E21s NC Press Brake Control system:

1. Monochrome LCD Box Panel.

2. Integral factor programmable freely

3. Automatic positioning control

4.Spindle allowance offset

5.Internal time relay

6.Stock counter

7.Backgauge position display, resolution in 0.01mm

The best bending results You can bend longer and deeper parts with standard AC/MB7-Bend Series.
