Universal Car AM FM Radio Mast Power Electric Automatic Antenna Aerial Kit

Fitment :

FOR Mercedes-Benz S430 All 1996-2005

FOR Acura NSX All 1991-2001

FOR Jeep Grand Cherokee All 1984-1998

FOR Pontiac Firebird All 1982-2001

FOR Cadillac Eldorado All 1960-1999

FOR Toyota Camry All 1985-2001

Features:

Brand new & high quality

Full automatic after you connect it to the power cable

Easily operated

Booster power

AM/FM radio received

This kit comes with power cable wiring, antenna cable connector, support mounting hardware, main antenna assembly (the motor and mast), and it is all you need for the replacement.

Specification:

Section: 5

Capacity: 80+-3pf

Voltage: DC12V

Electrical current: 0.8Amp

Material: stainless steel of the body, steel of the amount

Cable length: 1200mm

Extend: 750mm

Under fender: 325mm

Fender mounting diameter: 15mm

Main color: black

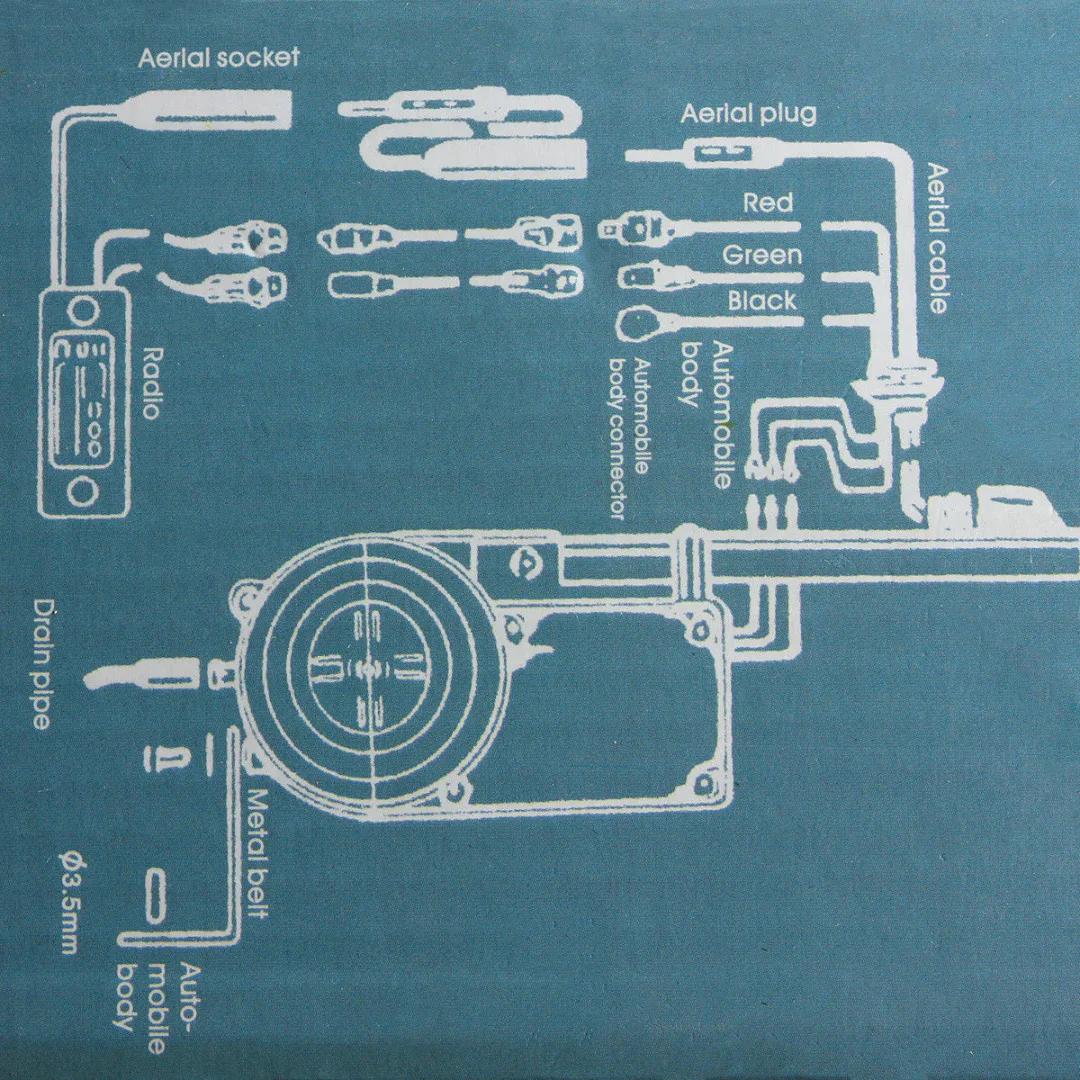

How to wire:

Red line: positive, black line: negative, green line: there are two connections methods, one is connected to the positive , the antenna can rise/fall with the power on and off; the other connection is connects to the control line on the customer's car and connects to the switch on the car,the antenna can control the rise and fall at any time.

Package included : 1 x Stainless Steel Antenna Kit
