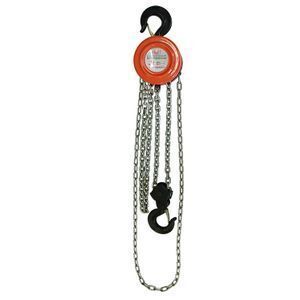

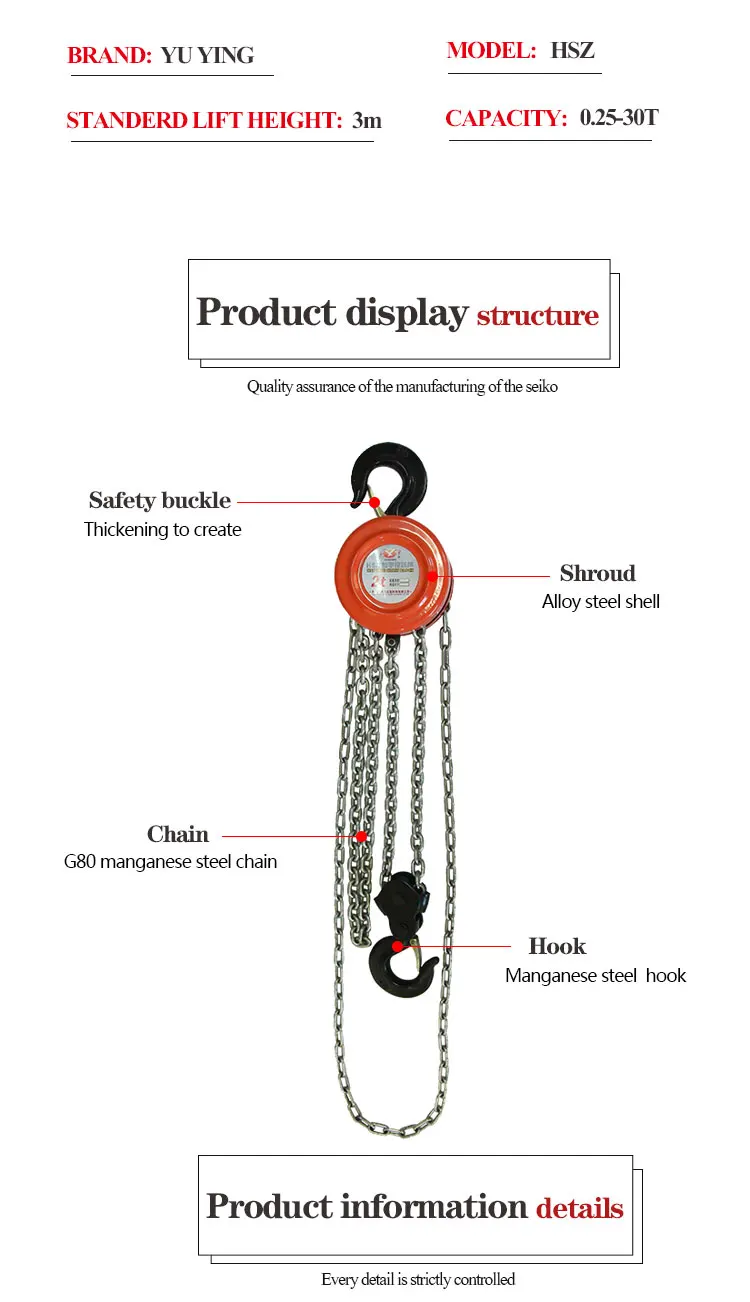

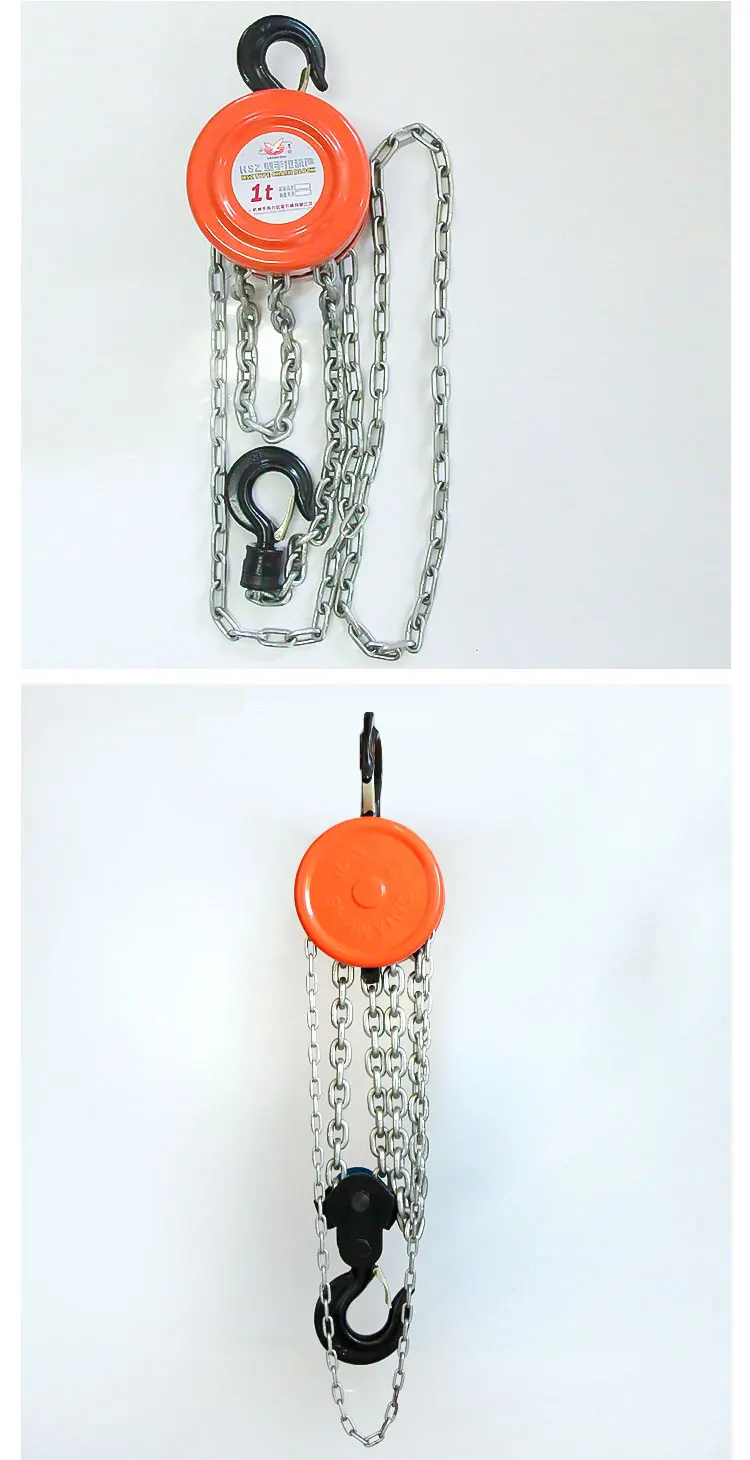

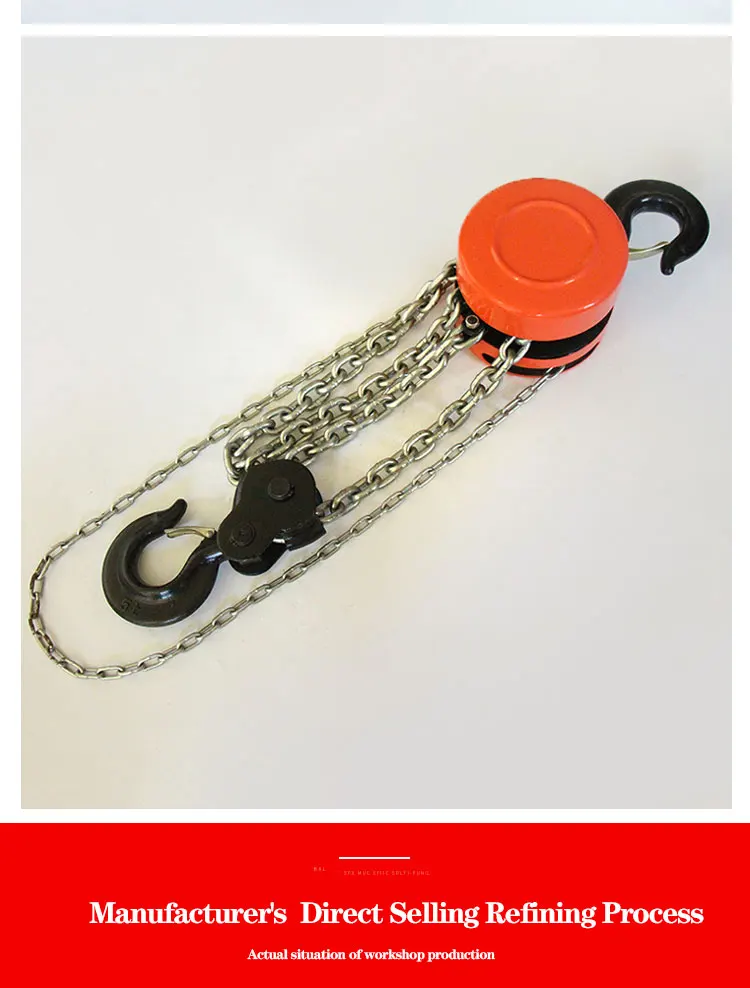

Product name: | Chain Hoist; | Maximum Lifting Weight: | 50ton; |
Standard Lifting Height: | 3m/6m/9m/12m; | Packing size: | 33*25*19/30*24*18cm/33*25*19cm/38*30*20cm/62*50*28cm; |

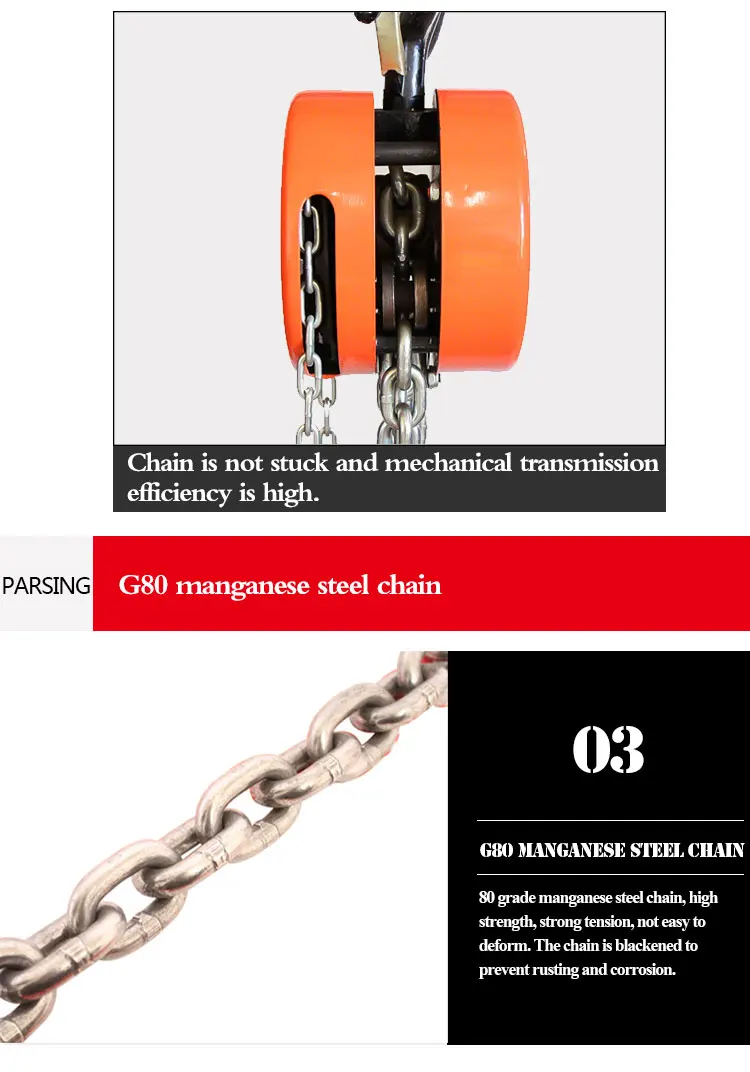

Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Load Chain Material: | Alloy Steel G80; |
Supply Ability: | 2000 Piece/Pieces per Month; | Model: | HSZ; |
Type: | HSZ; | Chain material: | G80 Manganese Steel; |
Model Number: | HSZ; | Port: | Tianjin or anyport of China; |
Place of Origin: | Hebei China; | Packaging Detail: | carton,wooden case or pallet; |
Capacity: | 0.5-30T; | Load chain: | G80; |
Capacity T | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | |
Lift height m | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | |
Test load KN | 3.1 | 6.13 | 12.25 | 19.6 | 24.5 | 39.2 | 61.25 | 122.5 | 196 | 245 | 392 | |
Pulling force to full load N | 114 | 210 | 330 | 390 | 330 | 390 | 420 | 450 | 475 | 450 | 475 | |
Min.distence between hooks mm | 230 | 280 | 320 | 390 | 410 | 485 | 600 | 820 | 920 | 1040 | 1390 | |
No.of load chain fall lines | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | 12 | |
Dimensions | A | 100 | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 415 | 580 | 705 |
B | 110 | 107 | 130 | 147 | 130 | 147 | 168 | 168 | 208 | 200 | 485 | |
Hook opening Dimensions | C | 15.5 | 23 | 27 | 31 | 35 | 39 | 45 | 57 | 67 | 75 | 75 |
C1 | 18 | 26 | 30 | 34 | 38 | 42 | 48 | 65 | 65 | 85 | 85 | |
Net weight | kg | 3.5 | 7 | 10 | 15 | 14 | 24 | 36 | 75 | 117 | 164 | 400 |
Gross weight | kg | 4 | 10 | 13 | 20 | 18 | 30 | 45 | 89 | 170 | 214 | 520 |
Cartoon size | cm | 19×15×12 | 30×25×17 | 30×25×19 | 33×30×22 | 33×30×20 | 40×30×24 | 50×33×25 | 60×50×27 | 75×48×77 | 75×45×77 | 100×999×90 |
Extra weight per meter extra lift | kg | 0.54 | 1.5 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 14.5 | 19.4 | 29 |
BAODING CITY YUYING HOISTING MACHINE PRODUCE CO.,LTD

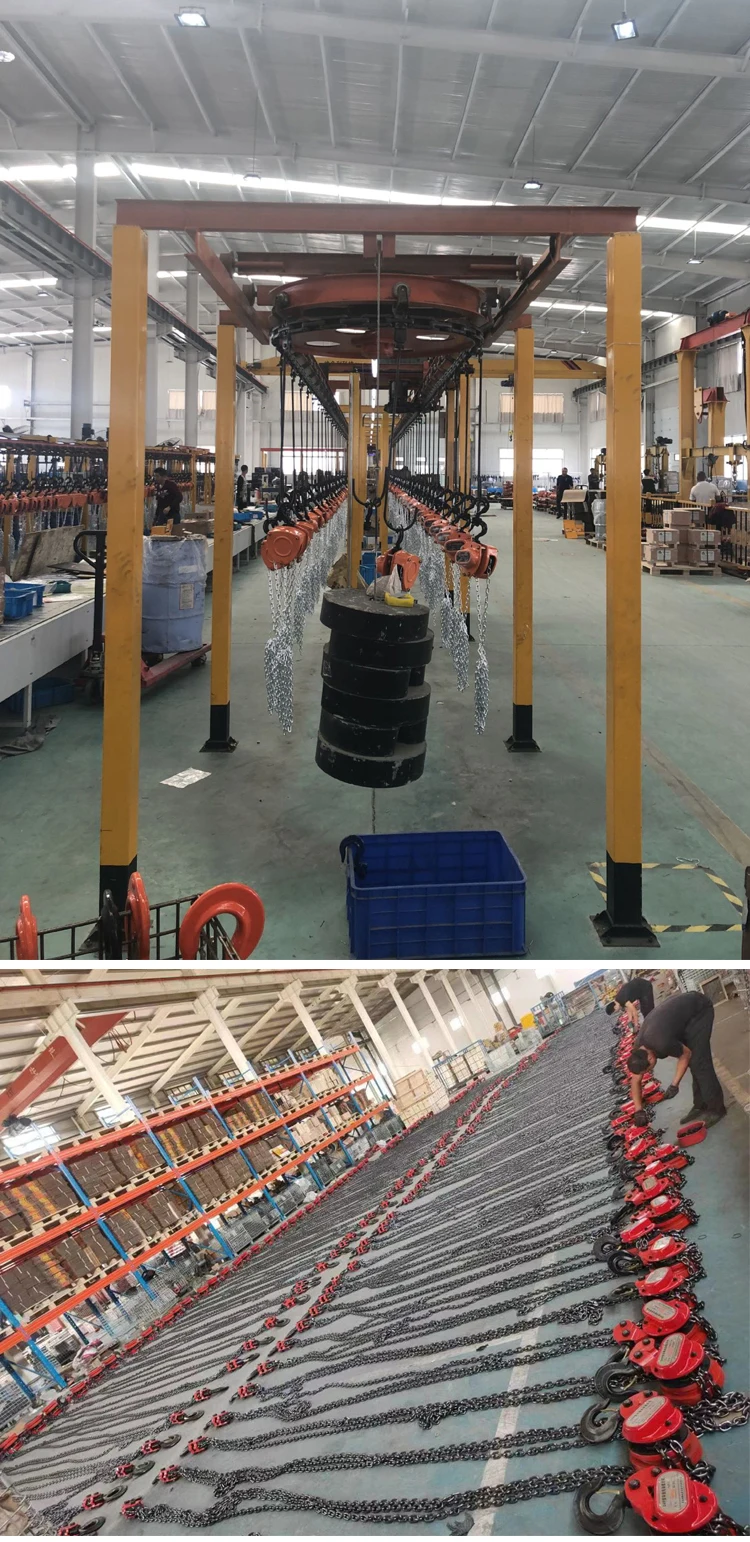

We are a professional manufactuer of all types of hoisting machinery (More than 10 years). Such as manual and electrical tackles,HSZ,HS-C,VITAL series chain blocks,HSH,HSH-CK,VITAL series lever block,CD1 electric hoist,endless electric chain block,fasteners,pulleys,etc.We have intact detection maeans of physics and chemistry. Annual production is 200.000 sets. Our Brand is "SHANYING" and we would like to accept your brand for OEM production.We already been sold to more than 30 countries. All of our products with CE&GS approved.
Packing Method | carton or wooden case or we can make according to customer's request |
Shipping Delivery | (1)By sea to your nearest port (2)By air to your nearest airport (3)By express (DHL,UPS,FEDEX,TNT,EMS)to your door |
1.The Mini Order?
We can accept only one piece.
