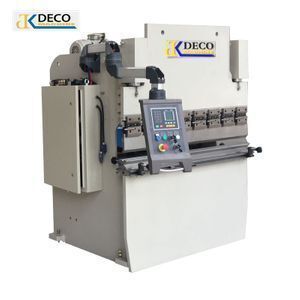

WC67K 30T1600 hydraulic steel plate press brake machine

Supplier: Nanjing Deco Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Andy Z
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Pump:	Sunny;	Warranty:	3 years;
Packaging Detail:	Seaworthy Packing, It will be carried as a whole, with book for use and installation.;	Automation:	Automatic;
Dimension:	220012001900;	Port:	Shanghai Port;
Machine Type:	Synchronized;	Slider Stroke (mm):	80 mm;
Nominal Pressure (kN):	300 kN;	Machine Type:	Press Brake;
Motor Power (kw):	5.5 kw;	Product name:	steel plate press brake machine;
backgauge:	20-600mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
control system:	E21/DElEM/CYBELEC;	voltage:	220V/380V/415/440V/customized;
Key Selling Points:	Competitive Price;	Place of Origin:	Jiangsu China;
Brand Name:	DECO;	Condition:	New;
Certification:	ce;	main motor:	Siemens;
electric component:	Schneider;	Weight (KG):	1100;
Extra Services:	End Forming;	Length of Working Table (mm):	1600 mm;
Throat Depth (mm):	230 mm;	Raw Material:	Sheet / Plate Rolling;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Printing Shops,Construction works ,Energy & Mining;	Supply Ability:	100 Set/Sets per Month press brake;
Material / Metal Processed:	Brass / Copper,Stainless Steel,Carbon Steel,Aluminum;	Automatic Level:	Fully Automatic;
Width of Working Table (mm):	150 mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
After-sales Service Provided:	Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support;

WC67K 30T1600 hydraulic steel plate press brake machine

1. Main Features:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.

3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment

5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety

2. Standard Equipment:

-Estun E21NC control System

-Powered Depth Y-axis&Back gauge X-axis

-DELTA Inverter controlled back gauge

-HIWIN Ball screws & Polished rod with 0,05mm accuracy.

-Plate Support Arms

-Germany Bosch-Rexroth Hydraulic

-Germany EMB Tubing connector

-Germany Siemens Main Motor

-Tele mecanique/Schneider Electrics

-Hydraulic &Electrical overload protection

-Top and Bottom Tooling(86°,R0.6mm)

-Safety Standards(2006/42/EC)

3. Safety Equipment:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

-Front finger Protection(Safety light curtain)

-South Korea Kacon Foot Switch(Level 4 of safety)

-Back metal safe fence with CE standards

-Safety relay with Monitor the pedal switch and safety protection

4. Estun E21 NC Control system:

-Back gauge and block control

-Control for general AC motors,frequency inverter

-Intelligent positioning

-Stock counter

-Holding/decompression time setting

-Program memory of up to 40 programs Up to 25 steps per program

-One side positioning

-Retract function

-One key backup/restore of parameters

-mm/inch

-Chinese/English

More details photos :

workshop and others:

FAQ

1. How about your machine quality? We are worry about the quality.

RE: DECO is a mature brand in CHINA,through our 61 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction

2. Whether the machine price can be more discount?

RE: 1.DECO always provide high quality machine, as we know, oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE: 2. Actually DECO also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines. We welcome your negotiate with us and get a good satisfaction.

3. How about your manufactory in China?

RE: DECO located in Nanjing City, Jiangsu province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.
